A Comprehensive Guide to Data Center Design Fundamentals Of JN0-1301 Exam

Embarking on the journey to achieve the Juniper Networks Certified Specialist in Data Center Design (JNCIS-DC) certification is a significant step for any network professional. The corresponding examination, designated as JN0-1301, serves as the gateway to validating your skills in this critical domain. This certification is designed for experienced networking professionals with intermediate knowledge of data center design, theory, and best practices. The JN0-1301 exam rigorously tests a candidate's understanding of data center network architecture, components, and the Juniper Networks technologies used to build modern, scalable, and resilient data center environments. Passing this exam demonstrates a thorough grasp of the principles that underpin effective data center solutions. It signifies that you possess the requisite knowledge to design robust networks capable of meeting the demanding needs of today’s enterprises and service providers. This series will provide a deep dive into the core concepts you need to master.

The Evolution of the Modern Data Center

The data center has transformed dramatically over the past two decades. Initially, these facilities were simple, monolithic structures housing mainframe computers. As technology progressed, they evolved into complex ecosystems supporting client-server applications. The rise of virtualization, cloud computing, and big data has fueled the most recent and profound evolution. Traditional three-tier architectures, characterized by distinct access, aggregation, and core layers, struggled to keep pace with the changing traffic patterns. These older designs were optimized for north-south traffic, which flows into and out of the data center. However, modern applications, especially those built on microservices, generate immense amounts of east-west traffic, which moves between servers within the data center. This fundamental shift demanded a new architectural approach. The JN0-1301 curriculum emphasizes understanding this evolution as it provides the context for why modern fabric architectures are essential. A grasp of this history is crucial for making informed design decisions that align with current and future application requirements.

Fundamental Data Center Design Principles

At the heart of the JN0-1301 exam are the core principles of data center design. These principles guide every architectural decision and ensure the final infrastructure is scalable, resilient, flexible, and secure. Scalability is the ability to grow the network gracefully, adding capacity without requiring a complete redesign. This is often achieved through modular, repeatable building blocks. Resilience, or high availability, ensures that the network remains operational even in the face of component failures. This involves eliminating single points of failure through redundancy at the device, link, and protocol levels. Flexibility refers to the network's capacity to adapt to new applications, technologies, and business requirements. It involves using open standards and programmable interfaces to avoid vendor lock-in and enable automation. Security is no longer an afterthought but a foundational element. A well-designed data center incorporates security measures at every layer, from the physical perimeter to the application workloads, to protect against a wide range of threats. These four pillars are interwoven throughout the JN0-1301 exam objectives.

Exploring Data Center Tiers and Standards

To ensure reliability and availability, data centers are often classified into tiers based on standards developed by organizations like the Uptime Institute. These tiers, ranging from Tier I to Tier IV, provide a framework for assessing a data center's infrastructure in terms of redundancy and fault tolerance. A Tier I data center has a single path for power and cooling and no redundant components, offering basic protection. A Tier IV data center, on the other hand, is completely fault-tolerant, with multiple, independent, and physically isolated systems that provide redundant capacity. For the JN0-1301 exam, it is important to understand what these tiers represent. While network designers may not be responsible for the power and cooling systems, the network architecture must align with the overall tier rating of the facility. For instance, designing a network with single points of failure in a Tier IV facility would be a critical oversight. A solid understanding of these industry standards provides a holistic view of the data center environment.

Key Components of a Juniper-Based Data Center

A comprehensive understanding of the Juniper Networks product portfolio for the data center is a prerequisite for success in the JN0-1301 exam. The QFX Series switches are the cornerstone of Juniper's data center solutions, providing high-density, low-latency platforms for building leaf-spine fabrics. The QFX5000 series switches are commonly deployed as leaf devices, offering flexible port configurations. The QFX10000 series modular switches are often positioned in the spine layer, providing high-capacity fabric aggregation. For security, the SRX Series firewalls offer next-generation firewall capabilities, whether as physical appliances or virtualized firewalls (vSRX) for protecting east-west traffic. The MX Series routers are typically used for Data Center Interconnect (DCI) and edge routing functionalities. Finally, management and automation are handled by tools like Junos Space and Contrail, which provide orchestration and policy control. Familiarity with the roles and capabilities of these key product families is essential for answering design-related questions on the exam.

Understanding Traditional Network Architectures

Before one can fully appreciate the benefits of modern data center fabrics, it is crucial to understand the limitations of the architectures they replaced. The traditional three-tier hierarchical model, consisting of core, aggregation (or distribution), and access layers, served enterprise networks well for many years. The access layer provided connectivity to end devices. The aggregation layer aggregated traffic from the access layer and provided policy enforcement. The core layer provided high-speed packet switching between aggregation blocks. This design, however, relied heavily on protocols like the Spanning Tree Protocol (STP) to prevent Layer 2 loops. STP achieves this by blocking redundant paths, which results in underutilized bandwidth and suboptimal traffic flows. As data centers grew and east-west traffic patterns became dominant, the limitations of this model became increasingly apparent, leading to higher latency and complex management. The JN0-1301 exam expects candidates to be able to articulate these specific drawbacks.

The Shift Towards Leaf-Spine Architecture

The leaf-spine architecture, also known as a Clos fabric, has become the de facto standard for modern data center design, and it is a central topic for the JN0-1301 exam. This two-tier topology consists of leaf switches, which connect to servers and other endpoints, and spine switches, which interconnect all the leaf switches. In a pure leaf-spine design, every leaf switch connects to every spine switch, but leaf switches do not connect to each other, and spine switches do not connect to each other. This creates a highly scalable and resilient fabric. Every server is a predictable and equal number of hops away from every other server, resulting in low and consistent latency. All links in the fabric can be active simultaneously using protocols like Equal-Cost Multipath (ECMP) routing, maximizing bandwidth utilization and eliminating the need for STP. This architecture is perfectly suited for handling the heavy east-west traffic patterns of modern applications and provides a simple, repeatable model for scaling the data center.

Initial Steps in Your JN0-1301 Journey

Beginning your preparation for the JN0-1301 exam requires a structured approach. The first step is to download the official exam objectives from the Juniper Networks learning portal. This document is the blueprint for the exam, detailing every topic that you will be tested on. Carefully review each objective and self-assess your current knowledge level. This will help you identify your strengths and weaknesses, allowing you to focus your study time effectively. Create a study plan that allocates sufficient time to each domain, giving extra attention to areas where you feel less confident. A good plan might involve reading official courseware, studying technical documentation and white papers, and watching relevant training videos. It is crucial to build a solid foundational understanding of the topics covered in this first part of the series, as all subsequent, more advanced concepts will build upon them. Without a firm grasp of design principles and architectures, tackling complex topics like EVPN-VXLAN will be significantly more challenging.

Exploring Traffic Flow in Different Architectures

Understanding how data packets traverse the network is fundamental to network design. In a traditional three-tier architecture, traffic between two servers connected to different access switches in the same aggregation block would travel up to the aggregation switch and back down. If the servers were in different aggregation blocks, the traffic would have to travel all the way up to the core layer and back down, creating a "hairpin" effect. This can lead to inefficient pathing and potential bottlenecks at the aggregation or core layers. In contrast, a leaf-spine architecture simplifies traffic flow immensely. Communication between two servers connected to the same leaf switch is handled locally. For servers on different leaf switches, the traffic flows from the source server to its leaf switch, up to a spine switch, and then directly down to the destination leaf switch and server. This path is always optimal and consistent, a key advantage that the JN0-1301 candidate must understand.

The Role of Layer 2 and Layer 3 in the Data Center

The placement of the boundary between Layer 2 (switching) and Layer 3 (routing) is a critical design decision in any data center network. Historically, data centers have been built with large Layer 2 domains that span across multiple racks or even entire rows. This was done to support applications that required Layer 2 adjacency, such as virtual machine migration with vMotion. However, large Layer 2 domains are problematic. They extend the broadcast domain, increasing the impact of broadcast storms, and are reliant on STP, with all its associated drawbacks. The modern approach, which is heavily favored in the JN0-1301 syllabus, is to push the Layer 3 boundary down to the top-of-rack (ToR) or leaf switch. This design, often called "routed to the host" or "routed to the ToR," creates many small Layer 2 domains and a larger, more stable, and scalable Layer 3 fabric. Technologies like EVPN-VXLAN further enhance this by allowing Layer 2 adjacency to be stretched over a Layer 3 underlay, offering the best of both worlds.

Introduction to Overlay and Underlay Networks

A core concept for the JN0-1301 exam is the separation of the data center network into an underlay and an overlay. The underlay network is the physical infrastructure, consisting of the leaf switches, spine switches, and the physical links connecting them. Its primary responsibility is to provide robust, scalable, and high-performance IP connectivity between all the nodes in the fabric. The underlay is typically built using standard Layer 3 routing protocols, such as OSPF or BGP, to ensure that every leaf switch can reach every other leaf switch. The overlay network, on the other hand, is a virtual network that is built on top of this physical underlay. It provides the logical services, such as Layer 2 adjacency and multi-tenancy, that are required by the applications and tenants. This separation provides immense flexibility. The underlay can be kept simple and stable, while the overlay can be dynamically provisioned and changed to meet application needs without affecting the physical infrastructure. This paradigm is fundamental to modern data center design.

Understanding VXLAN as a Tunneling Protocol

Virtual Extensible LAN, or VXLAN, is the most prevalent overlay tunneling protocol used in modern data centers and a critical topic for the JN0-1301 exam. VXLAN is designed to solve the limitations of traditional VLANs. VLANs use a 12-bit identifier, which limits the number of logical networks to 4,094. This is insufficient for large multi-tenant or cloud environments. VXLAN addresses this by using a 24-bit identifier, known as the VXLAN Network Identifier or VNI. This allows for over 16 million unique logical segments, providing massive scalability. VXLAN works by encapsulating the original Layer 2 Ethernet frame inside a UDP packet. This new packet is then sent across the Layer 3 underlay network. The devices at the edge of the fabric that perform this encapsulation and decapsulation are called VXLAN Tunnel Endpoints, or VTEPs. On Juniper devices, this function is typically performed by the leaf switches.

The Role of EVPN as the Control Plane

While VXLAN provides the data plane encapsulation mechanism for creating the overlay network, it does not inherently have a control plane. In its original specification, VXLAN relied on a flood-and-learn mechanism using multicast in the underlay to discover remote MAC addresses. This approach is inefficient and does not scale well. This is where Ethernet VPN, or EVPN, comes in. EVPN, a feature of Multiprotocol BGP (MP-BGP), serves as the advanced control plane for the VXLAN overlay. It is a major focus of the JN0-1301. Instead of flooding traffic to discover endpoints, VTEPs use EVPN to advertise MAC address and IP address information to each other. This allows the VTEPs to build a comprehensive forwarding table for all the endpoints in the network. This "learn-before-forward" approach is much more efficient and scalable. EVPN effectively replaces the need for flooding and the traditional Spanning Tree Protocol, creating a much more stable and intelligent network fabric.

Centrally-Routed Bridging (CRB) Architecture

The JN0-1301 exam requires knowledge of different EVPN-VXLAN fabric architectures. One common model is the Centrally-Routed Bridging (CRB) architecture, sometimes referred to as a bridged overlay. In a CRB design, the VXLAN tunnels for Layer 2 traffic are established between the leaf switches (VTEPs). However, any traffic that needs to be routed between different VXLAN segments (inter-VNI traffic) must be sent to a designated gateway. This gateway function is typically centralized on the spine switches or a dedicated pair of service routers. The leaf switches handle all the bridging within a given subnet, but when a packet needs to go to a different subnet, it is encapsulated and sent to the centralized gateway. The gateway decapsulates the packet, performs a Layer 3 lookup, re-encapsulates it for the destination VNI, and forwards it to the correct destination leaf. This model is relatively simple to implement but can lead to suboptimal traffic paths for inter-subnet communication.

Edge-Routed Bridging (ERB) Architecture

A more advanced and efficient architecture covered in the JN0-1301 curriculum is Edge-Routed Bridging (ERB), also known as a routed overlay. In an ERB model, the Layer 3 gateway functionality is distributed to all the leaf switches. Each leaf switch acts as the default gateway for the servers directly connected to it. This means that both inter-subnet (Layer 3) routing and intra-subnet (Layer 2) bridging are performed at the edge of the fabric on the leaf VTEPs. When a server needs to send traffic to a different subnet, its local leaf switch performs the routing decision directly. This is highly efficient as it keeps traffic localized and avoids the "hairpinning" effect seen in the CRB model, where traffic must first go to a central spine. This architecture provides optimal forwarding paths, improved scalability, and better fault isolation. Most modern data center deployments using EVPN-VXLAN prefer the ERB architecture for these reasons.

EVPN Route Types and Their Functions

EVPN utilizes a set of new BGP Network Layer Reachability Information (NLRI) attributes, known as route types, to distribute endpoint information. A deep understanding of these route types is essential for troubleshooting and for success on the JN0-1301 exam. The Type 2 route, or MAC/IP Advertisement route, is used to advertise the MAC addresses and, optionally, the IP addresses of the connected hosts. This is the primary mechanism for learning endpoint reachability information. The Type 3 route, or Inclusive Multicast Ethernet Tag route, is used to set up the paths for Broadcast, Unknown Unicast, and Multicast (BUM) traffic. The Type 5 route, or IP Prefix route, is used to advertise IP prefixes between data centers or from the data center fabric to the outside world, enabling seamless connectivity. There are other route types as well, such as Type 1 for Ethernet Auto-Discovery and Type 4 for Ethernet Segment Identifier, which are used for multi-homing and fast convergence.

Handling BUM Traffic in an EVPN-VXLAN Fabric

Broadcast, Unknown Unicast, and Multicast (BUM) traffic requires special handling in an EVPN-VXLAN fabric. As there is no traditional flooding in the Layer 3 underlay, a mechanism is needed to replicate and forward this type of traffic to all relevant VTEPs. EVPN provides two primary methods for this. The first method is ingress replication. With ingress replication, when a VTEP receives a BUM frame, it creates multiple copies of the frame and sends a unicast copy to every other VTEP that is part of the same VNI. This is simple to configure as it does not require multicast support in the underlay network. The second method uses multicast in the underlay. In this model, a unique multicast group is assigned to each VNI. When a VTEP receives a BUM frame, it encapsulates it and sends it to the assigned multicast address. The underlay network then handles the replication and delivery to all VTEPs that have joined that multicast group. This is more efficient for the ingress VTEP but adds complexity to the underlay. The JN0-1301 exam expects you to know the trade-offs between these two approaches.

Virtual Gateway and Anycast IP for Redundancy

In traditional networks, providing a redundant default gateway for servers often involves protocols like the Virtual Router Redundancy Protocol (VRRP). In an EVPN-VXLAN fabric using an ERB architecture, a much more elegant solution is employed. All the leaf switches that are part of the same VNI are configured with the exact same gateway IP address and MAC address. This concept is often referred to as an anycast gateway. From the server's perspective, there is only one default gateway. However, this gateway is logically present on every leaf switch. This means that a server can send traffic to its locally connected leaf switch, which will act as the gateway, ensuring the most direct and efficient path for traffic egressing the subnet. This active-active gateway model eliminates the need for protocols like VRRP, simplifies configuration, and ensures that gateway functionality is always available, even if one or more leaf switches fail. This is a key feature of a modern data center fabric that you must understand for the JN0-1301.

Understanding Data Plane and Control Plane Separation

The distinction between the data plane and the control plane is a fundamental concept in networking that is particularly pronounced in EVPN-VXLAN fabrics. The control plane is responsible for learning and making decisions about where traffic should be sent. In this context, EVPN running on top of BGP is the control plane. It builds and distributes the forwarding intelligence of the network, advertising MAC and IP addresses so that every VTEP knows where every endpoint is located. The data plane, on the other hand, is responsible for the actual forwarding of packets based on the decisions made by the control plane. VXLAN encapsulation is the data plane. When a packet arrives, the VTEP uses the information learned via the EVPN control plane to determine the destination VTEP, encapsulates the packet in a VXLAN header, and forwards it across the underlay. This clear separation, a key topic for the JN0-1301, allows for greater scale and stability.

Preparing for JN0-1301 Fabric Questions

To succeed with the fabric-related questions on the JN0-1301 exam, you must move beyond memorization and aim for a deep conceptual understanding. Be prepared to compare and contrast different architectures like CRB and ERB. You should be able to explain why EVPN is a superior control plane compared to flood-and-learn mechanisms. It is crucial to know the primary functions of the most common EVPN route types, especially Type 2, Type 3, and Type 5. You should also be able to describe the different methods for handling BUM traffic and articulate the pros and cons of ingress replication versus underlay multicast. Finally, be sure you can explain the benefits of an anycast gateway model compared to traditional first-hop redundancy protocols. Hands-on experience with Junos configuration for EVPN-VXLAN, even in a lab environment, will be invaluable in solidifying these complex concepts.

Introduction to Data Center Interconnect (DCI)

As organizations expand, they often require multiple data centers for purposes such as disaster recovery, business continuity, content distribution, and workload mobility. The technology used to connect these geographically separate data centers is known as Data Center Interconnect, or DCI. This is a critical topic within the JN0-1301 blueprint. DCI solutions must provide high-speed, reliable, and secure connectivity between sites. A key requirement for many DCI deployments is the ability to extend Layer 2 connectivity between data centers. This allows for seamless migration of virtual machines using technologies like vMotion and supports clustered applications that require Layer 2 adjacency between their nodes, regardless of their physical location. Modern DCI solutions must be able to do this in a scalable and manageable way, often by extending the data center fabric itself across the wide area network link.

DCI Layer 2 Extension Methods

There are several technologies available for extending Layer 2 domains between data centers, and the JN0-1301 exam expects familiarity with them. Traditional methods included using direct dark fiber links with stacked VLANs (Q-in-Q) or Layer 2 transport services from a provider, such as Virtual Private LAN Service (VPLS). While functional, these methods have scalability and management limitations. The modern and preferred approach for extending Layer 2 connectivity is to use an overlay technology like EVPN-VXLAN. By extending the VXLAN tunnels over the WAN link that connects the data centers, you can seamlessly stretch a VNI from one site to another. This allows a virtual machine in one data center to be on the exact same logical network segment as a virtual machine in another data center, hundreds or thousands of miles away. This overlay approach decouples the logical network from the physical transport, offering immense flexibility.

DCI using EVPN-VXLAN Gateway Models

When using EVPN-VXLAN for DCI, a key design decision is how to handle the interconnection. This is typically done using DCI gateways. These gateways are routers or switches that sit at the edge of each data center fabric and connect to the WAN. One common model involves establishing a separate EVPN-VXLAN session between the DCI gateways at each site. The gateways act as the VTEPs for the DCI link, effectively stitching the VXLAN fabrics together. Another approach is to use a different encapsulation for the DCI link itself, such as MPLS, while still using EVPN to exchange reachability information. For the JN0-1301, it is important to understand the concept that the DCI gateway's role is to interconnect the separate control planes and data planes of the individual data center fabrics, creating one large, cohesive logical network. This enables both Layer 2 and Layer 3 services to be extended across sites.

Seamless EVPN-VXLAN Stitching

A powerful capability of EVPN is its ability to stitch different services together. This is highly relevant for DCI and is an important concept for the JN0-1301. For example, you might have a data center fabric running EVPN-VXLAN and a WAN service running EVPN-MPLS. At the DCI gateway, you can seamlessly stitch these two services. The gateway would receive a VXLAN-encapsulated packet from the data center, decapsulate it, and then re-encapsulate it into an MPLS label-switched path for transport across the WAN. The EVPN control plane information is translated between the two domains, ensuring that MAC and IP address reachability is maintained end-to-end. This ability to integrate different encapsulation types provides enormous flexibility in designing DCI solutions, allowing organizations to leverage the best technology for each part of the network—VXLAN inside the data center and MPLS over the WAN, for instance.

Designing for High Availability (HA)

High Availability (HA) is a paramount concern in any data center design and a recurring theme in the JN0-1301 exam. The goal of HA is to eliminate single points of failure and ensure the network can withstand various faults with minimal to no disruption of service. This is achieved through redundancy at multiple levels. At the device level, this includes using chassis with redundant power supplies, fan trays, and control boards. At the link level, Link Aggregation Groups (LAGs) are used to bundle multiple physical links into a single logical link, providing both increased bandwidth and link redundancy. In a leaf-spine fabric, the architecture itself provides path redundancy through ECMP. If a spine switch fails, traffic is automatically rerouted through the remaining spine switches. Understanding how these different HA mechanisms work together to create a resilient fabric is key.

Multi-Homing in EVPN Fabrics

A specific and important HA technique in EVPN fabrics is multi-homing, which allows a server or downstream switch to connect to two or more leaf switches simultaneously. This is a critical topic for the JN0-1301. EVPN provides a standards-based, all-active multi-homing solution that is superior to older proprietary technologies like Juniper's Virtual Chassis or Cisco's vPC. In an EVPN multi-homing setup, the two leaf switches form an Ethernet Segment (ES) and are assigned a unique Ethernet Segment Identifier (ESI). They use the EVPN control plane to advertise this ESI to the rest of the fabric. This tells the other VTEPs that the attached server is reachable through both leaf switches. Traffic heading to the server can be load-balanced across both upstream links, and if one leaf switch or link fails, traffic immediately converges to the remaining active path without any disruption. This provides exceptional device-level redundancy for connected endpoints.

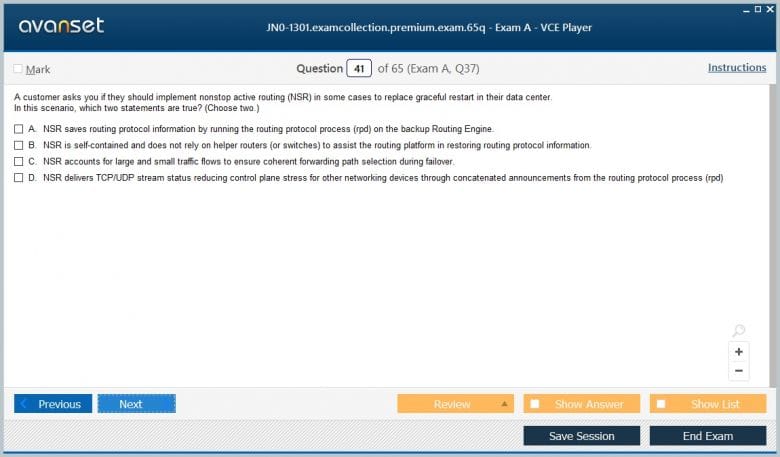

Graceful Restart (GR) and Non-Stop Routing (NSR)

Beyond physical redundancy, protocol-level resiliency is also crucial. Junos OS provides several features to ensure control plane stability, which are relevant to the JN0-1301. Graceful Restart (GR) is a mechanism that allows a routing protocol to continue forwarding traffic along known routes even if the control plane on a router is restarting. This prevents temporary outages during software upgrades or minor process failures. Non-Stop Routing (NSR) takes this a step further. On platforms with dual Routing Engines, NSR synchronizes all protocol state information between the primary and backup Routing Engines. If the primary Routing Engine fails, the backup can take over instantaneously without any interruption to the control plane and without the need for neighboring routers to be aware of the switchover. These features are critical for maintaining the five-nines of availability expected in modern data centers.

Understanding Traffic Flow Optimization

An effective data center design not only provides connectivity but also optimizes the flow of traffic. In a leaf-spine fabric built with EVPN-VXLAN, this is largely achieved by default. The ERB architecture ensures that inter-subnet traffic is routed at the first-hop leaf, preventing traffic from unnecessarily traversing the fabric core. The anycast gateway feature ensures that server traffic always uses the most direct egress path. Furthermore, the use of ECMP across the spine layer ensures that traffic is evenly distributed, preventing hotspots and maximizing the utilization of all available bandwidth. For the JN0-1301, you should be able to explain how these architectural choices inherently lead to optimized traffic patterns compared to the suboptimal, traffic-tromboning paths often seen in traditional three-tier designs.

Scaling the Data Center Fabric

Scalability is a primary driver for adopting a leaf-spine architecture. This design scales out horizontally in a simple and predictable manner. To increase server port capacity, you simply add more leaf switches. Each new leaf switch connects to all the existing spine switches. To increase the overall bandwidth or oversubscription ratio of the fabric, you add more spine switches. This modular approach allows the data center to grow from a few racks to hundreds of racks without changing the fundamental architecture. The EVPN control plane is also highly scalable, capable of handling hundreds of thousands of MAC and IP addresses. For the JN0-1301, understanding these scaling characteristics is important. You should be able to describe how to expand the fabric to meet growing demands for both endpoint connectivity and east-west bandwidth.

Multi-Fabric and Multi-Pod Designs

For extremely large data centers, a single leaf-spine fabric may not be sufficient. In these cases, multi-fabric or multi-pod designs are used. A multi-pod design involves building several smaller, independent leaf-spine "pods" and then interconnecting them through a super-spine layer. This creates a three-tier Clos fabric. This approach allows for massive scale and can also be used to create fault domains. An issue in one pod is less likely to affect another pod. A multi-fabric design might involve completely separate fabrics, perhaps for different tenants or applications, that are interconnected at a services or edge layer. The JN0-1301 may touch upon these very large-scale design concepts, so having a basic understanding of how to scale beyond a single fabric using techniques like interconnected pods is beneficial for a well-rounded knowledge base.

The Imperative of Data Center Security

In the modern enterprise, the data center is the repository for the most critical applications and sensitive data. Consequently, securing the data center is not just an option; it is a fundamental business requirement. A security breach can lead to devastating financial loss, reputational damage, and legal consequences. The JN0-1301 exam places significant emphasis on security principles and the Juniper Networks technologies used to implement them. Data center security must be multi-layered, defending against threats from the outside (north-south traffic) and, just as importantly, threats that originate from within the data center itself (east-west traffic). A holistic security strategy involves protecting the network infrastructure, the applications, and the data, using a combination of firewalls, intrusion prevention systems, and advanced threat protection mechanisms.

Securing North-South Traffic with SRX Series

North-south traffic refers to data flowing into and out of the data center. This is the traditional traffic flow that connects users on the internet or corporate network to applications hosted in the data center. Securing this traffic is typically the responsibility of a perimeter firewall. In a Juniper-based data center, this role is filled by the SRX Series Services Gateways. These are next-generation firewalls that provide a suite of security services, including stateful firewalling, intrusion prevention (IPS), application security (AppSecure), and unified threat management (UTM) features like antivirus and web filtering. For the JN0-1301, you should understand the role of the SRX Series as a perimeter security device, how it can be deployed in a high-availability cluster, and its function as the primary defense against external threats.

The Challenge of Securing East-West Traffic

East-west traffic, which is traffic moving between servers within the data center, now constitutes the vast majority of all data center traffic. Traditional perimeter firewalls are blind to this internal communication. This creates a significant security risk. If a single server inside the data center is compromised, an attacker can often move laterally to other servers with very few security controls to stop them. This is why securing east-west traffic has become a top priority. The goal is to implement a security model that can inspect and apply policy to traffic flowing between applications and workloads, even if they are on the same network segment. This concept is often referred to as microsegmentation, and it is a key security topic for the JN0-1301. It involves creating granular security zones around individual applications or even individual virtual machines.

Microsegmentation with Virtualized Firewalls (vSRX)

One powerful way to achieve microsegmentation and secure east-west traffic is by using virtualized firewalls, such as the Juniper vSRX. A vSRX is a virtual machine that provides the full feature set of a physical SRX Series firewall. These virtual firewalls can be strategically placed throughout the data center fabric to inspect traffic between different application tiers or security zones. For example, you could insert a vSRX between the web server tier and the database server tier of an application. This ensures that all communication between these tiers is inspected and subject to security policy, effectively preventing unauthorized lateral movement. The JN0-1301 requires an understanding of how virtualized security appliances can be integrated into a data center fabric to provide this granular level of internal security that a perimeter firewall cannot.

Service Chaining for Security Services

In many cases, traffic may need to be passed through a series of security and network services, such as a firewall, an intrusion detection system, and a load balancer. The process of steering traffic through this sequence of services is called service chaining. In a modern EVPN-VXLAN fabric, service chaining can be implemented in a highly agile and automated way. Instead of physically cabling devices together, policies can be created in the network controller that define the service chain. The network fabric then intelligently routes traffic from a source workload, through the required sequence of virtual or physical service appliances, and then on to its final destination. This policy-based routing is much more flexible than traditional methods and is a key enabler for inserting security services into the east-west traffic path. The JN0-1301 exam will expect a conceptual understanding of this process.

Introduction to Data Center Automation

The scale and complexity of modern data centers make manual configuration and management impractical and prone to error. Automation is the key to operating a data center efficiently, reliably, and at scale. Data center automation involves using software and scripting to provision, configure, and manage network devices and services with minimal human intervention. The benefits are numerous: it accelerates service delivery, reduces the risk of human error, ensures configuration consistency, and frees up network engineers to focus on higher-level design and strategy tasks. The JN0-1301 exam includes objectives related to the concepts, tools, and protocols that enable data center automation within a Juniper environment. A modern network engineer is expected to be proficient not just in networking protocols, but also in automation principles.

Zero Touch Provisioning (ZTP)

One of the first steps in automating the data center lifecycle is the initial device provisioning. Zero Touch Provisioning (ZTP) is a feature that allows a new switch to be deployed in the fabric without any manual configuration on the device itself. When a new switch is racked, cabled, and powered on, it boots up with a factory-default configuration. It then automatically sends out a request for its configuration and software image. A DHCP server responds with an IP address and pointers to a file server where the device's specific configuration file and the correct Junos OS image are stored. The switch downloads these files, installs the software, applies the configuration, and becomes an operational part of the fabric. ZTP dramatically simplifies the process of expanding the data center, making it a key automation feature covered in the JN0-1301 syllabus.

Automation Tools and Frameworks

The automation ecosystem is rich with tools and frameworks that can be used to manage a data center network. Configuration management tools like Ansible, Puppet, and Chef are widely used. These tools allow network administrators to define the desired state of their network devices in code. The tool then connects to the devices and automatically makes the necessary changes to bring them into compliance with that desired state. Ansible is particularly popular in network automation due to its agentless architecture and simple, human-readable YAML-based language. The JN0-1301 doesn't require you to be an expert coder, but it does expect you to understand the role of these tools and how they interact with Juniper devices to automate configuration tasks. Familiarity with the concepts of declarative configuration and idempotency is beneficial.

The Role of APIs and Programmability

Modern network operating systems like Junos OS are designed to be programmable. They provide rich Application Programming Interfaces (APIs) that allow external software and scripts to interact with the device. The NETCONF protocol is a key standard for network device configuration and management. It provides a programmatic, transaction-based way to configure a device, which is more robust than traditional command-line interface (CLI) scraping. Junos also supports REST APIs, allowing for easy integration with web-based tools and applications. Understanding that a modern network device is not just a black box to be configured via the CLI, but a programmable platform with well-defined APIs, is a crucial mindset shift for anyone preparing for the JN0-1301. These APIs are the fundamental building blocks that enable all higher-level automation tools.

Juniper Automation and Orchestration Platforms

In addition to supporting open-source tools, Juniper also provides its own platforms for management and automation. Juniper Contrail Networking is a sophisticated software-defined networking (SDN) controller that provides orchestration and automation for virtualized network environments. It can manage the entire service lifecycle, including creating virtual networks, defining security policies, and implementing service chains. For network management and monitoring, the Juniper Security Director and Junos Space Network Director provide centralized platforms for overseeing the health and performance of the data center network and security infrastructure. While the JN0-1301 focuses more on design principles than specific product features, having a high-level awareness of the role these Juniper platforms play in the overall automation and management strategy is important. They represent the realization of the automation concepts discussed throughout this section.

The Importance of Network Management and Monitoring

Designing and building a state-of-the-art data center fabric is only the first step. Once the network is operational, it must be carefully managed and monitored to ensure it continues to meet performance, availability, and security requirements. Proactive monitoring allows network operators to identify potential issues before they impact services, while effective management tools simplify day-to-day operational tasks. For the JN0-1301 exam, candidates should understand the key aspects of data center operations, including monitoring key performance indicators (KPIs), implementing network analytics, and using tools to troubleshoot problems efficiently. A well-designed network is also a manageable network, and these operational considerations are an integral part of the design process. An architecture that is difficult to monitor or troubleshoot is ultimately a flawed design.

Key Monitoring Areas in a Data Center Fabric

Effective monitoring of a data center fabric requires visibility into several key areas. Device health is fundamental; this includes monitoring CPU utilization, memory usage, and temperature on all switches and routers. Link utilization and error rates are also critical. Tracking the bandwidth usage on all fabric links, especially the spine-to-leaf links, helps in capacity planning and identifying potential bottlenecks. It is also essential to monitor the control plane. For an EVPN-VXLAN fabric, this means monitoring the BGP sessions between leaf and spine switches to ensure the EVPN control plane is stable. Furthermore, overlay network statistics, such as the number of MAC addresses learned per VNI and the volume of BUM traffic, can provide valuable insights into the health and behavior of the logical networks. The JN0-1301 expects a candidate to know what aspects of the network are important to watch.

Network Analytics and Telemetry

Traditional monitoring protocols like SNMP (Simple Network Management Protocol) are based on a polling model, where a central server periodically requests data from network devices. While still useful, this model can be slow and may not provide the granular, real-time data needed for modern, dynamic environments. The industry is moving towards a streaming telemetry model. With streaming telemetry, network devices actively push a continuous stream of operational data to a collector. This provides much higher-frequency and higher-resolution data, enabling more sophisticated analytics and faster detection of anomalies. Juniper devices support streaming telemetry, allowing operators to gain deep insights into the network's performance. Understanding the conceptual difference between polling and streaming is a relevant topic for the JN0-1301.

Troubleshooting Methodologies for the Data Center

When an issue does arise, a structured troubleshooting methodology is essential to resolve it quickly and efficiently. A common approach is the layered model, starting from the physical layer and moving up. Is the physical cabling correct and are the optics functioning? Then, check the data link layer. Are the interfaces up and are there any errors? Next, examine the network layer. Is the underlay routing protocol working correctly, and do the VTEPs have IP reachability to each other? After verifying the underlay, move to the overlay. Are the EVPN BGP sessions established? Are MAC addresses being learned and advertised correctly? A systematic, bottom-up or top-down approach prevents random guessing and ensures all possibilities are considered. The JN0-1301 exam may present scenario-based questions that require you to apply this kind of logical troubleshooting process.

Useful Junos OS Troubleshooting Commands

While the JN0-1301 is a design-focused exam, being familiar with key Junos OS operational commands can help solidify your understanding and is invaluable for real-world application. For troubleshooting the underlay, commands like show ospf neighbor or show bgp summary are fundamental. To inspect the EVPN control plane, show evpn database and show route table evpn.0 are essential. These commands show you the MAC and IP addresses that have been learned via EVPN. For the data plane, show ethernet-switching vxlan-tunnel-end-point will show you the discovered VTEPs and how BUM traffic is handled. Having a working knowledge of these command categories will deepen your understanding of how the different components of the fabric interact and how to verify their operational state.

Crafting Your Final JN0-1301 Study Plan

As you approach the final phase of your preparation for the JN0-1301 exam, it is time to consolidate your knowledge and focus on targeted revision. Revisit the official exam blueprint one last time. Create a checklist of all the topics and be honest about your confidence level in each one. Dedicate your remaining study time to your weakest areas. For example, if you are strong on leaf-spine architecture but less confident about DCI options, spend more time reviewing DCI technologies. Your goal is not just to recognize terms but to understand the concepts deeply enough to apply them to design scenarios. Consider explaining complex topics, like the difference between CRB and ERB, to a colleague or even just to yourself. This act of teaching is a powerful way to reveal gaps in your understanding.

Leveraging Study Resources Effectively

To pass the JN0-1301, you should use a variety of study resources. The official Juniper courseware and study guides are the most important starting point, as they are specifically aligned with the exam objectives. Supplement this with reading the official Juniper technical documentation and white papers on topics like EVPN-VXLAN and data center security. These documents often provide a level of detail that is invaluable for a deep understanding. Seek out reputable online training courses and video tutorials that can offer different perspectives and explanations. Finally, practical experience is irreplaceable. If you have access to a lab, whether physical or virtual, spend time configuring the technologies covered in the exam. Building a simple leaf-spine fabric with EVPN-VXLAN will teach you more than hours of reading alone.

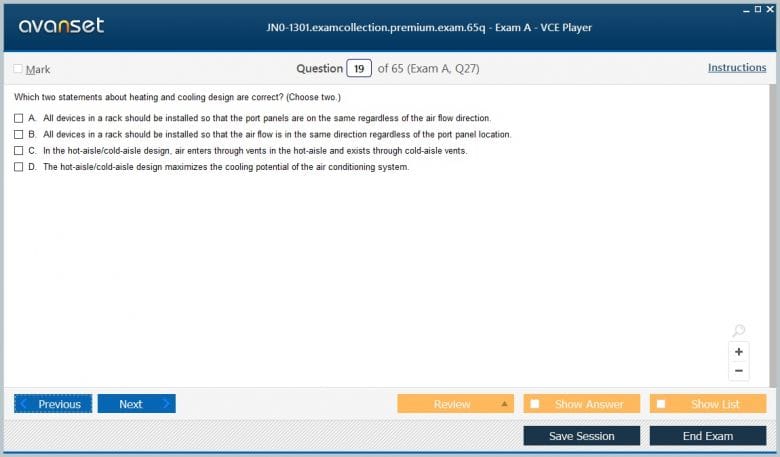

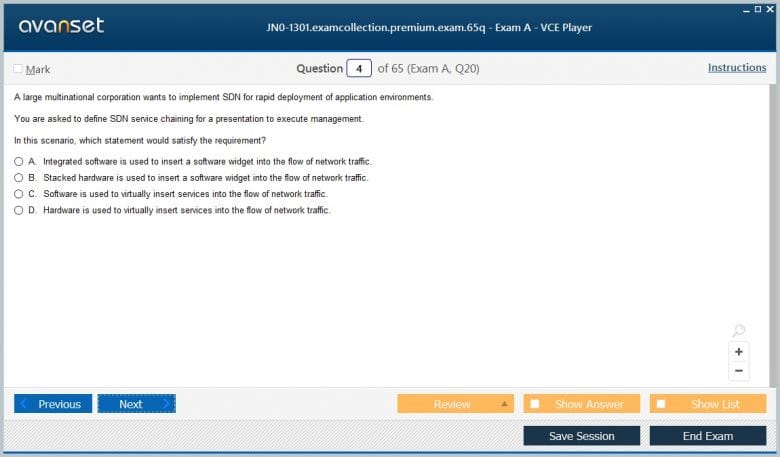

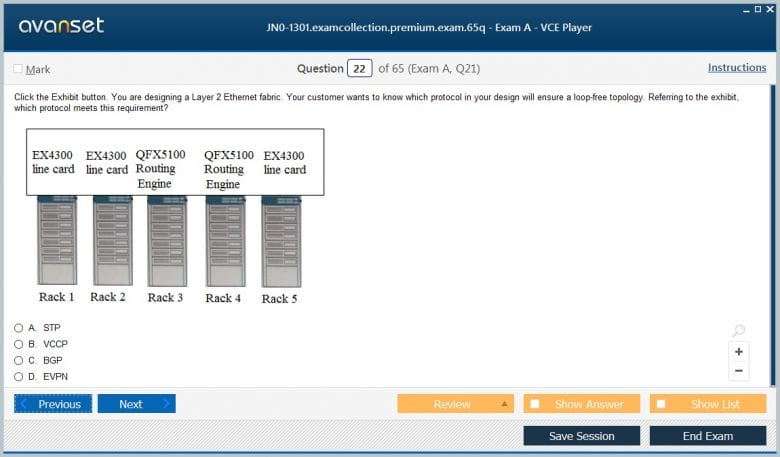

The Role of Practice Exams
