How to troubleshoot the following:


BGP peer relationships and authentication

BGP is unique in relation to the next steering conventions (EIGRP, OSPF) on the grounds that you should expressly arrange the associate connections between switches. These associates then utilize point-to-indicate TCP association trade data. So it is substantially more troublesome for a vindictive client to surreptitiously make a companion association with one of your switches and degenerate your directing tables. However it is still conceivable to commandeer a current TCP association between two BGP peers and infuse terrible courses. Also if the aggressors are on the same system section as one of the associates, they can possibly capture the IP location of the honest to goodness companion and set up another BGP session. With confirmation, this sort of assault is extensively more troublesome. This is on the grounds that the assailant must get the TCP succession numbers right, as well as embed the right encoded verification key.




Configuring the BGP

Outskirt Gateway Protocol (BGP) helps validation component utilizing Message Digest 5 (Md5) calculation. At the point when confirmation is empowered, any Transmission Control Protocol (TCP) portion having a place with BGP traded between the companions is confirmed and acknowledged just if validation is fruitful. For verification to be fruitful, both the companions must be designed with the same secret key. On the off chance that validation falls flat, the BGP neighbor relationship is not be secured. Fringe Gateway Protocol (BGP) steering associates could be designed with Message Digest 5 (Md5) calculation which is utilized to help directing confirmation. The Message Digest 5 (Md5) verification is a standard piece of BGP Version 4 that was presented in RFC 2385.



At the point when Message Digest 5 validation is empowered on BGP peers, any directing portion by means of Transmission Control Protocol (TCP) traded between BGP companions is checked and created. BGP peers must be designed with the same watchword for BGP neighbor relationship or association with be secured. BGP validation might be extremely valuable on the grounds that it makes it more troublesome for an approved or noxious client to upset your system steering tables. It will even be fundamentally troublesome when your switch have been empowered with the administration secret key encryption worldwide arrangement summon which empowers the switch to store the order utilizing the Cisco restrictive sort 7 encryption.



Route selection along with the BGP Load balancing

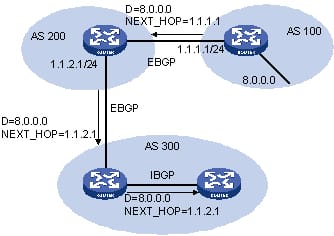

The following bounce of a BGP course may not be specifically associated. One of the reasons is next jumps in steering data traded between IBGPs are not adjusted. For this situation, the BGP switch needs to discover the straightforwardly joined next bounce by means of IGP. The matching course with the immediate next bounce is known as the recursive course. The procedure of discovering a recursive course is course recursion.



At present, the framework helps BGP burden adjusting focused around course recursion, to be specific, if various recursive courses to the same terminus are burden adjusted (assume three immediate next jump addresses), BGP creates the same number of next jumps to forward parcels. Note that BGP burden adjusting focused around course recursion is constantly empowered by the framework instead of designed utilizing summons.


BGP varies from IGP in the usage of burden adjusting in the accompanying:


  • IGP directing conventions, for example, RIP, OSPF process measurements of courses, and after that actualize burden adjusting over courses with the same metric and to the same terminus. The course determination model is metric.
  • BGP has no course reckoning calculation, so it can't actualize burden adjusting as per measurements of courses. On the other hand, BGP has bounteous course determination principles, through which, it chooses accessible courses for burden adjusting and adds burden adjusting to course choice rules.


IGP synchronization and iBGP

Directing data synchronization in the middle of iBGP and IGP abstains from giving wrong headings to switches outside of the nearby. In the event that a non-BGP switch meets expectations in an AS, it may dispose of a bundle because of an inaccessible goal. As demonstrated in Figure 11, Router E has taken in a course of 8.0.0.0/8 from Router D through BGP. At that point Router E sends a bundle to 8.0.0.0/8 through Router D, which finds from its steering table that Router B is the following jump (arranged utilizing the companion next-bounce neighborhood summons). Since Router D has taken in the course to Router B by means of IGP, it advances the parcel to Router C through course recursion. Switch C has no clue about the highway 8.0.0.0/8, so it disposes of the bundl.



Peer group

This record depicts the prerequisites, limits, and profits when you utilize companion bunches with Border Gateway Protocol (BGP). The real profit you accomplish when you point out a BGP companion gathering is that a BGP associate gathering decreases the measure of framework assets (CPU and memory) fundamental in an overhaul era. Furthermore, a BGP associate gathering likewise rearranges the BGP setup. A BGP associate gathering diminishes the heap on framework assets by permitting the directing table to be checked just once, and redesigns to be repeated to all companion bunch parts as opposed to being carried out independently for each one companion in the companion bunch. In light of the quantity of associate gathering parts, the quantity of prefixes in the table, and the quantity of prefixes publicized, and this can fundamentally decrease the heap. It is prescribed that you bunch together associates with indistinguishable outbound proclamation policies.



Dynamic update to BGP peer groups

The BGP Dynamic Update Peer-Groups gimmick presents another calculation that powerfully figures and streamlines upgrade gatherings of neighbors that have the same outbound arrangements and can have the same overhaul messages. In past forms of Cisco IOS programming, Border Gateway Protocol (BGP) upgrade messages were gathered together focused around associate gathering arrangements. This strategy for gathering redesigns constrained outbound approaches and particular session arrangements. The BGP Dynamic Update Peer-Group peculiarity divides upgrade bunch replication from companion bunch arrangement, which enhances union time and adaptability of neighbor configuration.




BGP configuration and peer group

The BGP Dynamic Update Peer-Groups peculiarity was presented with the BGP Configuration Using Peer Templates characteristic. The BGP Dynamic Peer-Groups gimmick enhances the execution of BGP overhaul message era. The BGP Configuration Using Peer Templates gimmick enhances the adaptability of BGP neighbor arrangement through the presentation of associate approach and companion session design formats. Peer-strategy design formats are utilized to arrange arrangement related orders. Peer-session arrangement layouts are utilized for the design of general session charges. Peer arrangement formats help legacy and more strong and adaptable setups.


With the design of the BGP Configuration Using Templates gimmick and the backing of the BGP Dynamic Update Peer-Groups offers, the system administrator no more needs to arrange companion bunches in BGP and can profit from enhanced arrangement adaptability and framework execution. For more data about the BGP Configuration Using Templates peculiarity, allude to the BGP Configuration Using Peer Templates report.



Active, passive

A BGP switch experiences a limited state machine that has the Idle, Connect, Active, Open Sent, Open Conform, and Established states with its neighbors. The debug ip BGP advantaged summon demonstrates the different BGP states all through the neighbor foundation process. After a neighbor BGP switch subcommand is arranged, the BGP session begins in the idle state, and the BGP methodology checks whether there is a course to the recently designed neighbor. The BGP session ought to stays in the idle state for just a couple of seconds. In the event that the BGP methodology is not able to spot a course to the neighbor, the BGP session stays in the idle state. In the event that it discovers a course, it launches a TCP association with the neighbor and the BGP session enters into the Connect state when the TCP SYN ACK portion returns, and the TCP three-way handshake is finished.


After the TCP association is created, the BGP procedure sends a BGP Open message to the neighbor and the BGP session enters beyond all detectable inhibitions Sent state. On the off chance that there is no reaction for 5 seconds, the state changes once again to the Active state. In the event that a reaction returns inside 5 seconds, the BGP session enters away from any confining influence Confirm state and the BGP procedure begins checking (assessing) the steering table for the ways to send to the neighbor. Inevitably the BGP session enters into the Established state and the BGP methodology starts to trade steering data with the neighbor. At the point when a BGP switch stays in the Active state, it implies that it can achieve the IP location designed in the neighbor articulation and has sent a BGP Open message to the neighbor yet has not gotten a reaction (the Open message from the neighbor) back from the neighbor.



States and timers

Utilize the cphaprob summon to check that the group and the bunch parts are working legitimately, and to characterize discriminating gadgets. A basic gadget is a procedure running on a bunch part that empowers the part to inform other group parts that it can no more capacity as a part. The gadget reports to the Clusterxl component in regards to its present state or it may neglect to report, in which case Clusterxl chooses that a failover has happened and an alternate bunch part assumes control. At the point when a basic gadget (otherwise called a Problem Notification, or pnote) comes up short, the group part is considered to have fizzled.


There are various inherent discriminating gadgets, and the director can characterize extra basic gadgets. The default discriminating gadgets are:


The group interfaces on the bunch parts.


Synchronization - full synchronization finished effectively.


Channel - the Security Policy, and whether it is stacked.


cphad - which takes after the Clusterxl methodology called cphamcset.


fwd - the Security Gateway daemon.


These charges might be run naturally by incorporating them in scripts. To deliver a use printout for cphaprob that demonstrates all the accessible charges, sort cphaprob at the order line and press enter.



eBGP

To troubleshoot with Border Gateway Protocol (BGP), you must assemble data about the convention and how it is working. Likewise with different conventions, the two principle wellsprings of data are the show order and the debug summon, so the spot to begin is by auditing the show orders that you can use with BGP.



The BGP show order is shockingly indicate ip BGP, which shows data about your switch, including its Router ID and the systems that are unmistakable with their metric, weight, and course signal. This order reveals to you whether the courses are interior (within your system) or stale (not overhauled as of late and potentially down).


Perceive that the Router id is the address that was connected with the loopback interface, as with the OSPF convention (secured in the past section). Likewise as with the OSPF convention, BGP utilizes the most noteworthy IP location of its joined interfaces as its Router id, which you can compel by utilizing a loopback interface. To survey both the OSPF convention and how to arrange the loopback interface.



4-byte AS number

the Cisco execution of 4-byte self-ruling framework numbers utilizes as plain as the default showcase group for self-governing framework numbers, however you can arrange 4-byte self-ruling framework numbers in both the as plain and as dot position. Furthermore, the default form for matching 4-byte self-ruling framework numbers in general representations is as plain, so you must guarantee that any customary declarations to match 4-byte independent framework numbers are composed in the as plain position. In the event that you need to change the default show summon yield to show 4-byte independent framework numbers in the as dot organization, utilize the BGP as notation spot order under switch arrangement mode. At the point when the as dot arrangement is empowered as the default, any general articulations to match 4-byte independent framework numbers must be composed utilizing the as dot design, or the normal declaration match will fall flat. The tables beneath demonstrate that in spite of the fact that you can design 4-byte self-ruling framework numbers in either as plain or as dot position, one and only configuration is utilized to show charge yield and control 4-byte self-governing framework number matching for general representations, and the default is a plain group. To show 4-byte self-governing framework numbers in show summon yield and to control matching for standard statements in the as dot design, you must arrange the BGP as notation spot charge. In the wake of empowering the BGP as notation speck summon, a hard reset must be launched for all BGP sessions by entering the agreeable ip BGP charge.



Private AS

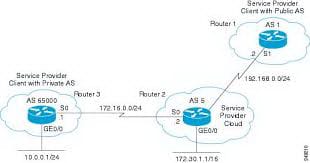

Private self-ruling framework (AS) numbers which go from 64512 to 65535 are utilized to moderate internationally exceptional AS numbers. Universally remarkable AS numbers (1 - 64511) are relegated by Internal Cisco. These private AS number can't be spilled to a worldwide Border Gateway Protocol (BGP) table in light of the fact that they are not novel (BGP best way computation expects exceptional AS numbers; see BGP Best Path Selection Algorithm for more data on BGP way choice). Consequently, another peculiarity was included Cisco IOS Software discharge 10.3 and later, which permits the stripping of private AS numbers out of the As_path list before the courses are engendered to a BGP peer.



For the most part client systems and their directing strategies are an expansion of the separate Internet Service Providers (ISPs). At the point when a client system is extensive, the administration supplier may appoint an AS number utilizing several distinctive routines to deal with the system and directing strategies
