Mastering the E20-555 Exam: A Comprehensive Guide

The E20-555 Exam, formally known as the Isilon Solutions Specialist Exam for Implementation Engineers, represents a significant milestone for professionals working with scale-out network-attached storage (NAS) solutions. This certification validates a candidate's ability to proficiently install, configure, manage, and troubleshoot an Isilon cluster environment. Passing this exam demonstrates a deep understanding of both the hardware and software components that constitute the Isilon ecosystem. It signifies that an individual possesses the requisite knowledge to deploy these systems according to best practices, ensuring optimal performance, reliability, and data integrity for enterprise clients.

Preparing for the E20-555 Exam requires a structured approach that encompasses theoretical knowledge and practical hands-on experience. The exam curriculum is designed to test a wide array of skills, from the initial physical racking of nodes to the intricate configuration of advanced software features. Candidates are expected to be familiar with the OneFS operating system, network configurations, data access protocols, and the suite of data protection tools available on the platform. This guide is designed to break down these complex topics into manageable sections, providing a clear path for anyone aspiring to achieve this valuable certification.

While the specific E20-555 Exam code may evolve as technology advances, the foundational principles it covers remain highly relevant. The concepts of scale-out architecture, distributed file systems, and integrated data protection are central to modern data storage solutions, particularly those now under the PowerScale brand. Therefore, studying the material for this exam provides a robust education in enterprise storage that extends beyond a single test. It equips engineers with the skills needed to handle massive amounts of unstructured data, a challenge that is becoming increasingly common in today's digital landscape. Success requires dedication and a thorough study plan.

This five-part series will serve as a comprehensive resource for your E20-555 Exam preparation journey. In this first part, we will lay the groundwork by exploring the fundamental concepts of Isilon's architecture. We will delve into the OneFS operating system, the structure of the file system, the different types of hardware nodes, and the core principles of data layout and protection. Building a strong foundation in these areas is the critical first step toward mastering the more advanced topics and ultimately achieving success on the E20-555 Exam.

Understanding Isilon Scale-Out NAS Architecture

At the heart of the Isilon solution, and a core topic for the E20-555 Exam, is its scale-out NAS architecture. Unlike traditional scale-up architectures that rely on adding more powerful controllers to a fixed set of disks, scale-out systems expand by adding complete nodes to a cluster. Each node contributes its own CPU, memory, networking, and storage capacity. This design allows for linear scalability of both performance and capacity. As an organization's data grows, new nodes can be seamlessly added to the cluster, with the system automatically rebalancing data and workloads across all available resources without any downtime.

This architectural choice provides immense flexibility and eliminates the forklift upgrades common with scale-up systems. When a scale-up system reaches its controller limit, the entire system must be replaced. With a scale-out model, the cluster can grow from a few nodes to hundreds, potentially managing petabytes of data within a single file system and a single global namespace. This simplicity of management is a key selling point and a concept that candidates for the E20-555 Exam must fully grasp. The ability to manage a vast storage pool as a single entity dramatically reduces administrative overhead.

The Isilon architecture is also inherently resilient. There is no single point of failure within the cluster. All nodes in the cluster are peers, meaning there is no master or controller node that could bring down the entire system if it failed. Data and its associated metadata are distributed and protected across all the nodes. If a node or an individual disk fails, the system can automatically rebuild the lost data from the protection information stored on the other nodes. This high degree of availability is crucial for enterprise environments and a frequent subject of questions on the E20-555 Exam.

Understanding this fundamental difference between scale-up and scale-out is not just academic; it informs every aspect of implementation and management. Decisions about network design, data protection levels, and performance tuning are all influenced by the underlying scale-out architecture. For the E20-555 Exam, candidates must be able to articulate why this model is advantageous for workloads involving large files and high concurrency, such as media and entertainment, life sciences, and big data analytics. It is the bedrock upon which all other Isilon knowledge is built.

The Core of Isilon: The OneFS Operating System

The OneFS operating system is the software that powers the entire Isilon cluster, and a comprehensive understanding of it is essential for anyone taking the E20-555 Exam. OneFS is far more than a simple operating system; it is a specialized, distributed file system and volume manager combined into one integrated software layer. It is responsible for managing all cluster operations, from data distribution and protection to client connectivity and performance optimization. OneFS pools all the hardware resources from the individual nodes and presents them as a single, unified storage resource to clients and applications.

A key feature of OneFS is its symmetrical, peer-to-peer architecture. Every node in the cluster runs the same OneFS software and has the ability to perform any function. This eliminates the need for a dedicated master or metadata server, which can become a bottleneck in other distributed systems. When a client connects to the cluster, any node can handle the connection, authenticate the user, and serve the requested data. This distribution of responsibility ensures that performance scales linearly as more nodes are added and that the system remains highly available even in the event of multiple component failures.

Another critical aspect of OneFS tested on the E20-555 Exam is its ability to manage data, metadata, and data protection as an integrated whole. Unlike traditional RAID systems that protect data at the disk or controller level, OneFS protects data at the file level. Using a method called Forward Error Correction (FEC), it calculates parity information and stripes both the data and the parity across multiple nodes in the cluster. This allows for extremely efficient and flexible data protection schemes, such as N+1, N+2, N+3, or even N+4, which can tolerate the failure of one, two, three, or four nodes or drives, respectively.

The file system itself is a single, global namespace that can scale to petabytes in size. This means that an administrator does not need to create or manage multiple volumes or LUNs. All data resides in a single, easily navigable directory structure located at /ifs. This simplicity masks the complexity happening underneath, where OneFS is constantly working to distribute files, rebalance data for optimal layout, and ensure everything is protected according to the policies set by the administrator. A deep dive into these OneFS mechanics is a prerequisite for passing the E20-555 Exam.

Deep Dive into OneFS File System Structure

To excel on the E20-555 Exam, an implementation engineer must understand the internal structure of the OneFS file system. As mentioned, the entire storage pool is presented as a single directory, /ifs. This unified namespace is a cornerstone of Isilon's manageability. Beneath this simple exterior, OneFS employs a sophisticated method for storing files. When a file is written to the cluster, it is broken down into smaller logical units called stripes. The size of these stripes can vary, but they are typically 128KB. This process is the first step in distributing the file across the cluster for performance and resilience.

These stripes are then protected using Forward Error Correction (FEC). OneFS calculates a set of parity blocks, also known as FEC blocks, for a group of data stripes. The number of parity blocks created is determined by the protection level configured for the file. For example, an N+2 protection level means that for every group of data stripes, two parity blocks will be created. This allows the file to remain intact even if two components (drives or entire nodes) containing its stripes become unavailable. The E20-555 Exam will expect candidates to know how different protection levels impact capacity and fault tolerance.

Once the data and parity stripes are created, OneFS distributes them across different nodes and drives within the cluster. This process, known as data striping, is designed to maximize both write performance and data safety. By spreading a single file across many physical devices, the cluster can leverage the I/O capabilities of multiple nodes simultaneously for both read and write operations. It also ensures that the failure of a single node or drive only affects a small portion of any given file, making rebuilds faster and less impactful.

Metadata, which is the data about the files (like permissions, timestamps, and location of the stripes), is also distributed and protected across the cluster. OneFS mirrors its metadata multiple times to ensure it is always available. The inodes, which contain this metadata, are spread throughout the cluster just like the data itself. This distributed metadata management is a key differentiator from systems that rely on a central metadata server, and it's a critical reason for Isilon's scalability. For the E20-555 Exam, understanding this interplay between data striping, FEC, and distributed metadata is fundamental.

Exploring Isilon Node Types and Roles

A significant portion of the E20-555 Exam focuses on the hardware that makes up an Isilon cluster. While the product line has evolved, the concept of different node types designed for specific purposes remains constant. Isilon offers a variety of node "flavors" or series, each balancing performance, capacity, and cost differently. For instance, there are archive-focused nodes (A-series in the PowerScale family, formerly NL-series) that prioritize high capacity and low cost-per-TB using large SATA drives. These are ideal for long-term storage and data that is infrequently accessed.

On the other end of the spectrum are performance-oriented nodes (F-series, formerly S-series or X-series) which utilize SSDs or faster SAS drives. These nodes are designed for workloads that demand high IOPS and low latency, such as high-performance computing, real-time analytics, or collaborative media editing. There are also hybrid nodes (H-series) that offer a balance of performance and capacity, making them a versatile choice for a wide range of general-purpose file-serving workloads. The E20-555 Exam requires candidates to identify the appropriate node type for a given use case.

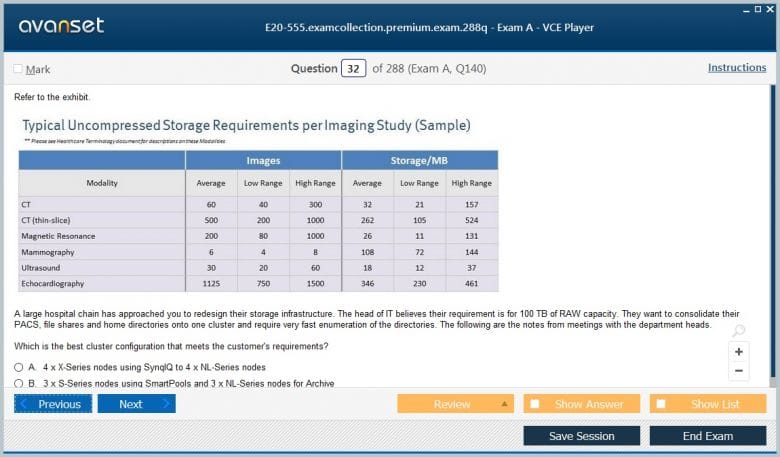

It is important to remember that a single Isilon cluster can be heterogeneous, meaning it can contain nodes of different types. This flexibility is managed by a software feature called SmartPools. SmartPools allows administrators to create different tiers of storage within the same cluster. For example, you could have a high-performance tier of all-flash nodes and a low-cost capacity tier of archive nodes. Policies can then be set to automatically move files between these tiers based on criteria like file age, file type, or last access time, ensuring data resides on the most cost-effective storage.

While all nodes in a cluster are peers, some may have specialized roles. For instance, some nodes might be configured with additional network ports to handle more client connections, while others might be designated as accelerator nodes, which contain large amounts of cache but little to no storage capacity, purely to speed up access to data on other nodes. Understanding these different hardware configurations and how they contribute to the overall cluster's capabilities is a practical skill that the E20-555 Exam is designed to validate in implementation engineers.

The Concept of the Cluster and Quorum

The concept of a cluster is central to Isilon's design and a key topic for the E20-555 Exam. An Isilon cluster is a group of two or more nodes that work together as a single system. From the perspective of a client or an administrator, the cluster appears as one large, powerful NAS device. The minimum number of nodes to form a cluster is typically three, as this is the smallest configuration that can maintain data availability in the event of a single node failure while still having a majority of nodes online, a concept known as quorum.

Quorum is a critical mechanism that OneFS uses to prevent a "split-brain" scenario. A split-brain occurs in a distributed system when a loss of communication between nodes causes two separate parts of the cluster to believe they are the "real" cluster, leading to data corruption as both try to write data independently. To prevent this, OneFS requires that a majority of nodes (more than 50%) be online and in communication with each other to allow write operations. If a group of nodes becomes isolated and does not have quorum, it will go into a read-only state to protect data integrity.

For an E20-555 Exam candidate, understanding how quorum is calculated is vital. In a cluster with N nodes, quorum is defined as floor(N/2) + 1. For example, in a 10-node cluster, quorum is floor(10/2) + 1, which equals 6. This means at least 6 nodes must be online and communicating for the cluster to remain fully functional and allow writes. If 5 nodes were to fail or become partitioned from the network, the remaining 5 nodes would not have quorum and would switch to a protected, read-only mode.

This quorum requirement has direct implications for cluster design and data protection strategies. It underscores why a two-node cluster is generally not recommended for production, as the failure of one node would cause the entire cluster to become read-only. The relationship between the number of nodes, the chosen data protection level (e.g., N+2), and the quorum rules determines the overall fault tolerance of the system. The E20-555 Exam will test an engineer's ability to apply these concepts to design a resilient and reliable Isilon storage solution.

Data Layout and Protection Levels

Data layout and protection are perhaps the most critical implementation topics covered in the E20-555 Exam. As an implementation engineer, you are responsible for configuring the cluster to meet the client's specific requirements for performance and data resilience. OneFS provides granular control over how data is laid out and protected, and these settings can be applied on a per-file, per-directory, or cluster-wide basis. The default setting is typically N+2:1, which means the system can tolerate the failure of any two drives or one entire node.

The protection level is expressed in an N+M/b format. 'N' represents the number of data stripe units, while 'M' represents the number of FEC or parity stripe units. The 'b' represents the number of drive failures the system can withstand within a single stripe, but this is less commonly modified. The most important part is the N+M designation. For example, N+2 protection means two parity blocks are created for each stripe group. N+3 means three are created. A higher 'M' value provides greater resilience but also consumes more raw capacity for overhead.

The E20-555 Exam requires a solid understanding of the trade-offs involved. While N+3 offers more protection than N+2, it is less space-efficient. The choice of protection level depends on the size of the cluster and the value of the data. For very large clusters, a higher protection level like N+3 or N+4 is often recommended because the statistical probability of multiple simultaneous drive failures increases with the number of drives in the system. For smaller clusters, N+2 might provide an adequate balance of safety and usable capacity.

OneFS also provides options for data mirroring, such as 2x through 8x. Mirroring creates exact copies of the data rather than using parity. While this offers very high read performance, it is extremely space-inefficient, as 2x mirroring consumes twice the raw capacity of the data itself. Mirroring is typically only used for very specific use cases, such as for metadata or for files requiring the absolute fastest read access. An implementation engineer preparing for the E20-555 Exam must be able to calculate the capacity overhead for various protection schemes and recommend the appropriate level based on customer needs.

Preparing for Isilon Hardware Installation

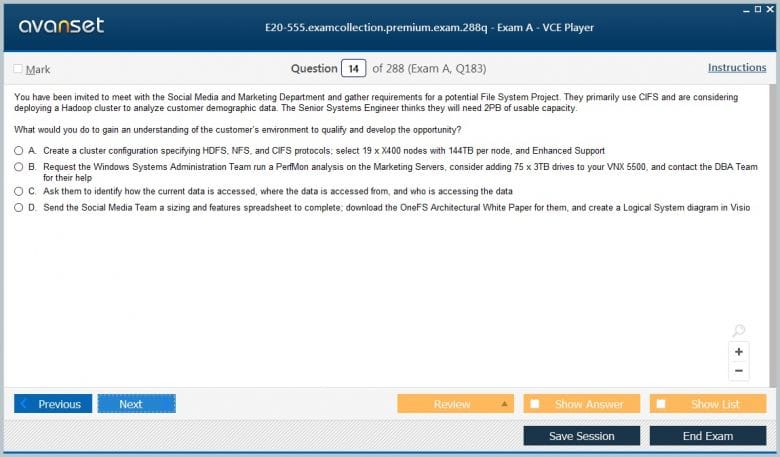

A successful Isilon deployment, and a key area of focus for the E20-555 Exam, begins long before the hardware arrives at the data center. Thorough preparation is essential to ensure a smooth and efficient installation process. This initial phase involves gathering critical information from the customer, verifying site readiness, and creating a detailed implementation plan. The implementation engineer must work with the project manager and the customer to document networking requirements, including IP addresses for the front-end client network, the back-end replication and management network, and any dedicated service ports.

Site readiness is a physical and environmental concern. The engineer must confirm that the data center has adequate space, power, cooling, and floor load capacity for the new Isilon nodes. This includes verifying the type of power distribution units (PDUs) available and ensuring the correct power cables are on hand. Cooling is also critical, as a fully populated rack of Isilon nodes can generate a significant amount of heat. Confirming proper airflow and ambient temperature within the data center is a non-negotiable step. The E20-555 Exam may present scenarios where improper site preparation leads to installation issues.

The engineer must also unbox and inspect all equipment upon arrival. This involves checking the shipping manifest against the delivered components to ensure everything is present, including nodes, rack rails, cables, and any additional hardware like InfiniBand switches for the back-end network. Each component should be visually inspected for any signs of damage that may have occurred during transit. Finding a damaged component at this stage is far better than discovering it after the equipment has been racked and cabled, which would cause significant delays. Documenting the serial number of each component is also a best practice for asset management.

Finally, a comprehensive implementation plan should be created and reviewed with the customer. This plan outlines the entire process, from racking the nodes to the final configuration and hand-off. It should include a timeline, key milestones, roles and responsibilities, and a rollback plan in case of unforeseen issues. Having a clear, agreed-upon plan minimizes surprises and ensures that all stakeholders have the same expectations. This level of professionalism and planning is a hallmark of a certified specialist and a core competency tested by the E20-555 Exam.

The Physical Racking and Stacking Process

Once the site preparation is complete, the physical installation of the Isilon hardware can begin. This process, often referred to as "racking and stacking," requires careful attention to detail to ensure the hardware is installed safely and correctly. For professionals aiming to pass the E20-555 Exam, understanding the best practices for this physical work is just as important as knowing the software configuration. The first step is to install the mounting rails into the designated rack space according to the manufacturer's instructions. The rails must be level and securely fastened to support the weight of the nodes.

With the rails in place, the nodes can be installed. This is typically a two-person job due to the weight and size of the chassis. The node is lifted and guided onto the rails, then slid carefully into the rack until it locks into place. It is crucial to follow a logical placement strategy, usually starting from the bottom of the rack and working upwards. This provides better stability. If a back-end InfiniBand or Ethernet switch is part of the deployment, it is often installed in the middle of the rack to minimize cable lengths to the nodes above and below it.

After the nodes are physically racked, power connections must be made. Best practice dictates using redundant power supplies for each node and connecting them to separate power distribution units (PDUs). These PDUs should, in turn, be connected to independent circuits to provide true power redundancy. This ensures that the failure of a single power circuit or PDU will not cause a node to go offline. The E20-555 Exam will expect candidates to understand and advocate for such high-availability configurations. Proper cable management for power cords is also important to maintain airflow and serviceability.

The final step in the physical process is to label everything clearly. Each node, each network port, and each cable should have a distinct and logical label. This meticulous documentation is invaluable for future troubleshooting, maintenance, and expansion. An unlabeled environment can quickly become unmanageable and lead to costly errors. While it may seem like a simple task, demonstrating an understanding of the importance of proper labeling and physical organization is part of the practical knowledge that the E20-555 Exam is designed to verify in a competent implementation engineer.

Understanding Backend Network Cabling with InfiniBand

The backend network, also known as the intracluster network, is the private, high-speed communication fabric that connects all the nodes within an Isilon cluster. This network is critical for the performance and stability of the system, and its proper cabling is a major focus of the E20-555 Exam. OneFS uses this backend network for all internal communication, including coordinating writes, moving data during rebalancing, and rebuilding data after a failure. Any issues with the backend network can severely degrade cluster performance or even cause nodes to become unavailable.

Historically, and for many generations of hardware relevant to the E20-555 Exam, InfiniBand was the technology of choice for this backend network. InfiniBand provides extremely high bandwidth and very low latency, which is ideal for the intense node-to-node communication required by OneFS. In a typical InfiniBand setup, each node has two InfiniBand ports for redundancy. These ports are connected to a pair of redundant InfiniBand switches. The cabling must be done in a specific way to ensure that each node has a connection to each switch, creating a fully redundant fabric.

Cabling the InfiniBand network requires precision. The engineer must follow the specific cabling diagram provided in the Isilon documentation for the particular node and switch combination being used. A common mistake is to cross-connect the ports incorrectly, which can prevent the cluster from forming properly or lead to intermittent connectivity issues. For example, Port 1 on every node might connect to Switch A, while Port 2 on every node connects to Switch B. This ensures that the failure of an entire switch does not isolate any single node from the cluster.

As Isilon technology evolved into PowerScale, the backend network has increasingly transitioned to Ethernet, specifically high-speed Ethernet like 40GbE or 100GbE. However, the principles remain the same: high speed, low latency, and full redundancy. Whether using InfiniBand or Ethernet, the E20-555 Exam candidate must understand the critical role of this backend fabric. They must be able to describe how to cable it for high availability, what its purpose is, and how to perform basic checks to verify its connectivity and health during the initial setup phase.

Front-End Network Connectivity Options

While the backend network is for the cluster's internal use, the front-end network is how clients and applications connect to the Isilon cluster to access data. Configuring the front-end network correctly is a crucial task for the implementation engineer and a significant domain within the E20-555 Exam. Isilon nodes are equipped with multiple front-end Ethernet ports, typically ranging from 1GbE to 10GbE, 40GbE, or even higher speeds on modern hardware. These ports are connected to the customer's data network switches.

Similar to the backend and power, redundancy is a key design principle. Best practice is to use at least two front-end ports on each node, connected to separate physical network switches. This protects against the failure of a network interface card (NIC), a cable, or an entire switch. These multiple network interfaces can be aggregated together using the Link Aggregation Control Protocol (LACP) to create a single logical link with higher bandwidth and built-in fault tolerance. The E20-555 Exam will expect candidates to be familiar with LACP and its configuration within OneFS.

The front-end network configuration involves assigning IP addresses to the nodes and configuring how clients will connect. This is where the Isilon software feature called SmartConnect comes into play. SmartConnect provides a single hostname for clients to connect to, and it intelligently distributes the incoming client connections across the available nodes and network interfaces in the cluster. This load balancing ensures that no single node becomes a bottleneck and maximizes the overall performance of the cluster. We will explore SmartConnect in greater detail in a later part of this series.

During the physical installation phase, the engineer is responsible for the physical cabling of these front-end ports. This involves connecting the correct ports on the Isilon nodes to the designated ports on the customer's network switches. Again, clear and accurate labeling is essential. Each cable should be labeled on both ends to identify the source and destination port. A wiring plan, created during the preparation phase, should be followed precisely. Errors in front-end cabling can prevent client access and delay the entire project, reflecting poorly on an engineer's competence.

Step-by-Step Initial Cluster Configuration

After all the hardware has been racked, powered, and cabled, the next major step is to perform the initial cluster configuration. This is where the individual nodes are joined together to form a single, functional OneFS cluster. This process is a core competency for any Isilon implementation engineer and is heavily featured in the E20-555 Exam. The configuration is typically done by connecting a laptop to the first node in the sequence and accessing the configuration wizard through a web browser or a serial connection.

The configuration wizard guides the engineer through a series of steps. The first step is to discover and select the nodes that will be part of the new cluster. The wizard will automatically detect other new, unconfigured nodes on the same backend network. The engineer simply confirms the list of nodes to be included. Next, a cluster name must be chosen. This name will become part of the NetBIOS name and is used for management purposes. A root password must also be set, which provides administrative access to the cluster.

The next series of screens deals with network configuration. The engineer will be prompted to define the IP address ranges for the front-end network. This includes setting up subnets and pools of IP addresses that will be managed by SmartConnect and assigned to the nodes for client connectivity. The wizard also handles the configuration of the internal backend network, though this is largely automated. It is crucial that the IP address information entered here is accurate and matches the plan created during the preparation phase.

Once all the information has been entered, the wizard presents a summary screen for final review. After the engineer confirms the settings, the wizard applies the configuration and initiates the process of forming the cluster. This can take several minutes as the nodes communicate with each other, establish quorum, and format the drives for use by OneFS. The engineer must monitor this process closely. A successful formation is a major milestone in the deployment, and any errors must be diagnosed and resolved, a skill directly tested by the E20-555 Exam.

Post-Configuration Verification and Health Checks

Creating the cluster is not the final step. After the initial configuration is complete, a thorough verification and health check must be performed to ensure the cluster is healthy, stable, and ready for production use. This is a critical quality assurance step that an implementation engineer preparing for the E20-555 Exam must master. Rushing a cluster into production without proper verification can lead to performance problems, data unavailability, or other serious issues down the line. The first step is to log into the cluster's web administration interface or command-line interface (CLI).

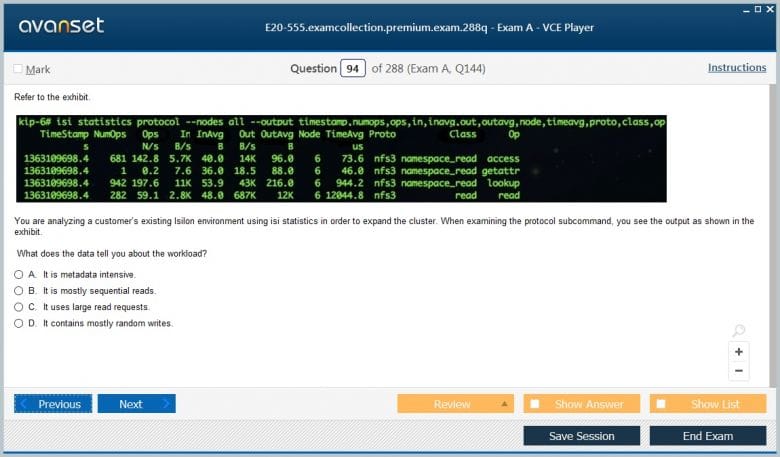

From the management interface, the engineer should run a comprehensive health check. OneFS includes built-in commands and tools to assess the state of the cluster. A command like isi status provides a high-level overview of the cluster, showing the health of each node and the status of the OneFS services. The engineer should also check the status of all hardware components using commands like isi devices to ensure all drives, network interfaces, and fans are recognized and operating correctly. Any alerts or error messages must be investigated immediately.

Network connectivity must also be verified. The engineer should confirm that all configured front-end IP addresses are reachable and that client connections can be established. This involves testing name resolution for the SmartConnect service IP and attempting to connect to a test share from a client machine. Backend network health can be checked using specific CLI commands that show the status of the InfiniBand or high-speed Ethernet interfaces and their connections. Verifying that the backend network is operating at its full, expected speed is crucial for cluster performance.

Finally, the engineer should review the cluster's event log for any warnings or errors that may have occurred during the formation process. This log provides a detailed history of all system activities. A clean event log is a good indicator of a healthy cluster. At this point, it is also a good practice to gather a full log set from the cluster to have a baseline record of a healthy system. Performing these diligent post-configuration checks demonstrates the thoroughness expected of a specialist certified by the E20-555 Exam.

Common Pitfalls in Initial Isilon Deployment

Even with careful planning, issues can arise during an Isilon deployment. The E20-555 Exam will test a candidate's ability to troubleshoot and resolve these common problems. One of the most frequent issues is related to networking. Incorrect IP addresses, subnet masks, or gateway information entered during the configuration wizard can prevent the cluster from being accessible on the network. Similarly, misconfigured VLANs on the customer's network switches can block communication to and from the Isilon nodes, making troubleshooting difficult.

Another common pitfall involves the backend network. Improperly seated or faulty InfiniBand or Ethernet cables can lead to a "split cluster" where nodes cannot communicate with each other and are unable to form a single, cohesive cluster. This often manifests as nodes failing to appear in the configuration wizard or the formation process failing with cryptic errors. A systematic check of all backend cabling, ensuring each cable is securely connected to the correct port, is the first step in diagnosing such problems.

Hardware issues can also cause delays. A drive that is dead on arrival (DOA) or a faulty network interface card can prevent a node from joining the cluster correctly. This is why the post-configuration health check is so important. OneFS is designed to detect and report these hardware failures. An implementation engineer must know how to interpret these alerts and follow the correct procedure for replacing the failed component. The E20-555 Exam expects this level of practical hardware troubleshooting knowledge.

Finally, a lack of proper planning can be the biggest pitfall of all. Starting an installation without a confirmed and documented plan for IP addressing, network ports, and physical rack placement is a recipe for disaster. It leads to confusion, errors, and significant delays. A certified professional understands that the success of the implementation is largely determined by the quality of the preparation done beforehand. Avoiding these common pitfalls through meticulous planning and execution is a key differentiator for an E20-555 Exam certified specialist.

Fundamentals of Isilon Networking

A deep and practical understanding of networking is arguably one of the most critical skills for an Isilon implementation engineer and a major component of the E20-555 Exam. An Isilon cluster is a network-centric device, and its performance and reliability are directly tied to the health and design of the underlying network infrastructure. The networking model in OneFS is sophisticated, providing flexibility to segment traffic, ensure high availability, and balance client loads. At a high level, networking is managed through a hierarchical structure of subnets, pools, and rules.

The foundation of this structure is the subnet. In OneFS, a subnet defines a layer 3 networking configuration, including an IP address range, a subnet mask, a gateway, and a VLAN ID. This allows a single cluster to participate in multiple different networks simultaneously. For example, a cluster could have one subnet for a high-performance 10GbE network used by a video editing team and a separate subnet for a 1GbE network used for general corporate file shares. This segmentation is crucial for managing traffic and security in complex enterprise environments.

Within each subnet, you configure IP address pools. An IP address pool is a range of IP addresses from its parent subnet that will be assigned to network interfaces on the nodes. This is where the configuration becomes powerful. A pool can be configured to include interfaces from all nodes in the cluster or only a specific subset of nodes. This allows for the creation of dedicated access zones. For instance, an SMB-only pool could be created on a specific set of nodes, while an NFS-only pool exists on another, isolating protocol traffic. The E20-555 Exam will test your ability to design these logical network layouts.

Finally, rules can be applied to these pools to govern how connections are made and how IP addresses are allocated. This includes setting the load balancing policy, which we will cover with SmartConnect, and determining how IP addresses are assigned to NICs (statically or dynamically). This layered approach provides immense control, but it also requires a clear understanding to configure correctly. Misconfiguring a subnet, pool, or rule can lead to connectivity problems that are difficult to diagnose. Mastering these fundamentals is essential for the E20-555 Exam.

Configuring SmartConnect for Load Balancing

SmartConnect is Isilon's client connection load balancing technology, and it is a core concept that every E20-555 Exam candidate must master. Its primary purpose is to simplify client access and distribute the connection workload evenly across the nodes in a cluster. Instead of having clients connect to individual IP addresses of the nodes, which would be an administrative nightmare, SmartConnect provides a single, stable hostname (the SmartConnect Zone Name) for the entire cluster. Clients mount their shares or exports using this single name.

When a client attempts to connect using the SmartConnect Zone Name, it performs a DNS query. The Isilon cluster, through a feature called the SmartConnect Service IP (SSIP), intercepts this query. The SSIP acts as an authoritative DNS server for that specific zone name. In response to the query, SmartConnect returns one of the IP addresses from the associated IP address pool, intelligently selecting an IP address of a node that is currently lightly loaded. This directs the new client connection to the most available node, thus balancing the load.

SmartConnect supports several load balancing policies, and knowing the difference is crucial for the E20-555 Exam. The most common policy is Round Robin, which simply cycles through the available IP addresses in the pool. Other policies include Connection Count, which directs new connections to the node with the fewest active TCP connections; Network Throughput, which selects the node with the lowest current network traffic; and CPU Usage, which directs clients to the node with the lowest CPU utilization. The choice of policy depends on the specific workload and performance goals.

Configuring SmartConnect involves defining the SmartConnect Service IP (a single IP from the subnet that will act as the DNS server), choosing an IP allocation method (static or dynamic), and selecting a load balancing policy for each IP address pool. Proper implementation also requires a delegation from the main corporate DNS server to the Isilon cluster for the specific zone name being used. Understanding this entire workflow, from the client's DNS query to the Isilon's intelligent IP response, is a fundamental skill for any Isilon specialist.

Managing IP Address Pools and Subnets

Effective management of subnets and IP address pools is a day-to-day administrative task and a key practical skill tested on the E20-555 Exam. As described, subnets are the top-level network containers that align with the physical or logical networks the cluster is connected to. When creating a subnet in OneFS, you must provide the network details accurately. A mistake in the subnet mask or gateway address will cause routing problems for all IP addresses defined within that subnet, potentially cutting off client access.

Within a subnet, you can create multiple IP address pools. This is where the logical organization of client access takes place. For example, you might create one pool for Windows clients using SMB and another for Linux clients using NFS. These pools can span the same group of nodes but have different SmartConnect policies or other settings tailored to the protocol. You can also use pools to create access tiers. A "premium" pool could be configured on a group of high-performance all-flash nodes, while a "standard" pool uses the hybrid nodes.

A powerful feature related to pools is the ability to control which nodes and which network interfaces participate. By default, a pool will use all available interfaces on all nodes within the specified subnet. However, you can create rules to restrict a pool to a specific set of nodes or even specific NICs on those nodes. This is useful for dedicating certain hardware resources to a particular workflow or department. An implementation engineer taking the E20-555 Exam must be able to design a pool and subnet layout that meets complex customer requirements for traffic isolation and performance.

The concept of IP address allocation within a pool is also important. A pool can be static, meaning IP addresses are permanently assigned to specific network interfaces on each node. Alternatively, it can be dynamic, where IP addresses can fail over to a different, healthy interface on the same node if the primary one fails. A more advanced option, dynamic failover, allows an IP address to move to an interface on a completely different node if the original node goes offline. Understanding the use cases and implications of these failover policies is critical for designing a high-availability solution.

Implementing the Network File System (NFS) Protocol

The Network File System (NFS) is a cornerstone protocol for providing file access to Linux and UNIX-based clients, and its configuration on an Isilon cluster is a major topic for the E20-555 Exam. OneFS provides robust support for multiple versions of NFS, including NFSv3 and NFSv4. Implementation involves enabling the NFS service on the cluster and then creating exports, which are specific directories within the /ifs filesystem that are made available to NFS clients.

Creating an NFS export requires careful attention to permissions and client access controls. When defining an export, the administrator must specify which clients are allowed to connect. This can be done by listing individual client IP addresses, subnets, or network names. It is also critical to configure user mapping. By default, the root user on a client machine is "squashed" to the anonymous "nobody" user for security reasons. The engineer must understand how to manage this behavior and how to configure OneFS to correctly map user identities between the NFS client and the cluster's authentication sources.

The E20-555 Exam will expect candidates to understand the nuances between NFSv3 and NFSv4. NFSv3 is a stateless protocol, which simplifies failover but can be less efficient. NFSv4 is stateful, introducing concepts like compound RPCs for better performance and stronger security mechanisms. OneFS supports both concurrently, but the configuration and client behavior can differ. For example, NFSv4 requires careful setup of an ID mapping domain to ensure user and group names are consistent between clients and the server.

Performance tuning is another key aspect of NFS implementation. OneFS provides several advanced settings that can be adjusted to optimize performance for specific workloads. This includes tuning the read and write transfer sizes and configuring the number of NFS server threads. A certified implementation engineer should be able to analyze a client's workload and make informed recommendations for these settings. A properly configured NFS export on an Isilon cluster can provide extremely high-performance file services for demanding applications in fields like electronic design automation and genomic sequencing.

Configuring the Server Message Block (SMB) Protocol

Server Message Block (SMB), also known as Common Internet File System (CIFS), is the standard protocol for file sharing in Windows environments. Given the prevalence of Windows in the enterprise, a deep understanding of SMB configuration on Isilon is mandatory for passing the E20-555 Exam. The process begins with joining the Isilon cluster to the customer's Active Directory domain. This step is essential for enabling user authentication and managing permissions using familiar Windows security principles.

Once the cluster is joined to AD, the administrator can create SMB shares. A share is a specific directory within /ifs that is published to Windows clients. When creating a share, the administrator must define both share-level permissions and filesystem-level permissions (NTFS ACLs). Share-level permissions control who can connect to the share itself (e.g., read-only or full control), while the NTFS ACLs provide granular control over individual files and folders within the share, specifying what actions specific users and groups can perform.

A key concept tested in the E20-555 Exam is the multiprotocol nature of Isilon. A directory can be exported via NFS and shared via SMB simultaneously. This requires careful management of permissions to ensure a consistent experience for users regardless of how they connect. OneFS has sophisticated mechanisms for mapping between the POSIX permissions used by NFS and the NTFS ACLs used by SMB. The administrator must choose a permissions model and understand how OneFS will handle identities and access rights for users coming from different environments.

OneFS also supports advanced SMB features. This includes support for SMB3 and its capabilities like SMB Multichannel, which allows clients to use multiple network connections to a share simultaneously for increased throughput and resiliency. It also supports features like Witness and Continuous Availability for use in Hyper-V environments. An implementation specialist must be aware of these features and know how to enable and configure them to meet specific application requirements, ensuring a seamless and high-performance experience for Windows users.

Integrating with Authentication Providers

Proper user authentication and identity management are critical for securing data on any enterprise storage system. The E20-555 Exam requires a thorough understanding of how to integrate an Isilon cluster with various external authentication providers. The most common provider in corporate environments is Microsoft Active Directory (AD). As discussed, joining the cluster to an AD domain allows OneFS to authenticate users and groups directly against the central AD database, enabling single sign-on and centralized user management.

In environments with Linux or UNIX systems, Lightweight Directory Access Protocol (LDAP) is often used. OneFS can be configured as an LDAP client, connecting to an external LDAP server to retrieve user and group information. This allows for centralized identity management for NFS clients. Similarly, NIS (Network Information Service) is another, older directory service found in some UNIX environments that OneFS can integrate with. The engineer must know how to configure the connection parameters for these providers, including server addresses, base DNs, and authentication credentials.

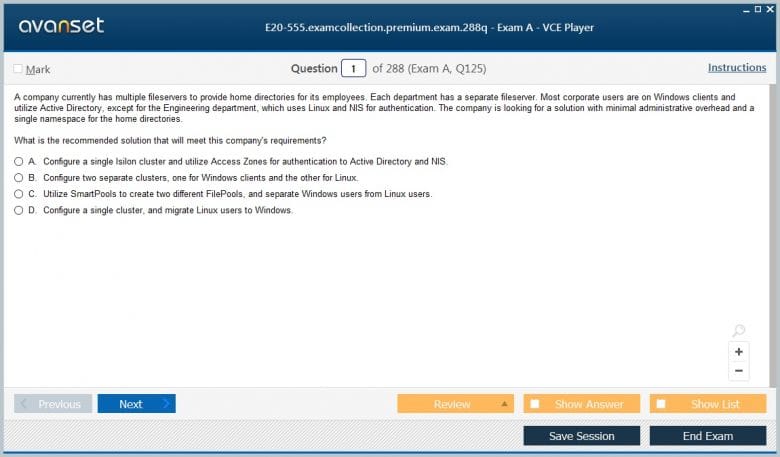

OneFS can be configured with multiple authentication providers simultaneously. The order in which these providers are queried is important and must be configured correctly. For example, the system could be set to check Active Directory first, then fall back to a local user database if the user is not found. This multi-provider capability is essential in heterogeneous environments where both Windows and Linux clients need to access the same data. The E20-555 Exam may present scenarios that require the candidate to design an authentication strategy for such a mixed environment.

A key component of this integration is the user mapping service within OneFS. This service is responsible for creating a unified access token for each user, containing their identity from various sources (e.g., their Windows SID, their UNIX UID/GID). This unified token is then used to make consistent access control decisions, regardless of the protocol the user is connecting with. Understanding how to configure and troubleshoot this identity management and user mapping process is a hallmark of a skilled Isilon implementation specialist.

Understanding Other Access Protocols

While NFS and SMB are the primary file access protocols, an Isilon cluster supports several others that an E20-555 Exam candidate should be aware of. The File Transfer Protocol (FTP) is a classic method for transferring files. OneFS includes a built-in FTP server that can be enabled to provide FTP access to the filesystem. This can be useful for legacy applications or simple bulk data transfer scenarios. The configuration involves enabling the service, setting the root directory for FTP users, and controlling anonymous access.

Hypertext Transfer Protocol (HTTP) can also be used to access files stored on the cluster. By enabling the HTTP service, directories within /ifs can be made accessible through a web browser. This can be a simple way to distribute files or host a basic website directly from the Isilon storage. Like other protocols, access can be controlled, and the service can be configured to listen on specific IP addresses or pools, allowing for the creation of dedicated web-serving zones within the cluster.

For big data and analytics workloads, the Hadoop Distributed File System (HDFS) protocol is critically important. OneFS can act as a native HDFS endpoint for Hadoop compute clusters (like Cloudera or Hortonworks). This allows organizations to run their big data analytics directly on the data stored on the Isilon, eliminating the need to copy massive datasets into a separate, dedicated HDFS cluster. This in-place analytics capability is a major advantage of Isilon, and the E20-555 Exam will expect an understanding of how to enable and configure HDFS access.

Finally, Isilon also supports protocols for object storage access, such as Amazon S3. This allows applications written for cloud object storage to interact with the Isilon cluster. While this may be a more advanced topic, awareness of the cluster's multiprotocol capabilities is important. An implementation engineer should be able to speak to the various ways data can be accessed and guide a customer on the best protocol to use for their specific application or workflow, demonstrating the breadth of knowledge required to pass the E20-555 Exam.
