Describe troubleshooting for network types, area types, and router types

OSPF permits accumulations of switches to be gathered together. Such a gathering is called a territory. Every zone runs a different duplicate of the fundamental connection state directing calculation. This implies that every territory has its own particular connection state database and comparing most brief way tree. The structure of a region is imperceptible from different regions. This confinement of learning makes the convention more adaptable if various zones are utilized; directing table count takes less CPU assets and steering movement is diminished. Nonetheless, multi-zone setups make extra intricacy. It is not proposed separate regions with less than 50 switches. The greatest number of switches in one region is basically subject to CPU power you have for directing table computation.



Neighbors are found by occasionally sending OSPF Hello bundles out of arranged interfaces. As a matter of course Hello parcels are conveyed with 10 second interim. This interim might be changed by setting hi interim. Switch takes in the presence of a neighboring switch when it gets the neighbor's Hello in exchange. The transmission and gathering of Hello parcels likewise permits switch to discover disappointment of the neighbor. On the off chance that Hello bundles are not gotten inside Dead interim (which as a matter of course is 40s) switch begins to course parcels around the disappointment. Hi convention guarantees that the neighboring switches concede to the Hello interim and Dead interim parameters, forestalling circumstances when not in time got Hello bundles erroneously cut the connection down.



Point-to-point, multipoint, broadcast, nonbroadcast

OSPF point-to-point non broadcast system sort is a non-standard gimmick. The extent it was acquainted by Cisco with help NBMA organizes that improves not help multicast (or to overcame restriction in utilizing OSPF point to multipoint arrange in the event that the system doesn't help multicast). Case in point Frame Relay system can have multicast PVC (and in that case you can utilize NBMA system sort or point-to-multipoint system sort) however, at any rate in nation, this peculiarity wasn't broadly underpinned. For this situation, designing an interface as OSPF point-to-multipoint system, OSPF process can't find neighbor on the grounds that OSPF neighbor disclosure is focused around multicast parcel. So Cisco provides for you 3 extra peculiarities to beat this issue:



Point to multipoint non telecast: for this situation you have a system sort fundamentally the same to RFC point-to-multipoint system sort however you can physically arrange neighbor's IP address and OSPF will send hi parcel utilizing you neighbor Unicast location instead of 224.0.0.5


Point to point: for this situation multicast backing is not an issue: all friendly activity is mapped to the PVC arranged for that interface, at layer 2 location in point to point system is pointless.


Show: for this situation IOS reenacts a telecast system duplicating each multicast parcel on all PVC related to an interface.


At the point when utilizing the system sort non show, which is the default for principle interfaces with edge hand-off empowered, a DR and BDR is chosen. At the point when utilizing a center and talked topology it is paramount that the center point is chosen the DR. Why is this? On the off chance that a spoke is chosen the DR the flooding procedure will fizzle. On show and non telecast portions the surge the LSAs to the DR/BDR and afterward the DR surges them to alternate on the portion. The steering has as of now been setup, R2 and R3 are publicizing a loopback every, they are 2.2.2.2/32 and 3.3.3.3/32 separately.



Point to multi point non broadcast:

In NBMA we arrange interface with "ip OSPF system point-to-multipoint non-show" then it is point-to-multipoint non-telecast mode. In this mode DR/BDR not required. Manually design Neighbor in both full and fractional work on the Hub. Spokes switches just know center switch as neighbor naturally and spokes ping different spokes without any issue even in halfway work. The conduct of point-to-multipoint is to promote each one end-bring up as a/32 and smother the notice of the system itself. Point-to-multipoint publicizes the end focuses to overcome conceivable reach ability issues between gadgets that are on the same sensible subnet yet don't have immediate correspondence (i.e. identifies with talked correspondence in a center point and nature's turf). The OSPF point-to-multipoint and loopback system sorts don't promote the system itself yet publicize a host course for each one end-point. This is according to the RFC.



Synchronization on the subnet

On show portion there are n*(n-1)/2 neighbor relations, it will be immense measure of Link State Updates and Acknowledgements sent over the subnet if OSPF switch will attempt to synchronize with every OSPF switch on the subnet.



This issue is fathomed by choosing one Designated Router and one Backup Designated Router for each one telecast subnet. All different switches are synchronizing and framing adjacencies just with those two chose switches. This methodology diminishes measure of adjacencies from n*(n-1)/2 to just 2n-1. Switches R1 and R2 are Designated Router and Backup Designated switch separately. Case in point, R3 needs to surge Link State Update (LSU) to both R1 and R2, switch sends LSU to IP multicast address All drouters (224.0.0.6) and just DR and BDR listens to this multicast address. At that point Designated Router sends LSU tended to All SPF routers, overhauling whatever is left of the switches.



LSA types, area type: backbone, normal, transit, stub, NSSA, totally stub

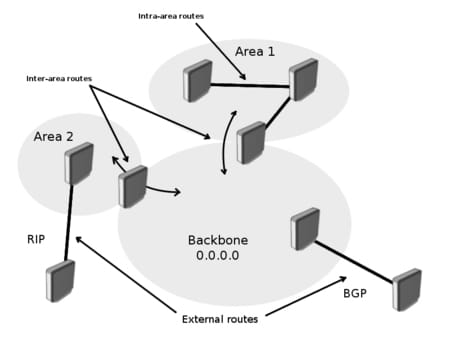

An OSPF system could be partitioned into sub-areas called zones. A range is a sensible gathering of OSPF systems, switches, and interfaces that have the same region ID.. A switch inside a region must keep up a topological database for the zone to which it has a place. The switch doesn't have nitty gritty data about system topology outside of its region, subsequently decreasing the measure of its database.


Territories restrict the extent of course data appropriation. It is unrealistic to do course overhaul sifting inside a region. The connection state database (LSDB) of switches inside the same region must be synchronized and be precisely the same; notwithstanding, course synopsis and separating is conceivable between diverse zones. The fundamental profit of making zones is a diminishment in the quantity of courses to proliferate by the separating and the synopsis of courses. Every OSPF organize that is isolated into distinctive regions must take after these tenets: A spine region which joins a set of autonomous regions into a solitary area must exist. Every non-spine region must be straightforwardly associated with the spine zone (however this association may be a basic sensible association through a virtual connection,). The spine zone should not be parceled partitioned into little pieces-under any disappointment conditions, for example, connection or switch down occasions.



Zones are recognized by a zone ID. Cisco IOS programming backings zone Ids communicated in IP location arrangement or decimal configuration, for instance, region 0.0.0.0 is equivalent to range 0. In the event that there are different territories in your system, you have to name the spine "zone 0". Since this spine associates the territories in your system, it must be an adjoining zone. On the off chance that the spine is parceled, parts of the self-ruling framework will be inaccessible, and you'll have to arrange virtual connections to repair the segment. A switch with interfaces in two (or more) diverse territories is a region outskirt switch. A region outskirt switch is in the OSPF limit between two zones. Both sides of any connection dependably have a place with the same OSPF territory.



Stub Area

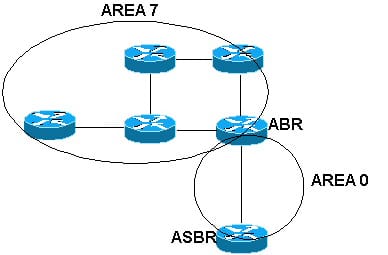

Utilize the territory xx stub charge in every switch in the region to characterize a zone as a stub range. In the topology indicated underneath, switches in territory 7 don't have to think about all the outer ends of the line. The switches in territory 7 must send a parcel to the ABR to achieve the ASBR, regardless of what the outer end. Territory 7 might be characterized as a stub region. To characterize region 7 as a stub zone, design the territory 7 stub charge in all switches around the routers.



Utilize the OSPF switch setup zone xx stub no-outline order to characterize a completely stub region. In the past system graph, switches in region 7 don't have to think about all outside goals or any outline LSA from the spine for different territories. The switches in region 7 must send bundles to the ABR to achieve any goal outside the range 7. Region 7 could be characterized as a completely stub zone. To characterize region 7 as a completely stub zone, arrange the range 7 stub no outline charge on the ABR.

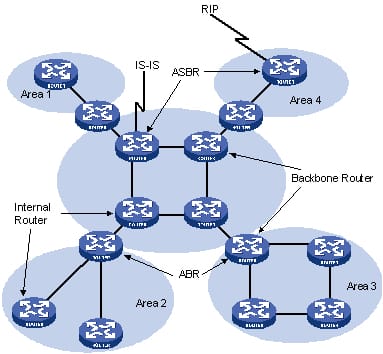

Internal router, backbone router, ABR, ASBR

Switches called Area Border Routers (ABR) have interfaces to various ranges. Abrs conservative the topological data for a zone and transmit it to the spine territory. Check Point underpins the execution of ABR conduct as laid out in the Internet draft of the Internet Engineering Task Force (IETF). The meaning of an ABR in the OSPF determination as illustrated in RFC 2328 does not oblige a switch with numerous joined ranges to have a spine association. Be that as it may, under this definition, any activity bound for ranges that are not associated with an ABR or that are outside the OSPF area is dropped. As indicated by the Internet draft, a switch is thought to be an ABR in the event that it has more than one range energetically joined and one of them is the spine territory. A zone is considered earnestly connected if the switch has no less than one interface around there that is not down. In this design, the group turns into a virtual switch, which is seen by neighboring switches as a solitary switch that has an IP address that is the same as the virtual IP location of the bunch.



Every part of the group runs the OSPF undertaking, however just the part which is assigned as essential or ace eagerly takes an interest in the system and trades directing data with neighbor switches. At the point when a failover happens, the standby part of the group turns into the expert and its OSPF assignment turns into the dynamic member in convention trades with neighbor switches. The brilliant control in any OSPF system is that all ranges must be adjoining or all regions must be joined with the spine. Situation 3-2 incorporates three ranges. On the off chance that a range can't be doled out to the spine or is divided from the spine, a virtual connection is needed. At the point when planning a system, you utilize a virtual connection to join zones that don't have a physical association with the spine or in cases in which the spine is divided.



Virtual link

All ranges in an Open Shortest Path First (OSPF) self-governing framework must be physically joined with the spine (Area 0). Sometimes, where this is unrealistic, you can utilize a virtual connection to interface with the spine through a non-spine region. You can likewise utilize virtual connections to associate two sections of an apportioned spine through a non-spine zone. The region through which you arrange the virtual connection, known as a travel zone, must have full directing data. The travel zone can't be a stub territory.



Operation of the virtual link

At first, the virtual connection is down on the grounds that Router1.1.1.1 does not know how to reach Router3.3.3.3 (the flip side of the virtual connection). The greater part of the connection state commercials (LSAs) in Area 1 need to be overwhelmed, and the most limited way first (SPF) calculation must be run inside Area 1 by each of the three switches, for Router1.1.1.1 to know how to reach Router3.3.3.3 through Area 1.


After the switches know how to achieve one another through the travel zone, they attempt to structure contiguousness over the virtual connection. The OSPF parcels between the two finishes of the virtual connection are not multicast bundles. They are burrowed bundles from source 5.0.0.1 to the goal 6.0.0.3, on the grounds that they are burrowed to the next end of the virtual connection. It is imperative to note that if there is a firewall in the middle of the virtual-join switches, you have to empower the OSPF (IP convention 89) port between the virtual-connection passage friendly interface Ips that are somewhere around 5.0.0.1 and 6.0.0.3. Once the switches get to be neighboring on the virtual connection, Router3.3.3.3 sees itself as a zone outskirt switch (ABR), on the grounds that it now has a connection in Area 0. Subsequently, Router3.3.3.3 makes a synopsis LSA for 12.0.0.0/8 in Area 0 and in Area 1. OSPF virtual connections are generally easy to design and you regularly don't run into an excess of issue getting them up and working yet an odd issue you could run into is when attempting to run the virtual connection over an interface at OSPF expense is amplified (65535 or 0xffff). The virtual connection won't come up if the interface to achieve the flip side of the virtual connection has a cost that is boosted.
