OSPF Packet Types

Open Shortest Path First, commonly known as OSPF, is one of the most widely deployed interior gateway protocols in modern networking. It operates within a single autonomous system and uses a link-state routing algorithm to determine the best paths for data to travel across a network. OSPF is standardized by the Internet Engineering Task Force and has gone through multiple versions, with OSPFv2 used for IPv4 and OSPFv3 designed for IPv6. The protocol is well regarded for its fast convergence, support for large hierarchical networks, and its ability to adapt quickly to changes in topology without counting to infinity like distance-vector protocols do.

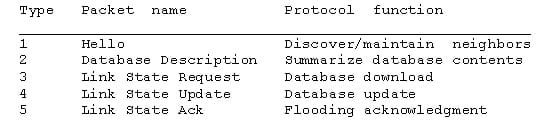

At the heart of OSPF lies a sophisticated communication mechanism built around five distinct packet types. Each packet type serves a specific role in the process of forming neighbor relationships, synchronizing databases, and maintaining accurate routing information. These packets are transmitted using IP protocol number 89 and are sent either as unicast or multicast messages depending on the network type and the stage of the adjacency formation process. Without these carefully designed packet types, OSPF would not be able to function as the reliable and scalable protocol that network engineers depend on every day.

What OSPF Actually Does

OSPF belongs to the family of link-state routing protocols, which means every router in an OSPF network maintains a complete map of the entire network topology. This map is stored in a structure called the link-state database, and it is built through the exchange of link-state advertisements. When a router boots up and joins an OSPF network, it does not immediately have this database populated. Instead, it must go through a series of steps involving neighbor discovery, database exchange, and database synchronization before it can calculate routes using the Dijkstra shortest path first algorithm.

The five OSPF packet types each correspond to a phase in this overall process. They work together in a coordinated sequence, and understanding each packet type in isolation helps paint a clearer picture of how the full protocol operates. These packet types are the Hello packet, the Database Description packet, the Link State Request packet, the Link State Update packet, and the Link State Acknowledgment packet. Each one carries a specific purpose, and each one appears at a predictable stage in the lifecycle of an OSPF adjacency.

The Common Packet Header

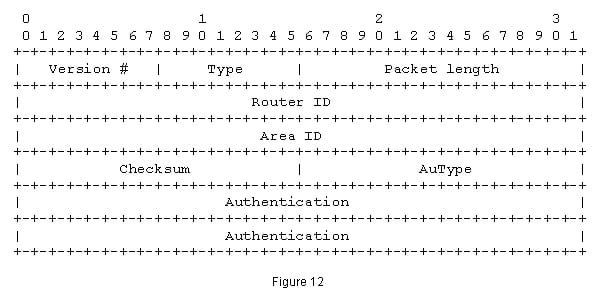

Before diving into individual packet types, it is important to recognize that all OSPF packets share a common header structure. This header is 24 bytes in length and appears at the beginning of every OSPF packet regardless of its type. The header contains several fields that give the receiving router enough context to process the packet correctly. These fields include the OSPF version number, the packet type identifier, the total packet length, the Router ID of the sending router, the Area ID to which the packet belongs, a checksum for error detection, the authentication type, and authentication data.

The Router ID is a 32-bit number that uniquely identifies a router within an OSPF domain. It is typically assigned as the highest IP address on the router or can be manually configured. The Area ID identifies the OSPF area from which the packet originates, allowing routers to properly scope the routing information they receive. The checksum ensures data integrity across the packet, and the authentication fields allow administrators to secure OSPF communications by requiring routers to prove their identity before their packets are accepted.

Hello Packets Begin Everything

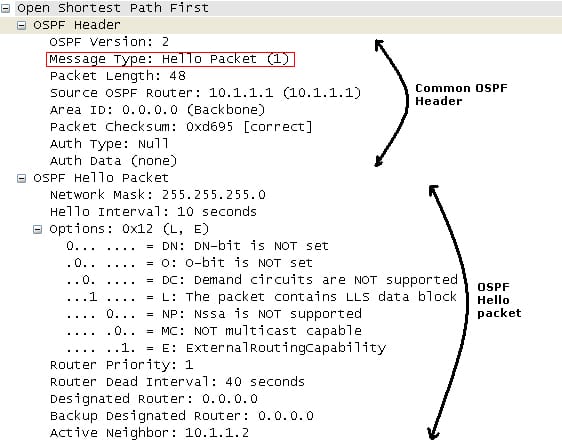

The Hello packet is the first of the five OSPF packet types and plays a foundational role in the entire OSPF process. It is assigned type code 1 in the OSPF packet type field. Hello packets are sent periodically by every OSPF-enabled interface and serve several important functions simultaneously. Most notably, they are responsible for discovering neighboring OSPF routers, establishing bidirectional communication between neighbors, and maintaining those relationships over time. If a router stops receiving Hello packets from a neighbor within a defined interval known as the dead interval, it declares that neighbor unreachable and removes it from its neighbor table.

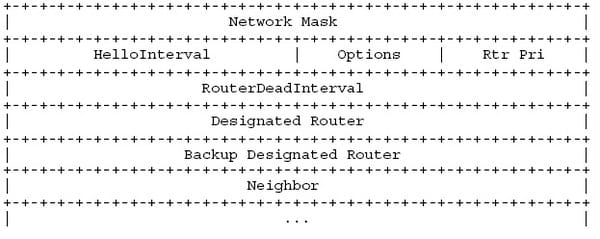

Hello packets are transmitted to the multicast address 224.0.0.5, which is reserved for all OSPF routers, on broadcast and point-to-point networks. On non-broadcast multi-access networks, they may be sent as unicast. The Hello packet contains several critical fields beyond the common header, including the network mask of the sending interface, the Hello interval and dead interval values, the Router Priority, the Designated Router and Backup Designated Router addresses, and a list of the sending router's known neighbors. Two routers can only form a neighbor relationship if their Hello and dead intervals match, along with several other parameters including the area ID and authentication settings.

Database Description Packets Explained

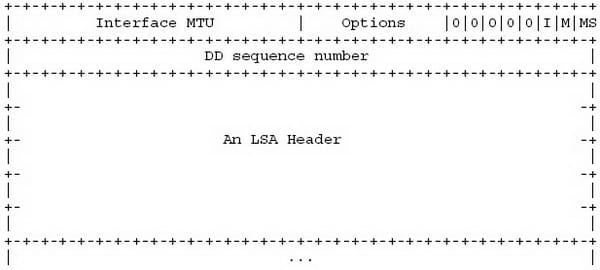

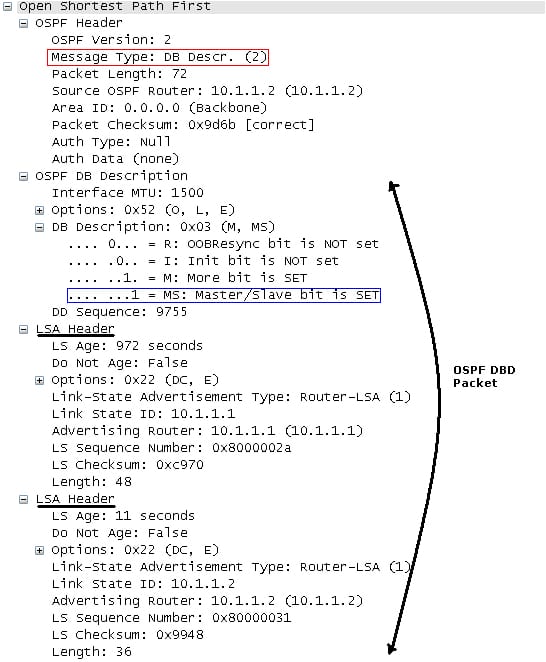

Once two OSPF routers have established a bidirectional neighbor relationship through Hello packet exchange, they progress to the next stage of adjacency formation. This stage involves the exchange of Database Description packets, which carry type code 2. The purpose of these packets is not to transfer the full contents of the link-state database, but rather to provide a summary of what each router currently has in its database. Think of them as a table of contents being exchanged between two routers so that each one can figure out what information the other has and what it might be missing.

The Database Description process follows a strict master-slave relationship. One router is elected as the master and the other becomes the slave based on their respective Router IDs, with the higher Router ID winning the master role. The master sends Database Description packets with a sequence number, and the slave must acknowledge each one before the master sends the next. This creates a reliable, ordered exchange of database summaries. Each Database Description packet contains a set of LSA headers, each 20 bytes in size, that describe the link-state advertisements currently held in the database. The receiving router compares these headers against its own database to identify any gaps.

Link State Request Process

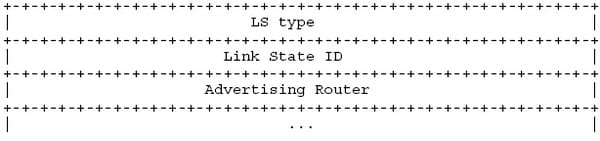

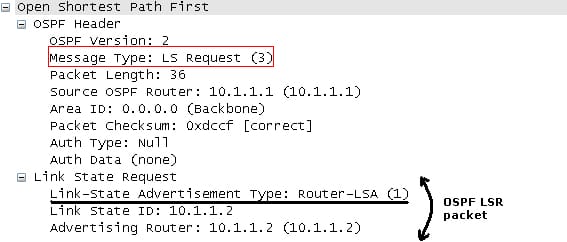

After the Database Description exchange is complete, each router now knows which LSAs the other router has that it does not. To fill in those gaps, the router sends a Link State Request packet, which carries type code 3. This packet is the mechanism by which a router formally asks its neighbor to send it specific LSAs. The Link State Request packet contains a list of LSA identifiers, and each identifier is made up of three fields: the LS type, the Link State ID, and the Advertising Router. Together, these three fields uniquely identify any LSA in an OSPF network.

A router may send multiple Link State Request packets if it needs many LSAs from its neighbor. The neighbor responds to these requests by sending Link State Update packets containing the actual LSA data. It is important to note that the router sending the request does not receive the LSAs immediately in a guaranteed fashion. If the requested LSAs are not received within a retransmission interval, the requesting router will resend its Link State Request to ensure nothing is lost. This retransmission mechanism adds a layer of reliability to what is otherwise an unreliable IP-based delivery system.

Link State Updates Carry Data

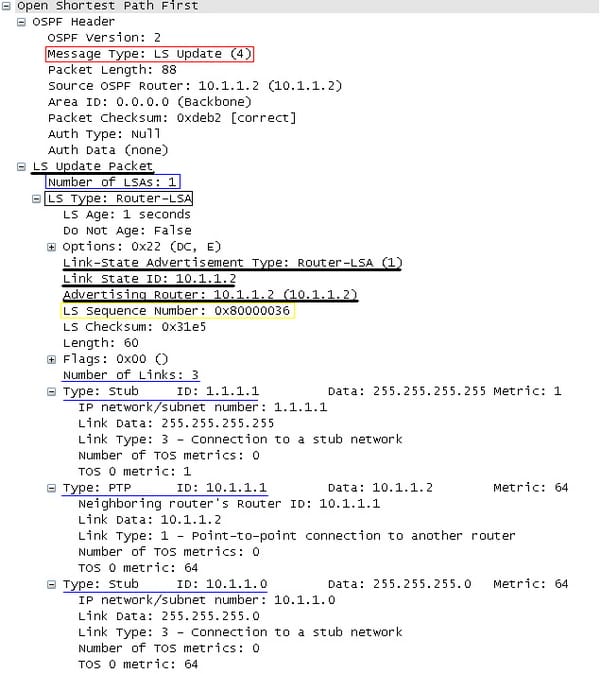

The Link State Update packet is arguably the most information-rich of all five OSPF packet types. It carries type code 4 and is responsible for distributing actual link-state advertisements throughout the OSPF network. These packets can be sent in two contexts. The first is in direct response to a Link State Request from a neighbor during the database synchronization process. The second is through the process of flooding, where a router sends new or updated LSA information to all of its neighbors so that changes in the network topology propagate quickly and reliably across the entire OSPF domain.

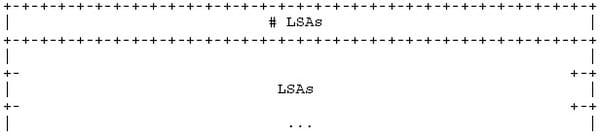

A single Link State Update packet can carry multiple LSAs simultaneously, which makes it an efficient vehicle for transmitting routing information. The packet begins with a count field indicating how many LSAs are contained within it, followed by the actual LSA data. Each LSA has its own header containing the LS age, various option flags, the LS type, the Link State ID, the Advertising Router, the LS sequence number, an LS checksum, and the length of the LSA. The sequence number is particularly important because it allows routers to determine whether they are looking at a newer or older version of an LSA when they receive one.

Flooding Mechanism In OSPF

The flooding process in OSPF is what allows topology changes to propagate efficiently across the network. When a router generates a new LSA or receives a newer version of an existing one, it must flood that LSA to all of its neighbors except the one from which it received the LSA. This process ensures that every router in an OSPF area eventually receives every LSA, resulting in all routers having an identical link-state database. The flooding scope depends on the LSA type, with some LSAs being flooded only within a single area and others being flooded across the entire autonomous system.

To prevent duplicate LSAs from circulating indefinitely, OSPF uses the LS sequence number and LS age fields. The sequence number increments each time a router generates a new instance of an LSA, so receiving routers can tell if they already have the latest version. The LS age field represents the time in seconds since the LSA was originated, and LSAs are considered expired once the age reaches a maximum value of 3600 seconds. Routers periodically refresh their own LSAs before they expire to keep the database current, and they discard LSAs that have aged out without being refreshed.

Link State Acknowledgments

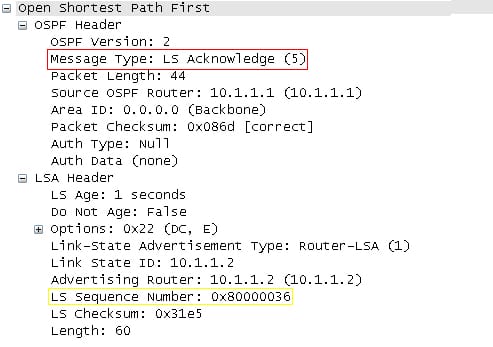

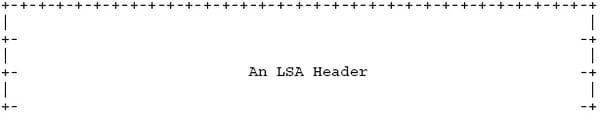

The fifth and final OSPF packet type is the Link State Acknowledgment, which carries type code 5. This packet exists to provide explicit confirmation that a router has received a Link State Update. Because OSPF runs over IP, which offers no delivery guarantees, OSPF must implement its own reliability mechanism for LSA distribution. The Link State Acknowledgment packet is that mechanism. When a router receives a Link State Update, it is required to send back an acknowledgment to the router that sent the update, confirming receipt of each LSA contained within the update.

Link State Acknowledgment packets can be sent in two forms. The first is a direct acknowledgment sent as a unicast to the router that sent the update. The second is a delayed acknowledgment sent as a multicast after a short waiting period. The delayed acknowledgment is more efficient because it allows a router to acknowledge multiple LSAs in a single packet rather than sending one acknowledgment per LSA received. On broadcast networks, delayed acknowledgments are sent to the multicast address 224.0.0.5 so that all neighboring routers on the segment can observe the acknowledgment. If a router does not receive an acknowledgment within the retransmission interval, it will resend the Link State Update until it gets one.

Designated Router Election Importance

On broadcast and non-broadcast multi-access networks, OSPF introduces the concept of the Designated Router and the Backup Designated Router. These special roles exist to reduce the number of adjacencies that need to be formed on a multi-access segment. Without them, every pair of routers on a broadcast segment would need to form a full adjacency with every other router, resulting in a combinatorial explosion of adjacencies as the number of routers grows. The Designated Router acts as a central point for LSA flooding on the segment, and all other routers form adjacencies only with the Designated Router and the Backup Designated Router rather than with each other.

The election of the Designated Router and Backup Designated Router takes place through the Hello packet exchange. Each router advertises its Router Priority value in its Hello packets, and the router with the highest priority wins the Designated Router election. If there is a tie, the router with the higher Router ID is selected. A Router Priority of zero means the router is ineligible to become a Designated Router. The Backup Designated Router takes over if the Designated Router fails, providing a measure of redundancy and ensuring that the network can recover quickly from the loss of the Designated Router without requiring a full re-election process from scratch.

OSPF Areas And Boundaries

OSPF supports a hierarchical network design through the use of areas. An area is a logical grouping of routers and links that share a common link-state database. All areas must connect to the backbone area, which is designated as Area 0. Routers that connect two or more areas are called Area Border Routers, and they maintain separate link-state databases for each area they belong to. This hierarchy reduces the size of each router's link-state database, limits the scope of flooding, and improves overall network scalability by containing topology changes within area boundaries.

The different LSA types play a direct role in how routing information flows between areas. Within a single area, Type 1 and Type 2 LSAs carry router and network information respectively and are confined to that area. Type 3 LSAs, generated by Area Border Routers, summarize routes from one area and advertise them into another. Type 4 and Type 5 LSAs are used to carry information about Autonomous System Boundary Routers and external routes learned from outside the OSPF domain. This division of LSA types by scope ensures that each router only processes the routing information relevant to its position in the network hierarchy.

Neighbor State Machine Steps

The OSPF neighbor relationship does not jump immediately from nonexistent to fully functional. Instead, it progresses through a series of states that collectively form the OSPF neighbor state machine. The states in this machine are Down, Attempt, Init, Two-Way, ExStart, Exchange, Loading, and Full. Each state represents a specific phase in the relationship between two routers, and the receipt of specific OSPF packet types drives the transitions between these states. Understanding this state machine gives a clear picture of how the five packet types work together in practice.

The Down state indicates that no Hello packets have been received from the neighbor. The Init state means that a Hello packet has been received but the receiving router's own Router ID has not yet appeared in that Hello packet's neighbor list. The Two-Way state is reached when the router sees its own Router ID listed in a Hello from the neighbor, confirming bidirectional communication. From Two-Way, routers decide whether to form a full adjacency based on the network type and their roles as Designated or non-Designated Routers. The ExStart, Exchange, Loading, and Full states correspond to the Database Description, Link State Request, and Link State Update exchanges that complete the adjacency formation process.

Retransmission And Reliability

OSPF does not rely on TCP for reliable delivery, yet it must ensure that LSAs are delivered reliably to all neighbors. It achieves this through a retransmission mechanism built into the protocol itself. When a router sends a Link State Update packet to a neighbor, it places each LSA contained in that update onto a retransmission list for that neighbor. The LSA remains on the retransmission list until the router receives a Link State Acknowledgment confirming its receipt. If no acknowledgment arrives within the retransmission interval, typically five seconds, the router resends the LSA.

This retransmission mechanism applies specifically to unicast LSA transmissions. For multicast transmissions on broadcast networks, the process is slightly different because acknowledgments are expected from all neighbors on the segment. If a router receives a duplicate LSA that it already has in its database with the same sequence number, it sends back an immediate acknowledgment to stop the sender from retransmitting unnecessarily. This combination of explicit acknowledgments and retransmission timers ensures that the link-state database remains consistent across all routers even in the presence of packet loss or network congestion.

Authentication Protecting OSPF Traffic

OSPF provides built-in authentication capabilities to protect against unauthorized routers injecting false routing information into the network. The authentication type field in the common OSPF packet header indicates which authentication method is in use, and the authentication data field carries the relevant credentials. OSPF supports three authentication types: null authentication meaning no authentication at all, simple password authentication using a plaintext password, and MD5 cryptographic authentication which is far more secure.

With MD5 authentication, each OSPF packet carries a message digest computed from the packet contents and a shared secret key. The receiving router independently computes the same digest using its copy of the key and compares it against the one in the packet. If they match, the packet is accepted; if not, it is discarded. This prevents unauthorized routers from participating in OSPF and also makes it difficult for attackers to inject or modify OSPF packets in transit. Modern implementations also support SHA-based authentication through OSPFv3, providing even stronger cryptographic protection for critical routing infrastructure.

OSPFv3 For IPv6 Networks

OSPFv3 is the version of OSPF designed to support IPv6 networks, defined in RFC 5340. While it shares the same fundamental concepts and packet types as OSPFv2, there are several notable differences in how the protocol operates. OSPFv3 uses IPv6 link-local addresses for neighbor communication rather than the interface IP addresses used in OSPFv2. It also removes IP addressing information from the LSA structures and instead introduces new LSA types specifically designed to carry IPv6 prefix information separately from the router topology data.

The five packet types in OSPFv3 retain the same type codes and basic purposes as their OSPFv2 counterparts, but the packet formats have been revised to accommodate IPv6. Authentication in OSPFv3 is no longer handled within the OSPF packet header itself; instead, it relies on IPv6 IPsec mechanisms to provide security. OSPFv3 also introduces the concept of instance ID in the common header, which allows multiple OSPF instances to run over the same physical link simultaneously. Despite these differences, the overall neighbor discovery, database exchange, and flooding mechanisms remain conceptually identical to OSPFv2, making the knowledge of OSPFv2 packet types directly applicable to OSPFv3 as well.

Packet Types In Troubleshooting

When network engineers encounter routing problems in OSPF networks, the five packet types serve as important diagnostic reference points. Many common OSPF issues can be traced back to problems with specific packet types. For instance, if two routers cannot form a neighbor relationship, the problem is almost certainly related to Hello packet mismatches. Checking the Hello and dead interval values, the area ID, the network mask on point-to-point links, and the authentication settings will resolve most Hello-related adjacency failures. Tools like packet captures and OSPF debug commands allow engineers to observe these packets directly and pinpoint discrepancies.

Issues during the database exchange phase, which involves Database Description and Link State Request packets, can result in routers becoming stuck in the Exchange or Loading states. These problems are often caused by MTU mismatches between neighbors, where one router fragments packets that the other cannot reassemble properly. Link State Update and Acknowledgment problems, on the other hand, may manifest as incomplete routing tables or routes that flap unexpectedly. By matching observed symptoms to the specific OSPF packet types involved in each phase of adjacency formation, engineers can quickly narrow down the root cause and apply the appropriate fix.

Performance Considerations With OSPF

OSPF is designed to scale to large networks, but it does place certain demands on router resources. The link-state database can grow quite large in networks with many routers and links, and the Dijkstra SPF algorithm that processes this database is computationally intensive. Every time the topology changes, routers must rerun the SPF calculation to update their routing tables. OSPF mitigates this through the use of SPF throttling timers, which introduce a delay between successive SPF runs to prevent excessive CPU consumption during periods of rapid topology change.

The frequency and volume of OSPF packet transmissions also affect network performance. Hello packets are sent at regular intervals on every OSPF-enabled interface, and LSA flooding can generate significant traffic during periods of instability. Tuning Hello and dead intervals, setting appropriate LSA arrival throttle timers, and using route summarization at area boundaries are all techniques that network engineers use to manage OSPF's resource consumption. In very large networks, further optimizations such as stub areas, totally stubby areas, and not-so-stubby areas can dramatically reduce the size of the link-state database and the number of LSAs that routers need to process, making OSPF practical even at enterprise and service provider scale.

Conclusion

OSPF packet types form the essential language through which OSPF routers communicate with one another. Each of the five packet types, the Hello, the Database Description, the Link State Request, the Link State Update, and the Link State Acknowledgment, plays a precisely defined role in the process of building and maintaining an accurate and consistent view of the network topology. Together, they enable routers to discover their neighbors, synchronize their databases, distribute topology changes in real time, and confirm the reliable delivery of critical routing information.

The Hello packet lays the groundwork for every OSPF relationship by enabling discovery and continuity. Without it, routers would have no way of knowing their neighbors exist or of detecting when those neighbors have gone offline. The Database Description packet makes the initial synchronization of the link-state database efficient by exchanging summaries rather than full data, allowing routers to identify gaps without redundant transmission. The Link State Request packet gives each router a precise mechanism to ask for exactly what it needs, avoiding the waste of broadcasting everything to everyone. The Link State Update packet carries the actual intelligence of the network, delivering LSAs that paint the complete topological picture that the SPF algorithm needs to compute optimal paths. Finally, the Link State Acknowledgment packet closes the reliability loop, ensuring that no LSA is ever quietly lost in transit.

Beyond the mechanics, what makes OSPF remarkable is how these five packet types work together in a disciplined, state-driven sequence to produce a result far more capable than any single packet type could achieve alone. The neighbor state machine ensures that routers move through each phase in the correct order, and the retransmission and acknowledgment mechanisms ensure that the process completes correctly even in unreliable network conditions. Authentication features protect the entire exchange from interference, and the area hierarchy limits the scope of each packet type to where it is relevant.

For network engineers, a firm grasp of OSPF packet types is not merely academic knowledge. It is a practical skill that enables faster troubleshooting, more informed design decisions, and a deeper appreciation for why OSPF behaves the way it does under different conditions. Whether you are configuring OSPF for the first time, diagnosing a stubborn adjacency issue, or designing a large multi-area network from scratch, the five packet types are always at the center of the story. They are the building blocks upon which one of the most robust and widely trusted routing protocols in the world is constructed, and knowing them thoroughly is indispensable for anyone working seriously with IP networks.
