How to Configure and Verify Cisco Netflow

Cisco NetFlow is a network protocol developed by Cisco Systems that enables routers and switches to collect and export detailed information about IP traffic flows passing through network interfaces. A flow in NetFlow terminology refers to a unidirectional sequence of packets that share common attributes such as source IP address, destination IP address, source port, destination port, IP protocol, and the ingress interface through which they entered the device. By capturing and exporting this metadata, NetFlow gives network administrators a granular, real-time view of traffic patterns, bandwidth consumption, application usage, and network behavior without requiring packet capture tools that would overwhelm storage and processing resources.

The technology was originally developed by Cisco engineers Darren Kerr and Barry Bruins in 1996 and quickly became an industry standard for network traffic analysis and monitoring. NetFlow data is exported from the network device to a dedicated collector server that stores, aggregates, and presents the flow records in a format that administrators can query and visualize. Modern NetFlow deployments support multiple versions of the protocol, with version 5 being the most widely deployed legacy format and version 9 being the flexible template-based format that became the foundation for the IETF standard known as IPFIX. Understanding what NetFlow does and how it fits into a broader network monitoring strategy is the essential first step before configuring it on any Cisco device.

NetFlow Versions Worth Knowing

Cisco NetFlow has evolved through several versions since its introduction, each bringing improvements in flexibility, supported protocols, and the types of traffic it can monitor. NetFlow version 1 was the original implementation and is rarely encountered in modern environments. Versions 2 through 4 were internal Cisco developments that were never widely released. NetFlow version 5 became the de facto standard for most network deployments and remains widely supported today because of its simplicity and the broad compatibility of collector software designed to receive its fixed-format records. Version 5 captures IPv4 flows with a fixed set of fields including source and destination addresses, ports, byte and packet counts, timestamps, and TCP flags.

NetFlow version 9 represented a major architectural shift by introducing a template-based record format that allows the exporting device to define which fields are included in each flow record. This flexibility made version 9 suitable for IPv6 traffic, multicast flows, MPLS-labeled traffic, and BGP next-hop information that version 5 could not accommodate. IPFIX, which stands for IP Flow Information Export, is the IETF standardization of the NetFlow version 9 concept and is now the preferred format for new deployments because it guarantees interoperability across vendors and collector platforms. Flexible NetFlow, which Cisco introduced as an enhancement to version 9, gives administrators even greater control over exactly which fields define a flow and which fields are collected as metrics, enabling highly customized monitoring configurations tailored to specific troubleshooting or security analysis requirements.

Hardware and Software Prerequisites

Before configuring NetFlow on a Cisco device, verifying that the hardware and software support the desired NetFlow version and configuration is an essential preliminary step. Not all Cisco router and switch platforms support every version of NetFlow, and some platforms have limitations on the number of interfaces that can have NetFlow enabled simultaneously or the volume of flow records they can process without impacting forwarding performance. Cisco IOS routers including the ISR G2, ISR 4000, and ASR 1000 series generally support both traditional NetFlow and Flexible NetFlow across their interfaces. Catalyst switches have more varied support, with some models requiring specific feature sets or supervisor engine hardware to enable NetFlow at line rate.

The IOS or IOS-XE software version running on the device determines which NetFlow features are available and how they are configured. Traditional NetFlow version 5 configuration syntax differs from the Flexible NetFlow configuration syntax introduced in newer IOS versions, and mixing the two approaches on the same device is not supported. Verifying the installed IOS version using the show version command and cross-referencing it against Cisco's feature navigator tool confirms which NetFlow capabilities are available before spending time on a configuration that the platform cannot support. Memory is also a consideration since NetFlow maintains a flow cache in device memory, and high-traffic interfaces generate large numbers of concurrent flows that can consume significant RAM if cache parameters are not tuned appropriately.

Configuring Traditional NetFlow Version 5

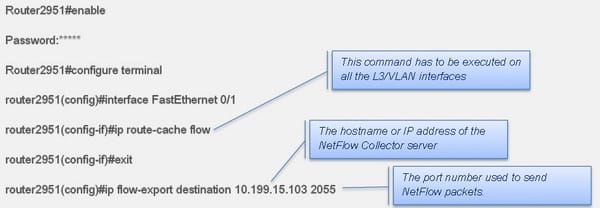

Configuring traditional NetFlow version 5 on a Cisco IOS router involves a small number of interface-level and global commands that are straightforward to apply once the prerequisites are confirmed. The first step is to enable NetFlow on each interface where traffic monitoring is desired by entering the interface configuration mode and applying the ip flow ingress command to capture flows entering the interface, the ip flow egress command to capture flows leaving the interface, or both depending on the monitoring requirements. Applying NetFlow to the ingress direction on all WAN-facing interfaces is the most common starting configuration for bandwidth monitoring and traffic analysis use cases.

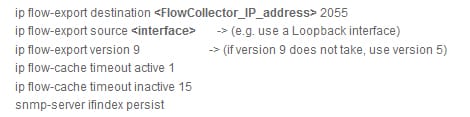

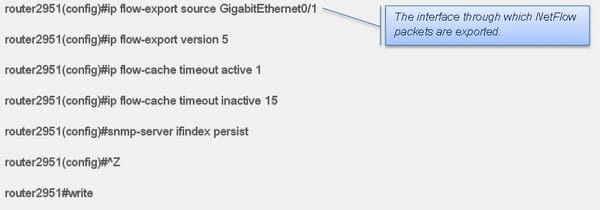

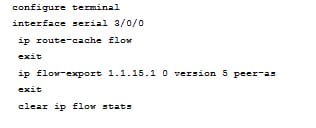

After enabling flow collection on the desired interfaces, the next step is to configure the export parameters that tell the router where to send the collected flow records. The global command ip flow-export destination followed by the IP address of the NetFlow collector and the UDP port number it is listening on establishes the export target. Port 2055 is the most commonly used UDP port for NetFlow collection, though many collectors support alternative ports. The ip flow-export version 5 command sets the export format, and ip flow-export source followed by a loopback interface name is a best practice that ensures flow exports use a stable source address that does not change if a physical interface goes down. Optional tuning commands include ip flow-cache timeout active to control how long an active flow is held before being exported and ip flow-cache timeout inactive to control how quickly idle flows are removed from the cache.

Flexible NetFlow Configuration Steps

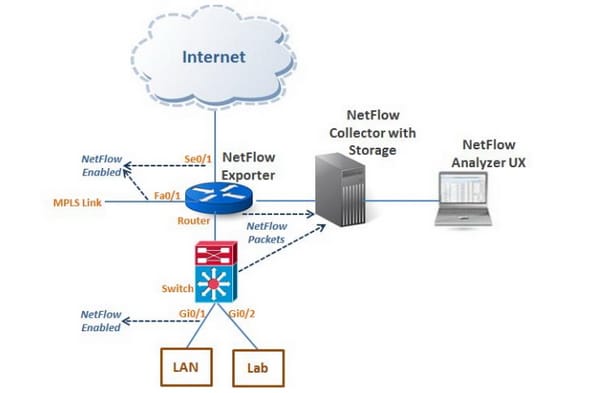

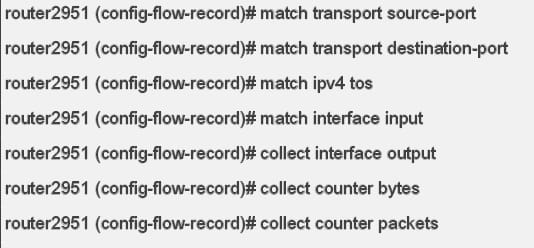

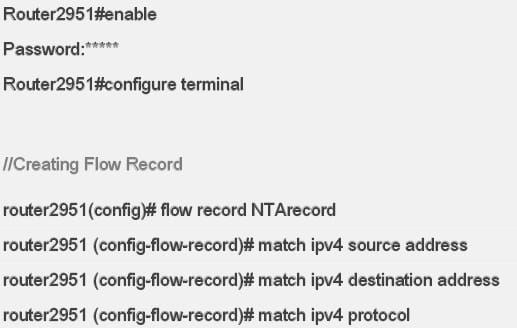

Flexible NetFlow configuration on Cisco IOS and IOS-XE devices follows a structured three-component approach involving flow records, flow exporters, and flow monitors that are defined separately and then combined before being applied to an interface. A flow record defines which packet fields are used as key fields to identify unique flows and which fields are collected as non-key fields that provide metrics about each flow. Creating a custom flow record begins with the flow record command followed by a name, then specifying match commands for key fields such as ipv4 source address, ipv4 destination address, transport source-port, transport destination-port, and ip protocol, followed by collect commands for non-key fields like counter bytes, counter packets, timestamp absolute first, and timestamp absolute last.

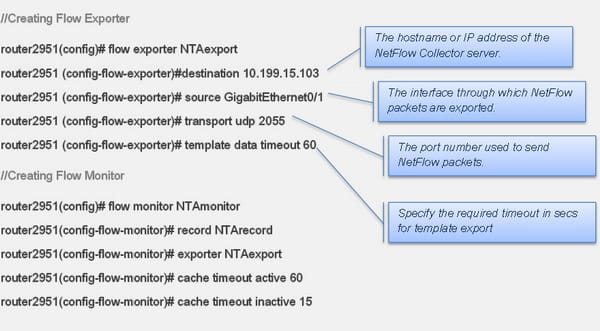

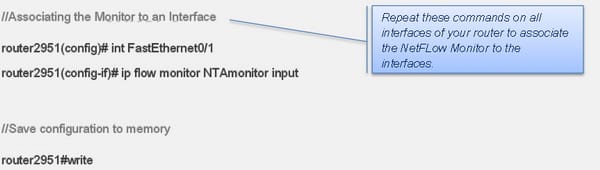

A flow exporter is configured using the flow exporter command followed by a name, then specifying the destination IP address with the destination command, the UDP port with the transport udp command, the export version with the export-protocol command set to either netflow-v9 or ipfix, and optionally the source interface. A flow monitor ties the record and exporter together by referencing the previously created flow record with the record command and the exporter with the exporter command, and optionally setting cache parameters like cache timeout active and cache timeout inactive. Once all three components are defined, the flow monitor is applied to a specific interface in either the ingress or egress direction using the ip flow monitor monitor-name input or ip flow monitor monitor-name output command within interface configuration mode. This modular approach makes Flexible NetFlow more verbose to configure than traditional NetFlow but significantly more powerful and adaptable.

Setting Up NetFlow Collector

A NetFlow collector is the server or application responsible for receiving UDP datagrams containing flow export records from one or more network devices, parsing those records according to the appropriate version format, storing the data in a database or flat file structure, and making it available for querying, visualization, and alerting. Without a properly configured collector, the flow records exported by the router are simply lost, making collector setup as important as the device configuration itself. Several excellent open-source and commercial collector options are available, and the right choice depends on the scale of the deployment, the required retention period, and the visualization and alerting capabilities needed.

ntopng with its nProbe companion is a widely used open-source option that supports NetFlow v5, v9, and IPFIX with a web-based dashboard that provides real-time traffic analysis and historical reporting. Elastiflow is another popular open-source solution built on the Elastic Stack that collects NetFlow and IPFIX data into Elasticsearch for powerful querying and visualization through Kibana dashboards. SolarWinds NetFlow Traffic Analyzer and Paessler PRTG are commercial options that offer polished interfaces and enterprise support for organizations that prefer managed solutions. Once the collector is installed and configured to listen on the appropriate UDP port, the network device's export destination should be pointed at the collector's IP address, and the collector logs should be monitored to confirm that flow records are arriving and being processed correctly.

Verifying NetFlow Configuration

After completing the NetFlow configuration on a Cisco device, verifying that flows are being captured and exported correctly is the critical next step that confirms the configuration is working as intended. The show ip flow interface command provides a quick overview of which interfaces have NetFlow enabled and in which directions, making it easy to confirm that the ip flow ingress and ip flow egress commands were applied to all intended interfaces. The output lists each NetFlow-enabled interface along with the direction of flow capture, giving administrators immediate confirmation that the monitoring scope matches the intended design without needing to review individual interface configurations manually.

The show ip cache flow command is the primary verification tool for traditional NetFlow deployments and displays the contents of the NetFlow flow cache including summary statistics and a sample of active flow records. The output includes the total number of active flows, the flow cache size, the number of flows exported since the last reset, and the export destination address and port. Reviewing this output confirms that flows are being detected and that export packets are being sent to the correct collector address. For Flexible NetFlow deployments, the equivalent command is show flow monitor name monitor-name cache, which displays the active flow cache for a specific named monitor along with all configured key and non-key fields, allowing administrators to verify that the correct fields are being captured for each flow.

Checking Export Statistics

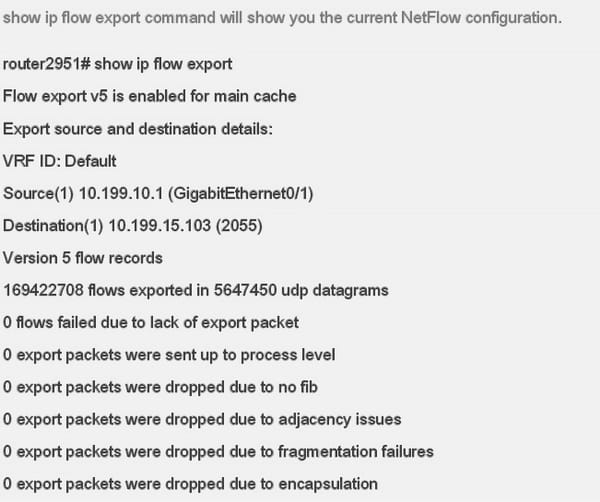

Verifying that flow records are not only being captured but also successfully exported to the collector requires examining the export statistics that Cisco devices maintain alongside the flow cache. The show ip flow export command for traditional NetFlow displays detailed export statistics including the configured export destination address and port, the export version in use, the source interface for export packets, the total number of flow records exported since the device last restarted or the statistics were cleared, the number of export packets sent, and importantly, the number of export failures. A non-zero export failure count indicates that the device is unable to reach the collector, which could be caused by a routing issue, a firewall blocking UDP traffic on the configured port, or an incorrect destination address.

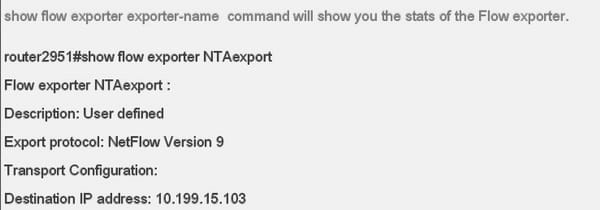

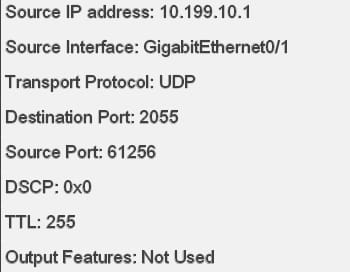

For Flexible NetFlow deployments, the show flow exporter name exporter-name statistics command provides equivalent export statistics for a specific named exporter, including packets sent, bytes sent, and any transport errors encountered. Comparing the flow export count visible on the device with the flow record count visible in the collector interface helps confirm end-to-end delivery and identify any packet loss between the device and the collector. If the device shows a high export count but the collector shows significantly fewer records, network path issues, UDP packet loss, or collector processing capacity limitations should be investigated. Clearing the export statistics using the clear ip flow stats command and then monitoring them over a short period of known traffic provides a clean baseline for verification during initial deployment and troubleshooting.

Tuning Flow Cache Parameters

The NetFlow flow cache is the memory structure on the network device where active flow records are stored before being exported to the collector. Proper tuning of cache parameters ensures that the device captures flows accurately without consuming excessive memory or exporting data at a rate that overwhelms the collector or the network path between them. The active flow timeout determines how long a continuously active flow is held in the cache before being exported, even if the flow has not yet ended. The default active timeout is typically 30 minutes for traditional NetFlow, which means long-lived TCP sessions like file transfers or streaming connections are only exported every 30 minutes. Reducing this value to 1 or 5 minutes provides more frequent updates to the collector and more timely visibility into ongoing flows.

The inactive flow timeout controls how quickly a flow record is exported and removed from the cache after the last packet belonging to that flow was seen. The default inactive timeout is typically 15 seconds, which means that a flow that stops generating traffic is exported within 15 seconds of its last packet. Reducing this value speeds up the detection of short-lived flows and reduces the memory footprint of the cache during periods of high flow churn, while increasing it can reduce export overhead for environments with many brief flows that benefit from being aggregated over a longer period. The cache size itself can be adjusted using the ip flow-cache entries command for traditional NetFlow, with the default typically set to 4096 entries. High-traffic environments may need this increased to 65536 or more to prevent cache overflow, which causes flows to be prematurely exported and can distort traffic analysis results.

Sampling NetFlow for Performance

On very high-traffic interfaces, enabling full NetFlow capture for every packet can impose a measurable processing burden on the router, potentially affecting forwarding performance on platforms that handle NetFlow in software rather than in dedicated hardware. NetFlow sampling addresses this by instructing the device to analyze only one out of every N packets rather than every packet, reducing the processing load proportionally while preserving a statistically representative view of the overall traffic pattern. Sampled NetFlow is configured using the ip flow-sampling-mode packet-interval command followed by the sampling interval value, where a value of 100 means one packet in every 100 is analyzed.

The trade-off of sampling is accuracy. Sampled NetFlow can reliably identify major traffic flows and bandwidth consumers but will miss low-volume flows that happen to fall between sampled packets, making it less suitable for security use cases that require detection of every connection attempt. For capacity planning and traffic engineering purposes where the goal is understanding aggregate bandwidth usage and top talkers rather than auditing every individual flow, sampling rates between 1-in-100 and 1-in-1000 are commonly used on high-speed interfaces. When using Flexible NetFlow, sampling is implemented by creating a flow sampler with the sampler command, specifying the sampling mode and rate, and then referencing that sampler in the flow monitor application command applied to the interface. Documenting the sampling rate in use is important for correctly interpreting flow data since byte and packet counts in sampled flow records must be multiplied by the sampling interval to estimate actual traffic volumes.

Troubleshooting Common NetFlow Issues

When NetFlow is configured but flow data is not appearing in the collector as expected, a systematic troubleshooting approach quickly isolates the cause. The first check is confirming that NetFlow is enabled on the correct interfaces and in the correct direction using show ip flow interface or the Flexible NetFlow equivalent. A common mistake is enabling NetFlow only in the ingress direction when the traffic of interest is outbound, or applying the configuration to the wrong interface entirely. Verifying the interface configuration against the network diagram ensures the monitoring scope is correct before investigating more complex issues.

If the interface configuration looks correct but the collector is still not receiving data, checking the export destination configuration using show ip flow export is the next step. Confirming that the destination IP address and UDP port match the collector's listening address and port eliminates the most common cause of export failures. A ping from the router to the collector IP address verifies basic reachability, and a more thorough test uses an extended ping sourced from the same loopback interface configured as the NetFlow export source to confirm that the collector is reachable from the exact source address the router will use for export packets. If pings succeed but exports still fail, a firewall or access control list between the router and the collector blocking UDP traffic on the configured export port is the most likely culprit and should be investigated by reviewing security policies on any intermediate devices.

NetFlow Security Use Cases

Beyond its traditional role in bandwidth monitoring and capacity planning, NetFlow data is an increasingly important tool for network security analysis and incident response. Because NetFlow records every communication between every pair of IP addresses on the network, it creates a comprehensive audit trail of network behavior that security teams can query to investigate suspicious activity, trace the spread of malware, identify data exfiltration, and detect unauthorized access attempts. Unlike full packet capture, which requires enormous storage and raises privacy concerns, NetFlow metadata captures the who, when, and how much of every network conversation without capturing the actual content of the traffic, making it a legally and operationally practical approach to continuous network monitoring.

Anomaly detection based on NetFlow data involves establishing baselines of normal traffic behavior and alerting when deviations occur. A sudden spike in outbound traffic volume from a server that normally generates minimal outbound data could indicate data exfiltration. An internal host making connection attempts to hundreds of different IP addresses in a short time period is exhibiting behavior consistent with network scanning or a worm spreading through the environment. A device communicating with a known malicious IP address identified through threat intelligence feeds is an immediate indicator of compromise. Security information and event management platforms that ingest NetFlow data alongside log data from firewalls, endpoints, and applications give security teams a powerful correlation capability that makes investigating these anomalies significantly faster and more effective than relying on any single data source alone.

Best Practices for Deployment

Deploying NetFlow effectively across an enterprise network requires thoughtful planning around which devices to monitor, which interfaces to enable, how to manage the volume of exported data, and how to ensure the monitoring infrastructure remains reliable and scalable as the network grows. A common best practice is to enable NetFlow on all WAN and internet-facing interfaces as a minimum baseline, since these are the points where external traffic enters and leaves the network and where bandwidth visibility and security monitoring deliver the most immediate value. Core routing infrastructure connecting major network segments is the next priority, providing visibility into internal traffic flows between different parts of the organization.

Documenting the NetFlow configuration thoroughly, including which interfaces are monitored, which export destinations are configured, the export version in use, and the cache timeout values applied, ensures that the monitoring setup can be reproduced after device replacement and reviewed during troubleshooting. Storing this documentation in a network management system or configuration management database alongside the device configurations themselves keeps it current and accessible. Regularly reviewing the collector storage capacity and query performance as flow data accumulates prevents the collector from becoming a bottleneck that degrades the monitoring capability the investment in NetFlow configuration was designed to create. Testing the entire NetFlow pipeline periodically by generating known traffic and verifying it appears correctly in the collector confirms that the end-to-end monitoring chain remains functional and has not been silently broken by a configuration change or infrastructure update.

Conclusion

Configuring and verifying Cisco NetFlow is a skill that pays dividends throughout a network engineer's career because traffic visibility is fundamental to every aspect of network operations from capacity planning and performance troubleshooting to security monitoring and compliance reporting. The configuration steps covered in this guide, from enabling flow capture on interfaces and configuring export destinations through verifying cache contents and export statistics, provide a complete foundation for deploying NetFlow in both simple and complex network environments. Whether working with the straightforward syntax of traditional NetFlow version 5 or the more powerful but verbose configuration model of Flexible NetFlow, the underlying principles remain consistent and the verification approach follows the same logical sequence of confirming each component of the pipeline in turn.

The value of NetFlow data grows proportionally with the consistency and completeness of its deployment. A NetFlow implementation that covers only some interfaces or that suffers from silent export failures creates blind spots that undermine the confidence network teams place in the data. Investing time in thorough verification, systematic troubleshooting of any issues discovered during initial deployment, and ongoing monitoring of the collection infrastructure ensures that the NetFlow data flowing into the collector accurately represents the traffic flowing through the network. Security teams that learn to incorporate NetFlow data into their investigation workflows, operations teams that use it for capacity planning and application performance analysis, and architects that reference historical flow data when designing network changes all benefit from a well-implemented NetFlow deployment that has been configured carefully and verified rigorously from the start.
