Describe the process of managing Cisco IOS Files

Understanding and knowing about the Cisco iSO files is very important. The reason is that one would have to work every day with the routers and Cisco is the major company which is dealing in it. So, here are the ways how you can get to know what a Cisco iOS is and what files it has;

Cisco IOS (initially Internetwork Operating System) is programming utilized on most Cisco Systems switches and current Cisco system switches. (Prior switches ran Cato's.) IOS is a bundle of routing, exchanging, internetworking and information transfers capacities incorporated into a multitasking working system. Cisco IOS is formed utilizing three numbers and a few letters, in the general structure a.b (c.d) e, where:

  • "A" is the significant version number.
  • "B" is the minor version number.
  • "C" is the discharge number, which starts at one and additions as new discharges in the same A and B train are discharged. "Train" is Cisco-represent, "...a vehicle for conveying Cisco programming to a particular set of stages and peculiarities..."
  • "D" (overlooked from general discharges) is the break manufacture number.
  • "E" (zero, one or two letters) is the product discharge train identifier, for example, none (which assigns the mainline, see beneath), T (for Technology), E (for Enterprise), S (for Service supplier), XA as an exceptional usefulness train, XB as an alternate unique usefulness train, all renditions of the Cisco's IOS, bundle routing and sending (exchanging) are different capacities. Routing and different protocol runs as the Cisco IOS procedures and help the Routings Information Basis (RIB). This is handled to produce the last IP sending table, which is utilized by the sending capacity of the switch. On switch stages with programming just sending most movement taking care of, including the access control rundown sifting and sending, is carried out at intrude on level utilizing Cisco's Express Forwarding or the DCEF. This implies IOS don't need to perform a procedure connection switch to pass on a bundle. Routing capacities, for example, BGP or OSPF run at the methodology level. In switches with equipment based sending, for example, the Cisco 12000 arrangement, IOS registers FIB in programming and burdens it in the sending fittings, which performs the real parcel sending capacity.

Cisco's IOS contains a "solid" structural planning, which implies that it performs as a solitary picture and all courses of action have the same type of memory space. Also, there exists no memory security between methods, which implies that problems in IOS codes can conceivably degenerate information utilized by different methodologies. It likewise has a hurried to finish scheduler, which implies that the piece does not acquire a running methodology - the procedure should make a portion call before different courses of action get an opportunity to run. For the Cisco items that obliged high accessibility, for example, the Cisco's CRS-1, these limits were not satisfactory. Also, aggressive switch working frameworks that rose 2 decades after IOS, for example, Juniper's JUNOS, were outlined not to contain those limitations. Cisco's reaction was to create another adaptation of Cisco IOS known as IOS XR which offered seclusion and memory insurance between procedures, lightweight strings, preemptive planning and the capability to autonomously restart fizzled methods. The microkernel structural planning expels from the bit all techniques which are not totally needed to perform in the portion, and executes those as methods like the application forms. Through this strategy, IOS XR can attain the high accessibility sought for a new switch stage. In this manner IOS and the IOS's XR, are altogether different codebases, however related in usefulness and outline. In year 2005, Cisco presented IOS's XR version on Cisco 12000 arrangement stage, amplifying the microkernel construction modeling from the CRS-1 version to the Cisco's generally sent center switch. In 2006, the Cisco has made accessible IOS Software Modularity which develops the QNX's microkernel into a more protocol nature, yet at the same time giving the product overhaul abilities that clients are requesting. It is presently accessible on the Catalyst 6500 venture switch. Cisco IOS has been demonstrated powerless against support floods and different issues that have harassed other working frameworks and applications. Since IOS needs to know the cleartext secret key for specific uses, (e.g., CHAP verification) passwords entered into the CLI as a matter of course are pitifully encoded as 'Sort 7' ciphertext, for example, "Router(config)#username jdoe watchword 7 0832585b1910010713181f". This is intended to avert "shoulder-surfing" assaults when seeing switch designs and is not secure - they are effectively decoded utilizing programming called "getpass" accessible since 1995, or "iOS7crypt", an advanced variation, despite the fact that the passwords might be decoded by the switch utilizing the "key chain" command and entering the sort 7 secret word as the key, and afterward issuing a "show key" order; the above illustration unscrambles to "stupidpass". However, the system won't unscramble 'Sort 5' passwords or passwords set with the secret password change, which uses salted Md5 hashes.

Cisco proposes that all Cisco IOS gadgets execute the verification, approval, and bookkeeping (AAA) security model. AAA can utilize neighborhood, RADIUS, and Tacacs+ databases. Notwithstanding, a neighborhood record is normally still needed for crisis situations.

At the Black Hat Briefings gathering in July 2005, Michael Lynn, working for Internet Security Systems at the time, displayed data around a weakness in IOS. Cisco had effectively issued a patch, however asked that the imperfection not be disclosed. Cisco documented a claim, yet settled after an order was issued to anticipate further disclosure.

Boot Preferences

Here is the way through which you can ensure that the router has been booted up;

  1. The switch is on.
  2. The bootstrap program (Rommon) in ROM runs Power-On Self-Test (POST)
  3. The bootstrap checks the Configuration Register worth to tag where to load the IOS. Of course (the default estimation of Configuration Register is 2102, in hexadecimal), the switch first searches for "boot framework" orders in startup-config document. In the event that it discovers these charges, it will run boot framework commands in place they show up in startup-config to find the IOS. If not, the IOS picture is stacked from Flash. On the off chance that the IOS is not found in Flash, the bootstrap can attempt to load the IOS from TFTP server or from ROM (scaled down IOS).
  4. After the IOS is discovered, it is stacked into RAM.
  5. The IOS endeavors to load the design record (startup-config) from NVRAM to RAM. On the off chance that the startup-config is not found in NVRAM, the IOS endeavors to load an arrangement record from TFTP. In the event that no TFTP server reacts, the switch enters Setup Mode (Initial Configuration Mode).

Also, to figure out which manifestation of this commands to utilize, allude to the documentation for your stage or utilize the CLI help (?) characteristic.

Utilize this order just when your switch can't discover the boot arrangement data required in NVRAM. To enter ROM screen mode, utilize one of the accompanying strategies:

  1. Enter the reload EXEC charge, and then press the Break key amid the initial 60 seconds of startup.
  2. Set the design register bits 0 to 3 to zero (for instance, set the arrangement register to 0x0) and enter the reload charge.
  3. The ROM Monitor brief is either ">" or, for more current stages, "rommon x>". Enter just lowercase commands.
  4. These charges work just if there is a substantial picture to boot. Additionally, from the ROM screen brief, issuing a former reset order is vital for the boot to be reliably effective.
  5. Allude to your fittings documentation for data on right jumper settings for your platform.

Cisco IOS mages:

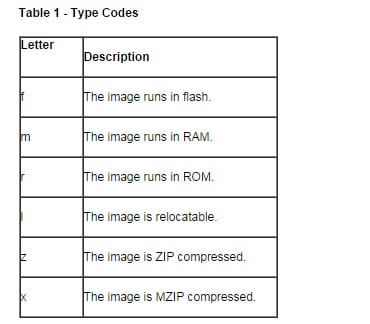

A vital ability for Cisco system specialists to have is the capability to accurately perform a picture overhaul/redesign. Albeit numerous entrance level designers may not have the opportunity to overhaul numerous generation switches, it is an indispensable ability to have as a system engineer on the grounds that it will in the long run be approached (either when a redesign is occurring or when a switch is, no doubt set or supplanted). This article blankets the diverse picture sorts that exist on most Cisco supplies, Cisco's picture naming structure, and how to perform picture overhauls/upgrades.on most Cisco stages, two separate pictures are held inside a gadget. A boot picture (likewise alluded to as the xboot, bootstrap, or the bootloader) and the framework picture (the complete IOS picture). The boot picture is a subset of the Cisco IOS programming that is utilized when system booting when stacking IOS pictures onto a gadget or when the framework picture has been undermined. Contingent upon the stage, the boot picture could be contained inside ROM or glimmer memory. The framework picture is utilized when the gadget is as a part of a "typical" working state and is commonly contained inside blaze memory (paying little mind to glimmer area [device building glimmer, slot0, space 1, thus on).the Cisco IOS picture naming structure could be a confounding chaos of distinctive letters if the designer is not acquainted with the different capabilities from every stage. The structure of the IOS picture is commonly platform: featureset: type. The stage is generally a short representation of the model sort; for instance, the 7206 model is spoken to with a stage of c7200. The feature set speaks to what kind of peculiarities is incorporated in a particular picture. (This could be a bit of confounding on the grounds that the feature sets accessible change between stages. For instance, the 7206 Advanced Enterprise Services Image would have the picture feature set representation of adventerprisek9, where "adventerprise" = Advanced Enterprise Services and "k9" = solid encryption). The sort speaks to the qualities of the picture itself (for instance, whether it is expected to be put away in glimmer, RAM, or ROM). The accompanying table demonstrates the diverse conceivable outcomes for sort (for instance, the same 7206 picture has a kind of mz, which implies it is run from RAM and ZIP layered).

Here are the commands for various versions;

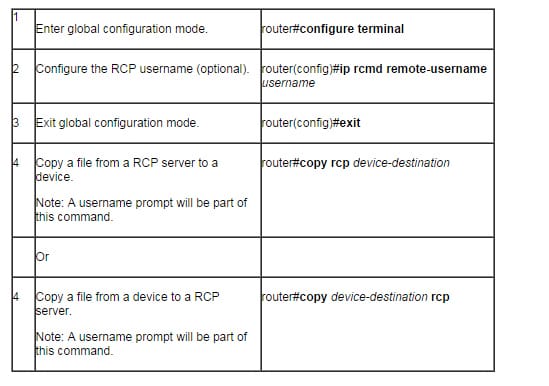

For RCP:

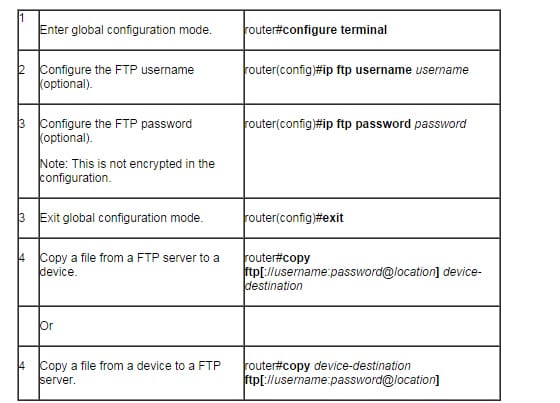

For FTP:


There are two types of licensing which are provided, first is the trial version which means it would be able to function fully only for 60 days and the other if permanent which would run for ever. To know about licensing, one can go to cisco's website too. The Cisco Support site gives far reaching online assets, including documentation and apparatuses for troubleshooting and determining specialized issues with Cisco items and innovations. Access to most apparatuses on the Cisco Support site obliges a client ID and secret key. In the event that you have a legitimate administration contract however don't have a client ID or secret word, you can enlist on Complete the accompanying steps to forever actuate a product bundle or peculiarity on the switch:

1- Purchase the product bundle or gimmick that you need to introduce. You get a PAK with your buy.

The PAK is given to you when you request or buy the right to utilize a list of capabilities for a specific stage.

The PAK serves as a receipt and is utilized as a feature of the methodology to get a permit

2-Get the permit document utilizing one of these choices:

Alternative 1: Cisco License Manager. It is a free programming application. Here what you will do is convert the PAK to a permit by entering the PAK and the novel gadget identifier (UDI) into the CLM or Cisco Product License Registration entrance UDI has two primary segments: the PID and the serial

I. Show license

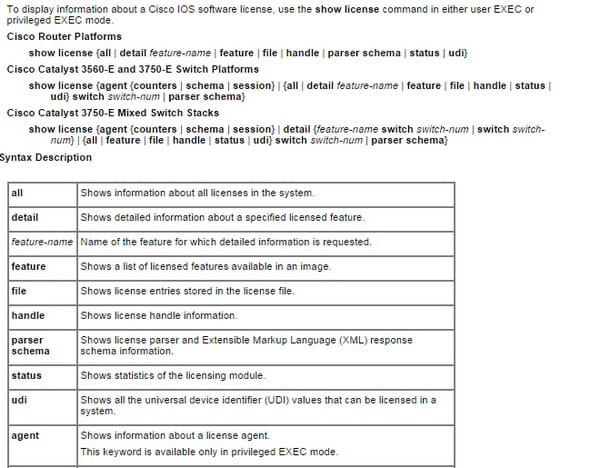

This is how you can see the information about license:

II. Change license

To change the license, it must be cleared first and then has to be installed. It can be done through following commands;

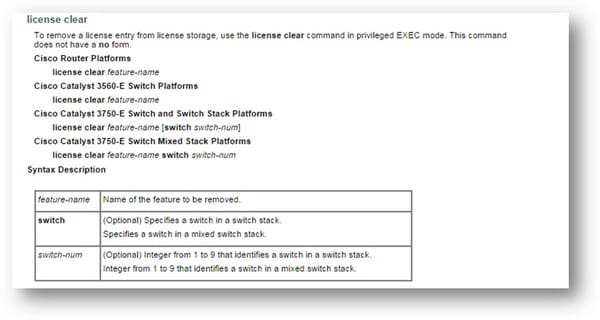

To clear License:

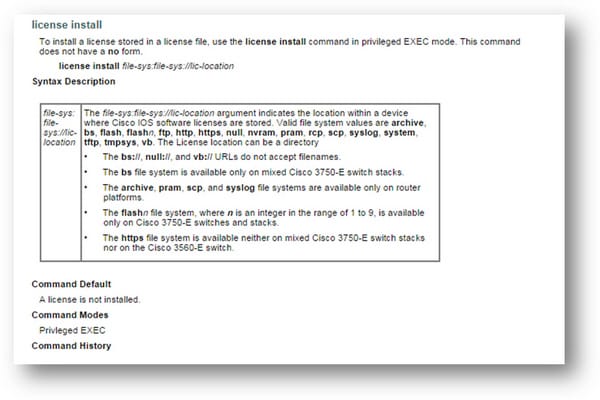

To install license:

Knowing about the Cisco iSO is very important. One must also know about the types of images an ISO has. Also, the major thing is that one must know about licensing too because install and clearing out the old licensee is can tricky since it involved two steps. Through learning this all, one can master the cisco's ISO files format and the workings.
