Components of Laptop Display

The display panel is the most fundamental component of any laptop screen, and it determines the overall visual quality, color accuracy, viewing angles, and power consumption of the entire display system. Three main panel technologies dominate the laptop market today: Twisted Nematic, In-Plane Switching, and Vertical Alignment. Each technology uses liquid crystals arranged in different orientations to control how light passes through the panel, and each offers a distinct combination of performance characteristics that make it suitable for different use cases and user preferences.

Twisted Nematic panels are the oldest and most affordable of the three technologies, offering fast response times and low power consumption at the cost of narrow viewing angles and limited color reproduction. In-Plane Switching panels deliver significantly wider viewing angles and more accurate color reproduction, making them the preferred choice for creative professionals who need consistent color across the entire screen. Vertical Alignment panels offer the deepest black levels and highest contrast ratios of the three, producing rich, vivid images that are particularly impressive for movie watching and media consumption on a laptop display.

Backlight Illumination System

The backlight is the light source positioned behind the liquid crystal panel that illuminates the display from behind, allowing the image to be visible to the viewer. Without a backlight, the liquid crystals in an LCD panel would be invisible because they do not produce their own light. Modern laptops almost universally use LED backlighting, which replaced the older cold cathode fluorescent lamp technology due to its superior energy efficiency, thinner form factor, longer lifespan, and better brightness uniformity across the screen surface.

Edge-lit LED backlighting places LED strips along the edges of the display, typically at the top, bottom, or sides, and uses a light guide panel to distribute the light evenly across the entire screen. This approach allows for extremely thin display assemblies but can sometimes result in uneven brightness near the edges. Full-array LED backlighting places LEDs across the entire back surface of the panel, which produces more uniform illumination and supports local dimming zones that can selectively reduce brightness in dark areas of the image to improve contrast. Full-array backlighting is less common in laptops due to thickness constraints but is found in premium high-performance display models.

Liquid Crystal Display Layer

The liquid crystal layer is the functional heart of an LCD laptop display, situated between two glass substrates and responsible for controlling how much light from the backlight passes through to create the image on screen. Liquid crystals are materials that exhibit properties of both liquids and solid crystals, and their molecular orientation can be precisely controlled by applying electrical voltage. When voltage is applied to a specific area of the liquid crystal layer, the crystals in that area rotate to either block or allow light to pass through, creating the pixels that form the visible image.

The liquid crystal layer works in combination with two polarizing filters, one placed in front of the layer and one behind it. Light from the backlight passes through the rear polarizer, travels through the liquid crystal layer where its polarization is rotated by a controlled amount, and then passes through the front polarizer. The amount of rotation applied by the liquid crystals determines how much light gets through the front polarizer, controlling the brightness of each individual pixel. This elegant optical mechanism allows millions of pixels to be independently controlled to create detailed, dynamic images with smooth gradations of brightness and color across the entire display.

Color Filter Array System

The color filter array is a thin layer of microscopic colored filters applied to the LCD panel that enables the display to reproduce a full spectrum of colors rather than just shades of gray. Each pixel on the display is divided into three sub-pixels, one covered by a red filter, one by a green filter, and one by a blue filter. By independently controlling the brightness of each sub-pixel through the liquid crystal layer beneath it, the display can mix red, green, and blue light in varying proportions to produce virtually any color that falls within the panel's color gamut.

The quality of the color filter array directly influences the color accuracy and gamut coverage of the laptop display. Standard color filter arrays cover the sRGB color space, which is sufficient for general computing, web browsing, and video streaming. Premium displays use wider gamut color filters that cover DCI-P3 or Adobe RGB color spaces, enabling more saturated and accurate color reproduction that is essential for photographers, video editors, and graphic designers. The precision with which the color filters are manufactured determines how accurately the display can hit specific target colors, which is why professional-grade displays undergo factory calibration to minimize color deviations across the panel.

Thin Film Transistor Circuit

The thin film transistor layer is an active matrix of microscopic transistors embedded in the glass substrate of the LCD panel, with one transistor assigned to control each individual sub-pixel on the display. This active matrix design allows each pixel to be addressed and controlled independently and rapidly, which is what enables modern displays to refresh smoothly at high frame rates without the ghosting or blurring associated with older passive matrix technologies. The TFT layer is what transforms a simple liquid crystal sheet into a precise, addressable display capable of rendering complex, rapidly changing images.

Each transistor in the TFT layer acts as a switch that controls the voltage applied to its corresponding liquid crystal cell. When the display controller sends a signal to update a pixel, the transistor for that pixel opens briefly to allow the new voltage level to charge the liquid crystal cell, then closes to hold the charge until the next refresh cycle. The speed and precision with which these transistors operate directly affect the response time and refresh rate of the display. Higher quality TFT manufacturing processes produce transistors with lower leakage currents and faster switching speeds, which contribute to sharper images, more accurate gray-scale reproduction, and better overall display performance.

Display Resolution and Pixels

Resolution refers to the total number of pixels packed into the display panel, expressed as the horizontal pixel count multiplied by the vertical pixel count. Common laptop display resolutions include Full HD at 1920 by 1080 pixels, Quad HD at 2560 by 1440 pixels, and Ultra HD at 3840 by 2160 pixels. Higher resolution panels pack more pixels into the same physical screen area, which produces sharper text and more detailed images at normal viewing distances. The relationship between resolution and screen size determines pixel density, measured in pixels per inch, which is the most meaningful measure of display sharpness for practical use.

Operating systems use display scaling to compensate for very high pixel densities, rendering interface elements at larger sizes so they remain usable at normal viewing distances. Windows calls this feature DPI scaling, while Apple refers to it as Retina display technology. OLED laptop displays have begun to challenge traditional LCD panels in the premium segment, offering self-emissive pixels that produce perfect black levels, infinite contrast ratios, and faster response times without requiring a separate backlight. Each pixel in an OLED panel contains organic compounds that emit light directly when current passes through them, eliminating the need for a separate backlight layer and enabling thinner, lighter display assemblies with superior contrast performance.

Display Glass and Coating

The outermost layer of a laptop display is the cover glass or plastic front layer that protects the delicate panel components beneath it from physical damage, dust, and moisture. Premium laptops use chemically strengthened glass similar to Corning Gorilla Glass, which offers significantly better scratch and impact resistance than standard glass while remaining thin and optically clear. More affordable laptops may use a plastic cover layer or standard glass that provides basic protection but is more susceptible to scratching during everyday use.

The surface treatment applied to the cover glass determines whether the display has a glossy or matte finish, which significantly affects the viewing experience in different lighting conditions. Glossy displays produce more vibrant colors and deeper blacks because the smooth surface does not scatter light, but they also create distracting reflections in bright ambient lighting. Matte displays use a anti-glare coating that scatters ambient light to reduce reflections, making them much more usable outdoors or in brightly lit offices, but the coating slightly softens the image and can reduce apparent contrast. Some premium displays use advanced anti-reflection coatings that reduce reflections without the image-softening effect of traditional matte coatings, offering a compromise between the two approaches.

Display Driver Integrated Circuit

The display driver integrated circuit is the semiconductor chip responsible for translating the digital image data received from the graphics processor into the precise electrical signals needed to control every pixel on the LCD panel. It acts as the interface between the graphics subsystem and the physical display hardware, converting color and brightness values for each pixel into the appropriate voltage levels that drive the TFT transistors and liquid crystal cells. Without the display driver IC, the raw image data from the GPU would be meaningless to the panel hardware.

Modern display driver ICs are highly sophisticated components that handle several important functions beyond simple signal conversion. They manage the timing and synchronization of the display refresh process, ensuring that all rows of pixels are updated in the correct sequence at the right speed to maintain the specified refresh rate. They also implement gamma correction curves that adjust the relationship between input brightness values and actual light output to match the perceptual response of the human visual system. Advanced display driver ICs support variable refresh rate technologies like AMD FreeSync and NVIDIA G-Sync, which synchronize the display refresh rate with the graphics card output to eliminate screen tearing and reduce input latency in gaming and interactive applications.

Touchscreen Digitizer Layer

Many modern laptops include a touchscreen digitizer layer bonded to the front of the display assembly to enable touch input alongside traditional keyboard and trackpad interaction. The most common touch technology used in laptops is projected capacitive sensing, which uses a grid of transparent conductive electrodes embedded in a thin layer of glass or film to detect the position of fingers on the screen. When a finger touches the screen, it disturbs the electrostatic field of nearby electrodes, and the touch controller chip calculates the precise position of the touch from the pattern of disturbance across the electrode grid.

The digitizer layer can be implemented as either an add-on glass layer bonded over the existing display stack or as an integrated in-cell or on-cell design where the touch electrodes are incorporated directly into the LCD panel itself. Add-on digitizer layers add thickness and weight to the display assembly and can reduce optical clarity slightly due to the additional glass-to-air interface. In-cell and on-cell touch designs eliminate these drawbacks by integrating the touch sensing directly into the panel manufacturing process, resulting in thinner, lighter displays with better optical performance. Premium 2-in-1 convertible laptops often pair capacitive touch with active stylus support, using a separate digitizer layer that detects the electromagnetic signal from a pressure-sensitive stylus to enable precise drawing and handwriting input.

Refresh Rate and Response

Refresh rate measures how many times per second the display updates the image on screen, expressed in Hertz. Standard laptop displays refresh at sixty Hz, which means the image is redrawn sixty times every second. This refresh rate is adequate for general computing, document editing, and video playback but can feel sluggish for fast-paced gaming or rapid scrolling. High refresh rate displays operating at one hundred twenty, one hundred forty-four, or two hundred forty Hz deliver significantly smoother motion that is immediately perceptible during gaming, video playback, and even everyday scrolling through web pages and documents.

Response time measures how quickly an individual pixel can transition from one color or brightness level to another, expressed in milliseconds. Slow response times cause a visual artifact called ghosting, where moving objects leave a blurry trail because the pixels cannot change fast enough to keep up with the motion. Gaming laptops prioritize low response times, typically targeting one to three milliseconds for gray-to-gray transitions, to keep fast-moving game imagery sharp and clear. The combination of high refresh rate and low response time creates a display experience that feels immediate and fluid, which is why these specifications have become key selling points for laptop displays aimed at competitive gamers and performance-focused users.

Display Brightness and Contrast

Brightness is measured in nits, which is a unit of luminance equivalent to one candela per square meter. Standard laptop displays produce between two hundred and three hundred nits of brightness, which is sufficient for indoor use in controlled lighting conditions. Displays intended for outdoor use or bright office environments need at least four hundred to five hundred nits to remain clearly visible when competing with ambient light. Premium laptop displays targeting professional and outdoor use reach one thousand nits or more, maintaining excellent visibility even in direct sunlight.

Contrast ratio expresses the difference between the brightest white and darkest black a display can produce simultaneously. A higher contrast ratio means the display can show more depth and dimension in images, with richer shadows and more vivid highlights. Standard LCD displays achieve contrast ratios of around eight hundred to one thousand to one, while IPS panels with local dimming can reach higher ratios. OLED displays achieve theoretically infinite contrast ratios because their pixels turn off completely to produce true black rather than relying on a backlight that always leaks some light through even in dark areas. High dynamic range certification requires displays to meet minimum brightness and contrast thresholds that enable them to faithfully reproduce HDR content mastered for cinema and streaming distribution.

Display Connectivity and Interface

The internal display connection carries video signal, power, and control data between the laptop motherboard and the display assembly through a flexible cable that runs through the display hinge. The most common internal display interface in modern laptops is embedded DisplayPort, which supports high bandwidth digital video transmission capable of driving high resolution, high refresh rate panels with excellent signal integrity. Older laptops used LVDS low-voltage differential signaling for internal display connections, but eDP has largely replaced it due to higher bandwidth support and better compatibility with the display specifications of modern panels.

External display connectivity allows users to connect their laptops to external monitors, projectors, and televisions for expanded workspace or presentation purposes. Modern laptops include a variety of external display output ports including USB-C with DisplayPort Alternate Mode, HDMI, and Thunderbolt, which supports DisplayPort protocol over its high-bandwidth connection. The maximum resolution, refresh rate, and number of external displays supported depends on both the laptop graphics hardware and the capabilities of the specific port being used. Thunderbolt 4 and USB4 ports support the widest range of external display configurations, including driving multiple 4K displays simultaneously from a single connection when combined with a compatible docking station.

Display Hinge Mechanism

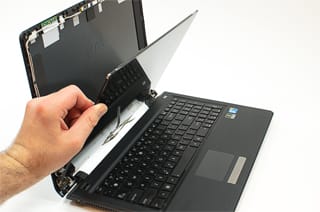

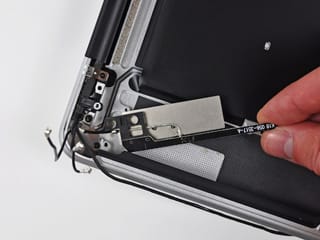

The display hinge is the mechanical assembly that connects the display panel to the laptop base and allows the screen to be opened and closed smoothly while maintaining any desired angle between zero and one hundred eighty degrees or beyond in convertible designs. Hinge quality directly affects the longevity and usability of the laptop display because it must withstand thousands of open and close cycles over the lifetime of the device while maintaining consistent torque that prevents the screen from flopping open or snapping shut unexpectedly. Premium laptops use precision-engineered metal hinges with carefully calibrated friction mechanisms that hold the display firmly at any angle.

Convertible and two-in-one laptops use specialized hinge designs that allow the display to rotate a full three hundred sixty degrees, enabling the device to be used in laptop, tablet, tent, and presentation modes. These hinges must accommodate a much wider range of motion while maintaining structural rigidity and protecting the flexible display cable from fatigue damage caused by repeated flexing. Some manufacturers use dual-axis hinges or watch-band style flexible hinges that distribute bending stress across a larger area to extend cable and hinge life. The hinge mechanism also affects the thermal design of the display assembly because it provides a pathway for heat generated by the display panel to dissipate into the surrounding air.

Display Cable and Wiring

The display cable is a flexible flat cable or flexible printed circuit that carries all the necessary electrical connections between the laptop motherboard and the display assembly components. It typically bundles together the video signal wires, backlight power supply connections, touch digitizer data lines, webcam data and power connections, and microphone wiring into a single ribbon cable that routes through the display hinge. The design and routing of this cable is a critical engineering challenge because it must be flexible enough to survive thousands of hinge cycles without cracking or breaking, yet shielded well enough to prevent electromagnetic interference from corrupting the sensitive display signals.

Cable quality and routing are common failure points in aging laptops, where repeated flexing at the hinge point gradually fatigues the conductor traces within the cable until they crack and cause intermittent or permanent display failures. Manufacturers address this through careful cable routing that minimizes bending radius, selecting cable materials with high flex cycle ratings, and using reinforced strain relief at the points where the cable exits and enters the hinge housing. When a laptop display shows flickering, horizontal lines, or goes dark only when the lid is moved to certain angles, a fatigued or damaged display cable is frequently the cause. Replacing the display cable is often a cost-effective repair that restores full display functionality without requiring replacement of the entire panel assembly.

Webcam and Sensor Integration

Modern laptop displays integrate several components beyond the screen panel itself into the display assembly housing, with the webcam being the most universally present. The webcam module is typically mounted at the top center of the display bezel and includes an image sensor, lens assembly, and in many cases an infrared sensor for Windows Hello facial recognition. High-end laptop webcams now feature resolutions of 1080p or higher with hardware-based noise reduction and automatic low-light enhancement to produce clear video in challenging lighting conditions during video calls and conferencing.

Ambient light sensors are embedded in the display bezel to measure the brightness of the surrounding environment and automatically adjust the display backlight to maintain comfortable viewing brightness as lighting conditions change. This automatic brightness adjustment reduces eye strain and extends battery life by dimming the display in dark environments where full brightness is unnecessary. Some premium laptops include additional sensors such as proximity detectors that wake the display when a user approaches and lock it when they walk away, improving both security and energy efficiency. The integration of these sensors into the slim display assembly requires careful engineering to fit multiple components within the tight constraints of the bezel while maintaining reliable operation across the full range of environmental conditions the laptop may encounter.

Display Assembly Manufacturing

The manufacturing process for laptop display assemblies involves multiple precision stages that combine optical, electronic, and mechanical components into a finished unit that meets strict quality and performance specifications. The LCD panel itself is manufactured in a cleanroom environment where even microscopic dust particles could cause defective pixels or visual artifacts in the finished display. Glass substrates are coated with thin film transistor circuits using photolithographic processes similar to semiconductor manufacturing, then filled with liquid crystal material and sealed before being bonded with color filter arrays and polarizing films.

Quality control during display manufacturing involves extensive automated optical inspection to detect dead pixels, brightness uniformity defects, color accuracy deviations, and structural flaws that would affect the end user experience. Finished panels are tested for backlight uniformity, response time, color gamut coverage, and contrast ratio before being accepted for assembly into laptop display modules. The final display assembly process bonds the panel with the backlight unit, driver circuit boards, and protective cover glass before integrating the complete module into the laptop display housing with the webcam, hinges, and cable assemblies. This complex, multi-stage manufacturing process explains why display quality varies significantly between laptop models and price points, with premium displays commanding higher prices due to tighter quality tolerances and more sophisticated panel technologies.

Conclusion

The laptop display is a remarkably sophisticated assembly of optical, electronic, and mechanical components working together in precise coordination to produce the visual experience that users interact with every moment they use their device. Throughout this guide, we have examined every major component of the laptop display system, from the fundamental panel technology and backlight illumination through the liquid crystal layer, color filters, thin film transistors, and cover glass, to the driver circuits, touch digitizers, hinges, cables, and integrated sensors that complete the assembly.

What becomes clear from this detailed examination is that the display is far more than a simple screen. It is a carefully engineered optical system where every layer serves a specific function and the quality of each component directly influences the overall viewing experience. The choice of panel technology determines viewing angles and color accuracy. The backlight design affects brightness uniformity and power consumption. The color filter array defines the range of colors the display can reproduce. The TFT layer controls the precision and speed of pixel updates. The cover glass and surface coating determine how the display performs in real-world lighting conditions. Every engineering decision made during display design involves trade-offs between performance, cost, weight, thickness, and power consumption.

Understanding these components also empowers users to make more informed purchasing decisions when selecting a laptop. Rather than being swayed by marketing terms alone, a user who understands display technology can evaluate specifications meaningfully, recognizing that a high nit count matters most for outdoor use, that IPS or OLED panels deliver better color accuracy for creative work, that high refresh rates benefit gamers and fast-scrolling users, and that matte coatings trade color vibrancy for glare reduction. This knowledge transforms abstract specifications into practical criteria that match display capabilities to actual usage requirements.

For technicians and repair professionals, familiarity with display components enables more accurate diagnosis of display failures and more confident component-level repairs. Knowing that flickering often indicates a cable or backlight driver issue, that color distortion points to panel or driver IC problems, and that physical damage typically requires full panel replacement helps technicians work efficiently and communicate clearly with customers about repair options and costs. As laptop displays continue to evolve with new technologies like mini-LED backlighting, OLED panels, and high refresh rate screens becoming more mainstream, this foundational knowledge provides the conceptual framework needed to understand and work with new display innovations as they emerge in the market.
