An Introduction to the Avaya 7130X Certification Exam

Embarking on the journey to achieve the ACIS – Avaya Aura® Communication Applications credential is a significant step for any telecommunications professional. A critical milestone in this path is passing the Avaya Aura® Communication Applications Integration exam, commonly identified by its code, 7130X. This certification validates an individual's ability to install, configure, and troubleshoot key application solutions within the Avaya Aura® ecosystem. The exam is a comprehensive test of practical knowledge, designed to ensure that certified specialists have the skills necessary to deploy robust and secure communication solutions for enterprises of all sizes.

The Avaya 7130X exam itself consists of 65 challenging questions that must be answered within a 90-minute time frame. To achieve a passing grade, candidates must correctly answer at least 44 of these questions, which translates to a minimum passing score of 68%. The questions cover a range of topics, with a strong focus on the Avaya Session Border Controller for Enterprise (SBCE) and Avaya Aura® Messaging (AAM). Success on this exam requires not just theoretical knowledge, but a deep understanding of how these components function and integrate within the broader Avaya Aura® architecture.

The Core Role of the Avaya Session Border Controller for Enterprise

At the edge of any modern enterprise voice network sits a critical security and session management component known as a Session Border Controller (SBC). The Avaya Session Border Controller for Enterprise, or SBCE, is Avaya’s purpose-built solution designed to secure and control real-time communication flows, primarily Session Initiation Protocol (SIP), as they traverse the boundary between the internal, trusted network and the external, untrusted network. Its role is multifaceted and absolutely essential for enabling key functionalities like SIP trunking and secure remote worker connectivity.

The primary function of the SBCE is to act as a security gateway. It protects the internal voice infrastructure from denial-of-service attacks, toll fraud, and other malicious activities by inspecting and sanitizing all SIP traffic. Another crucial function is interoperability. The SBCE can manipulate SIP headers and messages to resolve incompatibilities between different vendor systems, such as an enterprise’s Avaya Aura® core and a service provider's network. Finally, it provides robust session management, ensuring that call media (audio and video) flows correctly and that network resources are used efficiently. The Avaya 7130X exam heavily tests these core concepts.

Navigating the SBCE Installation and Initial Configuration

The initial deployment of an Avaya SBCE is performed using a straightforward installation wizard. However, while the process is guided, making the correct choices for network configuration during this phase is vital for the device's proper functioning. One of the key settings addressed in the wizard is the configuration of Domain Name Service (DNS) servers. A common point of confusion for administrators is whether DNS is mandatory. For the SBCE to operate correctly, especially in environments where it needs to resolve Fully Qualified Domain Names (FQDNs) for SIP trunks or other services, a reachable DNS server must be configured.

Another critical aspect of the initial setup, often tested in the Avaya 7130X exam, is the state of the network interfaces after the wizard completes. For security reasons, the SBCE's network interfaces, such as A1 or B1, are not automatically activated. After assigning an IP address, you must manually navigate to the device-specific settings within the management interface and explicitly enable the interface to bring it into service. Forgetting this step is a frequent cause of connectivity issues, as the interface will not respond to network traffic, including basic ping requests, until it has been explicitly enabled.

Understanding SBCE Network Interfaces and IP Addressing

The Avaya SBCE is designed to sit at the network border, which means it requires a presence on both the internal (private) and external (public) networks. This is achieved through the use of at least two separate Network Interface Cards (NICs). Avaya follows a standard naming convention for these interfaces, which is important to understand for the 7130X exam. The 'A' interfaces are typically used for the internal, private side network connection, while the 'B' interfaces are used for the external, public side. The primary interfaces are designated as A1 and B1 respectively.

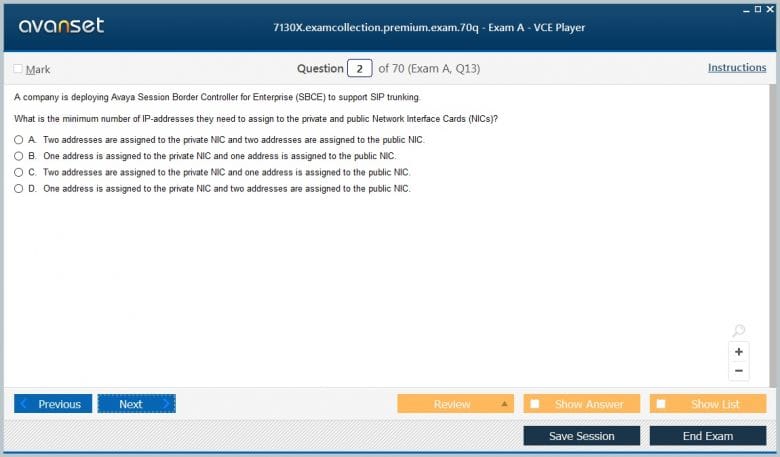

When planning an SBCE deployment, a minimum number of IP addresses must be allocated. Each of the two primary NICs requires at least one IP address for management and signaling traffic. Therefore, a basic deployment needs a minimum of one private IP address assigned to the A1 interface and one public IP address assigned to the B1 interface. Following a consistent naming and addressing scheme is considered a best practice. This logical separation is fundamental to the SBCE’s ability to segregate traffic and enforce security policies between the trusted and untrusted domains.

Managing the SBCE via GUI and CLI

Administrators have two primary methods for managing and monitoring the Avaya SBCE: the web-based Element Management System (EMS) graphical user interface (GUI) and the command-line interface (CLI), accessible via an SSH session. The Avaya 7130X exam expects candidates to be familiar with the capabilities of both. The EMS provides a user-friendly way to perform most configuration, monitoring, and maintenance tasks. For instance, from the EMS web console, an administrator can easily access tools that display real-time SIP message traces, which is invaluable for troubleshooting call flows.

The CLI, on the other hand, offers powerful capabilities for advanced troubleshooting and scripting. A key administrative task is reviewing system logs to diagnose issues. While alarms and events can be viewed in Avaya Aura® System Manager, the detailed system logs themselves are accessed directly on the SBCE. From the EMS, you can navigate to the log viewer. Alternatively, from the CLI, an administrator can use standard Linux commands to view log files directly, such as navigating to the correct directory and using a command to display the contents of the syslog file. Knowing both methods is crucial for comprehensive system management.

Exploring the Different States of a Network Interface

The network interfaces on an Avaya SBCE can exist in several distinct states, and understanding the meaning of each state is a key piece of operational knowledge for the Avaya 7130X. The default state of a newly configured interface is 'Disabled'. In this state, the interface is administratively down and will not process or respond to any network traffic. This is a security measure to ensure an interface does not become active on the network before it is fully configured and ready for service. It is a deliberate action that the administrator must take to change this state.

To make an interface operational, its status must be toggled to 'Enabled'. This action administratively brings the interface up, allowing it to start processing traffic. Before an interface like B1 can be pinged from a device on the external network, it must first be moved from the 'Disabled' to the 'Enabled' state. Other states like 'In-Service' or 'Active' may also be seen, which typically indicate that the interface is not only enabled but is also actively passing traffic and functioning as expected within the system's service configuration. The primary action for bringing an interface online is always to enable it.

Configuring SIP Trunking with Server and Subscriber Flows

One of the most common use cases for the Avaya Session Border Controller for Enterprise is to secure and manage SIP trunks connecting to a service provider. The Avaya 7130X exam requires a thorough understanding of how these connections are configured within the SBCE. The core of this configuration revolves around the concept of Server Flows and Subscriber Flows. These flows are logical constructs that define the path and policies for calls traveling in different directions. They are essential for controlling call routing, security, and interoperability on a per-trunk or per-user basis.

For a standard SIP trunking deployment, you need to define how the SBCE handles calls originating from the internal Avaya Aura® core and going out to the service provider, as well as calls coming in from the service provider to the core. A Server Flow is used to manage traffic towards a specific server, such as the service provider's session controller. A Subscriber Flow manages traffic from a set of subscribers, such as the internal Session Manager. Therefore, a typical SIP trunk configuration requires at least one Server Flow to define the path to the provider and at least one Subscriber Flow to define the path from the internal network.

The Critical Role of the Server Interworking Profile

Interoperability is a major challenge in the world of SIP, as different vendors may implement the protocol with slight variations. The Avaya SBCE addresses this challenge through a powerful and flexible system of profiles. When configuring the SBCE to connect to a far-end server, such as a service provider's SIP trunking platform or an external PBX, you create a Server Configuration. This configuration must be linked to a Server Interworking profile. This profile is a critical component that dictates how the SBCE will modify and handle SIP signaling messages to ensure compatibility.

As covered in the Avaya 7130X curriculum, the Server Interworking profile contains a wide range of settings that control signaling behavior. These include parameters for managing SIP timers, which can prevent premature call drops if network latency is a factor. It also includes rules for header and URI manipulation, allowing the SBCE to add, remove, or change parts of a SIP message to match the specific requirements of the far-end server. Avaya provides default profiles, such as "avaya-ru," but in many real-world scenarios, these profiles must be cloned and customized to achieve seamless integration.

Securing Your Network with Topology Hiding

A fundamental security function of any session border controller is Topology Hiding. This mechanism is designed to protect the internal network by obscuring its private IP addressing scheme and network structure from the outside world. The Avaya SBCE performs Topology Hiding by intercepting all SIP messages that cross the border and rewriting key headers before forwarding them. This process prevents external entities from learning the private IP addresses of internal servers like Avaya Aura® Session Manager or Communication Manager, which could otherwise be used to launch targeted attacks.

The Topology Hiding profile is another type of global profile within the SBCE configuration that you must be familiar with for the Avaya 7130X exam. This profile defines the rules for how the SBCE will mask the internal network information. For example, it can replace the private IP address in the SIP headers with the public IP address of the SBCE itself. This ensures that all subsequent signaling for that call session is routed back through the SBCE, allowing it to maintain control and security over the entire call. It is a non-negotiable feature for any security-conscious deployment.

Optimizing Connections with Advanced Signaling Features

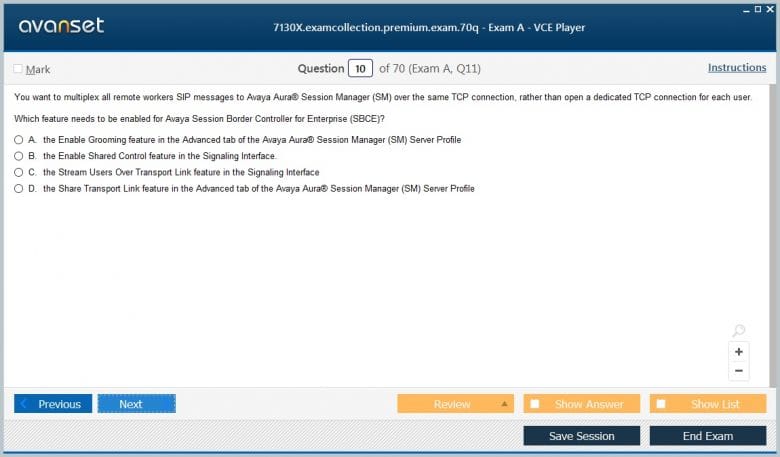

In a large-scale remote worker deployment, having each remote SIP phone maintain its own dedicated TCP connection back to the Avaya Aura® Session Manager can create a significant resource strain on the Session Manager. To address this, the Avaya SBCE includes an advanced feature that allows it to multiplex, or groom, the SIP messages from many remote users over a single, shared transport link to the Session Manager. This dramatically reduces the number of connections the Session Manager has to maintain, improving its performance and scalability. This is a key feature for enterprise deployments.

To enable this functionality, which is a potential topic for the Avaya 7130X, a specific setting must be configured within the SBCE. The feature, often referred to as "Enable Grooming," is typically found in the advanced settings of the Server Profile that corresponds to the internal Avaya Aura® Session Manager. When this feature is enabled, the SBCE acts as a proxy, consolidating the signaling from numerous remote worker endpoints into one TCP connection that it manages with the Session Manager, making the entire solution much more efficient and scalable for large numbers of users.

Analyzing Traffic with Wireshark Packet Captures

Effective troubleshooting is a critical skill for any communications engineer, and the Avaya 7130X exam validates your ability to diagnose problems. One of the most powerful tools for troubleshooting SIP-related issues is packet capture analysis using an application like Wireshark. While Wireshark does not run directly on the Avaya SBCE appliance itself, the SBCE includes a built-in utility that allows you to capture network traffic passing through its interfaces. This feature is accessible from the Element Management System (EMS) web GUI.

From the EMS, you can navigate to the troubleshooting or diagnostics section and start a packet capture on a specific interface. You can apply filters to capture only the traffic you are interested in, such as SIP signaling on port 5060. After you have captured the relevant traffic by replicating the issue, you can stop the capture. The SBCE then allows you to download the captured data as a standard .pcap file. This file can be opened and analyzed offline on your local computer using Wireshark, providing a detailed, packet-level view of the signaling exchange to help pinpoint the root cause of the problem.

Architecting the Modern Remote Worker Solution

The ability to securely support a remote workforce is no longer a luxury but a necessity for modern enterprises. The Avaya Session Border Controller for Enterprise is the cornerstone of Avaya's remote worker solution, providing a secure and reliable way for employees to connect their SIP endpoints, such as Avaya SIP telephones or soft clients, to the corporate Avaya Aura® infrastructure from anywhere with an internet connection. The Avaya 7130X exam places significant emphasis on understanding the architecture and configuration required to enable this powerful capability.

The fundamental principle of the solution is to terminate all remote worker traffic at the network edge on the SBCE. The SBCE acts as a secure proxy, preventing any direct exposure of the internal Session Manager or other core components to the public internet. It handles the registration and call signaling for remote users, applying security policies and ensuring that only authorized and authenticated users can access the system. This architecture not only provides robust security but also simplifies the configuration for the remote endpoint itself, as it only needs to know a single public address to connect to the entire corporate voice network.

Configuring SIP Endpoints for Remote Worker Access

A common point of confusion when setting up remote workers, and a frequent topic on the Avaya 7130X exam, is determining the correct server address to configure in the remote SIP endpoint. When an Avaya SIP telephone or a soft client like Avaya one-X® Communicator is used remotely, it must be configured to register with the Avaya Aura® core through the SBCE. Therefore, the server address or SIP proxy address configured in the device's settings must be the public-facing IP address of the SBCE.

Specifically, it should be the public IP address that is configured on the SBCE's external interface, such as B1, and allocated for remote worker traffic. The endpoint should never be configured with the internal IP address of the Session Manager. The remote device has no direct network path to the internal server. Instead, it sends its registration request to the public IP of the SBCE. The SBCE then authenticates the user and forwards the registration on to the internal Session Manager on the user's behalf, effectively proxying the entire connection and maintaining the secure network boundary.

Understanding Relay Services for Essential File Access

Remote workers need more than just call connectivity; their endpoints often require access to essential configuration files, firmware updates, and user-specific data that are hosted on servers within the corporate network. Providing secure access to these resources without compromising network security is a key function of the Avaya SBCE's Relay Services. The Avaya 7130X exam requires knowledge of these services and when to use them. These services allow the SBCE to act as a secure intermediary for application traffic, not just SIP signaling.

One common requirement is for remote endpoints to download the 46xxsettings.txt file, which contains crucial configuration parameters. To facilitate this, the SBCE's Application Relay and File Transfer Relay services must be configured. The Application Relay service tells the SBCE to listen for specific types of application requests, while the File Transfer Relay service handles the secure proxying of the file download itself from the internal file server to the external remote endpoint. This allows the remote phone to get its configuration without ever having a direct connection to the internal file server.

Enabling Personal Profile Management for Remote Users

Personal Profile Management (PPM) is a feature that allows users to manage their contacts, call logs, and other personal settings, which are then synchronized across their various Avaya devices. For a remote Avaya SIP Telephone to successfully download its PPM data, it needs to communicate securely with the Avaya Aura® System Manager, which often hosts the PPM service. The Avaya SBCE facilitates this communication using a combination of its Relay Services, a topic covered in the Avaya 7130X.

Specifically, two key services must be configured on the SBCE. The first is a Reverse Proxy. PPM data is typically accessed over HTTPS, and the Reverse Proxy service allows the SBCE to act as a secure web proxy. It receives the HTTPS request from the remote phone on its public interface and forwards it to the internal System Manager server. In addition, an Application Relay mapping must be created to direct the PPM-specific traffic to the configured Reverse Proxy service. This two-part configuration ensures that the sensitive PPM data is exchanged securely without exposing the internal System Manager to the internet.

A Practical Configuration Scenario for Remote Workers

To synthesize these concepts for the Avaya 7130X, consider a practical scenario. An administrator needs to configure the SBCE to support a new group of remote workers using Avaya SIP phones. The first step is to configure the network interfaces, ensuring A1 is on the private network and B1 is on the public network with a valid public IP address. Next, a Server Configuration for the internal Session Manager is created, possibly with grooming enabled for efficiency. Then, a Subscriber Flow is created to define the policies for the group of remote users.

The administrator then configures the necessary Relay Services. An Application Relay and File Transfer Relay are set up to allow the phones to download the 46xxsettings.txt file from an internal HTTP server. Following that, a Reverse Proxy service is configured, pointing to the internal System Manager's IP address. An Application Relay for PPM is then created to map PPM requests to this Reverse Proxy. Finally, the remote users configure their phones with the public IP address of the SBCE's B1 interface as their SIP server, allowing them to register and access all required services securely.

Deconstructing the Avaya Aura® Messaging Architecture

Avaya Aura® Messaging (AAM) is Avaya's robust and scalable solution for voicemail and unified messaging. A core part of the Avaya 7130X exam focuses on your ability to integrate this critical application into the main Avaya Aura® platform. To successfully integrate AAM, you must first understand its fundamental architecture. AAM is not a single, monolithic application but is comprised of several distinct components that work together to provide a seamless user experience. Understanding the role of each component is essential for both configuration and troubleshooting.

The three primary components of an AAM system are the Application Server, the Messaging Store, and the AxC/Directory component. The Application Server is the brain of the operation; it processes calls, plays greetings, and handles the user TUI (Telephony User Interface). The Messaging Store is the dedicated server responsible for storing all voicemail messages and greetings. The AxC/Directory, which stands for Avaya Extensible Connector, is the component responsible for synchronizing user data between AAM and the core Avaya Aura® System Manager, ensuring that mailboxes are associated with the correct users.

Planning for AAM Capacity and System Scalability

When deploying Avaya Aura® Messaging, careful consideration must be given to system capacity and scalability to ensure it can meet the organization's needs. The Avaya 7130X curriculum covers these planning aspects. AAM can be deployed using different templates, primarily the Standard Capacity and High Capacity templates for the Message Store. The choice of template has a significant impact on the number of users the system can support. It is crucial to select the correct template during the initial installation based on the expected number of mailboxes.

For example, a system utilizing the Standard Capacity Message Store template has specific limitations. A single Message Store Server in this configuration can typically support up to 6,000 user mailboxes. In this type of deployment, you can also cluster multiple Application Servers for redundancy and load balancing. A standard capacity deployment allows for a cluster of up to three active Application Servers plus one redundant server. Understanding these capacity limits is vital for proper system design and for answering scenario-based questions on the Avaya 7130X exam.

Integrating AAM with Avaya Aura® Session Manager

The connection between Avaya Aura® Messaging and the rest of the Avaya Aura® platform is facilitated by the Session Manager, which acts as the central SIP routing engine. To route calls correctly to the AAM voicemail system, the Session Manager needs to have AAM defined as a SIP destination. This process involves creating a new SIP Entity in Avaya Aura® System Manager, which is the centralized management platform for the entire ecosystem. The details of this configuration are a key topic for the 7130X exam.

When creating the SIP Entity for AAM, you are presented with a choice for the "Type" of entity. It is critical to select the specific type "Avaya Aura® Messaging". Selecting this predefined type automatically populates several configuration parameters with values that are optimized for integration with AAM. For routing calls, Session Manager relies on its sophisticated routing engine. It uses Network Routing Policies (NRPs) to determine the appropriate destination for a call based on the dialed number. An NRP will be configured to direct calls to the AAM's SIP Entity when a user's phone is busy or does not answer.

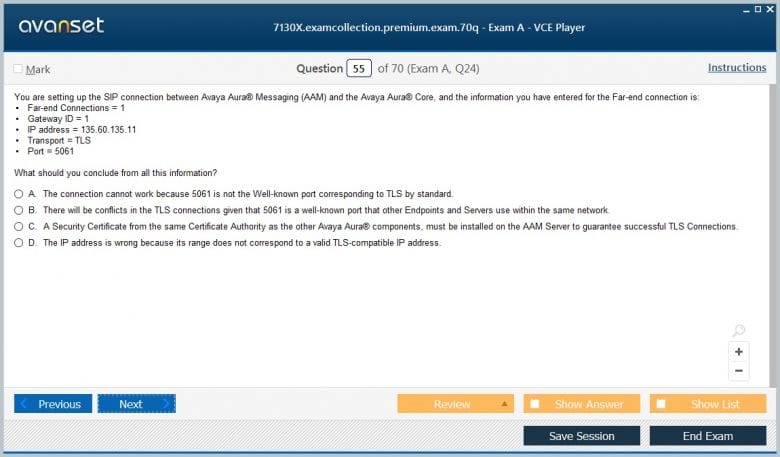

Configuring Secure SIP Trunks Between SM and AAM

Security is paramount in modern communication systems. The SIP connection between Session Manager and Avaya Aura® Messaging should always be configured to use Transport Layer Security (TLS) to encrypt the signaling traffic. This prevents eavesdropping and ensures the integrity of the communication. Configuring a secure TLS trunk is a common task for an integration specialist and a subject you should be prepared for on the Avaya 7130X exam. This involves several steps on both the Session Manager and AAM sides.

A critical requirement for a successful TLS connection is the use of security certificates. Both Session Manager and the AAM server must have certificates installed that are signed by the same, or a mutually trusted, Certificate Authority (CA). This allows them to validate each other's identity and establish a secure connection. When configuring the connection, you must also use the standard port for SIP over TLS, which is 5061. An incorrect port or a certificate issue is a common cause of integration failure, making it important to verify these settings carefully during configuration.

Provisioning and Synchronizing AAM Users

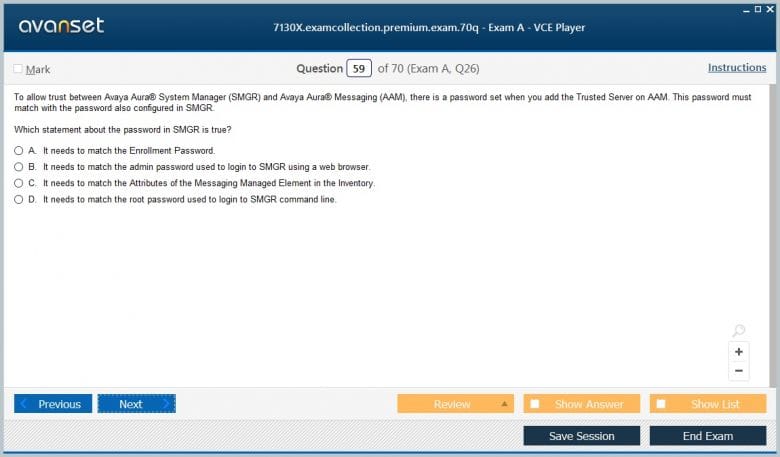

For the AAM system to function, it needs a database of users and their corresponding mailboxes. This user information is mastered in the Avaya Aura® System Manager (SMGR). The Avaya 7130X integration scope includes understanding how this user data is populated and kept in sync with AAM. The process is managed by the AxC/Directory connector component of AAM, which communicates with SMGR to pull user data. This ensures that when a new user is added in SMGR, a corresponding mailbox can be automatically created in AAM.

The synchronization process is crucial for maintaining a consistent directory across the platform. The AxC connector maps fields from the SMGR user profile, such as the user's name, extension, and SIP handle, to the corresponding fields in the AAM user profile. This linkage is what allows Session Manager to correctly route a call to the right voicemail box for a specific user. Any discrepancy in this user data can lead to routing failures or users being unable to access their mailboxes, highlighting the importance of a properly configured and functioning synchronization process.

Adopting a Systematic Approach to SBCE Troubleshooting

Passing the Avaya 7130X exam requires more than just knowing how to configure the system; it also requires the ability to troubleshoot it when things go wrong. A systematic, logical approach to troubleshooting is far more effective than making random changes. The first step is always to clearly define the problem. Is it a call failure, one-way audio, or a registration issue? Next, gather all relevant information. This includes checking alarms, reviewing configuration settings, and examining logs and traces. This methodical process helps you narrow down the potential causes of the issue efficiently.

Once you have gathered the data, you can form a hypothesis about the root cause. For example, if a remote worker cannot register, your hypothesis might be that a firewall is blocking the signaling port or that the SBCE interface is not enabled. Then, you test your hypothesis by making a single, targeted change or by running a specific diagnostic test. Finally, once you have confirmed the cause and implemented a fix, it is essential to document the problem and the solution. This disciplined approach is a critical skill for any real-world communications engineer.

Effectively Utilizing SBCE System Logs and Alarms

The Avaya SBCE provides a wealth of information for troubleshooting through its system logs and alarms. A key skill tested in the Avaya 7130X is knowing where to find this information and how to interpret it. Alarms are typically high-level notifications of a system fault or a critical event and are often centralized in Avaya Aura® System Manager for a consolidated view of the entire ecosystem's health. However, for deep-dive analysis, you need to access the logs directly on the SBCE.

There are two primary ways to view system logs. The first is through the Element Management System (EMS) web GUI, which provides a user-friendly interface to view and filter various log files, including the main system log, security logs, and audit logs. The second method is via the command-line interface (CLI). Using an SSH client, you can log into the SBCE and use standard Linux commands to navigate the file system and view the raw log files. This method offers more powerful filtering and search capabilities for advanced troubleshooting scenarios.

Mastering Real-Time SIP Message Analysis

For troubleshooting complex call flow issues, there is no substitute for viewing the SIP messages in real time as they pass through the SBCE. The Avaya SBCE has a powerful built-in tool, often referred to as traceSBC or the real-time SIP trace tool, designed for this exact purpose. Familiarity with this tool is indispensable for the Avaya 7130X. It allows you to see the entire SIP ladder diagram for a call, showing every request and response, such as INVITE, 180 Ringing, 200 OK, and BYE messages.

This tool is accessible from the EMS web console. An administrator can start a trace and apply filters based on IP address or phone number to isolate a specific call. The output shows the messages as they arrive at the SBCE and as they are sent out after processing. This allows you to verify if the SBCE is receiving the call, how it is manipulating headers based on the configured profiles, and whether it is forwarding the call to the correct destination. Analyzing this trace is often the fastest way to diagnose issues like incorrect call routing, interoperability problems, or call setup failures.

Avoiding Common Configuration Pitfalls

Throughout the Avaya 7130X curriculum, certain best practices and common configuration errors are highlighted. Being aware of these can save countless hours of troubleshooting. A frequent mistake, for example, is forgetting to enable a network interface after configuring its IP address. The interface will remain administratively down and unresponsive until it is manually set to 'Enabled'. Another common pitfall is related to firewall rules on the corporate network. It is essential to ensure that the necessary ports for SIP signaling (like 5060/5061) and RTP media are open between the SBCE and its connected devices.

Adopting good practices from the start can prevent many issues. This includes using a consistent and descriptive naming convention for interfaces, profiles, and flows, which makes the configuration much easier to understand and manage. It is also a best practice to regularly back up the SBCE configuration, especially before making significant changes. Finally, when creating new profiles, it is almost always better to clone a default profile and modify the copy rather than editing the default profile directly. This preserves the original template for future use.

Final Strategy for the Avaya 7130X Exam

As you approach your exam day for the Avaya 7130X, your final preparation should focus on reinforcing your knowledge and developing a sound test-taking strategy. Review the official Avaya exam guide one last time to ensure you are comfortable with all the listed objectives. Use practice exams to simulate the real testing environment and identify any remaining weak areas that need further study. Pay close attention to the topics covered in this series, including SBCE installation, interface configuration, SIP trunking, remote worker setup, and AAM integration.

On the day of the exam, manage your time wisely. You have 90 minutes for 65 questions, which is just under a minute and a half per question. If you encounter a difficult question, do not spend too much time on it. Mark it for review and move on to the questions you are confident about. You can return to the marked questions at the end if you have time remaining. Read each question carefully, as some may be designed to trick you with subtle wording. By combining thorough preparation with a calm and strategic approach, you will be well-positioned for success.
