How to troubleshoot and resolve inter VLAN routing & WAN implementation problems

Network architects set up VLANs to give the division benefits customarily gave just by switches in LAN designs. VLANs location issues, for example, adaptability, security, and system administration. Switches in VLAN topologies give show separating, security, address rundown, and movement stream administration.


By definition, switches may not connect IP movement between VLANs as doing so would damage the trustworthiness of the VLAN show space. VLANs can likewise help make numerous layer 3 systems on a solitary physical base. For instance, if a DHCP server is connected to a switch it will serve any host on that switch that is designed for DHCP. By utilizing VLANs, the system can be effectively part up so a few hosts won't utilize that DHCP server and will acquire join residential areas, get a location from an alternate DHCP server. VLANs are layer 2 develops, contrasted and IP subnets, which are layer 3 builds. In an environment utilizing VLANs, a coordinated relationship frequently exists in the middle of VLANs and IP subnets, in spite of the fact that it is conceivable to have different subnets on one VLAN. VLANs and IP subnets give free layer 2 and layer 3 builds that guide to each other and this correspondence is helpful amid the system configuration process. By utilizing VLANs, one can control activity designs and respond rapidly to movements. VLANs give the adaptability to adjust to changes in system prerequisites and consider rearranged organization.



VLAN Implementation:

A crucial switch not organized VLANS has VLAN handiness weakened or for record-breaking engaged with a default VLAN that contains all ports on the contraption as parts. Every device joined with one of its ports can send groups to any of the others. Separating ports by VLAN social affairs partitions their development truly like interfacing the contraptions to an interchange, exceptional switch of their own. Configuration of the first custom VLAN port assembling by and large incorporates dislodging ports from the default VLAN, such that the first custom social event of VLAN ports is truly the second VLAN on the device, despite the default VLAN. The default VLAN routinely has an ID of 1. On the off chance that a VLAN port social occasion were to exist just on one contraption, no ports that are parts of the VLAN get-together would need to be marked. These ports would in this manner be seen as "untagged". It is exactly when the VLAN port social occasion is to connect with an interchange contraption that naming is used. Since exchanges between ports on two different switches go through the uplink ports of every one switch incorporated, every VLAN containing such ports ought to furthermore contain the uplink port of every one switch included, and these ports must be marked. This moreover applies to the default VLAN. A couple of switches either allow or oblige that a name be made for the VLAN, however simply the VLAN get-together number is vital beginning with one switch then onto the following. Where a VLAN social event is to simply pass through a transitional switch by method for two pass-through ports, simply the two ports must be a piece of the VLAN, and are marked to pass both the obliged VLAN and the default VLAN on the widely appealing switch. Organization of the switch obliges that the administrative limits be joined with one of the outlined VLANS. If the default VLAN were deleted or renumbered without first moving the organization relationship with a substitute VLAN, it is workable for the master to be shot out of the switch configuration, obliging a compelled clearing of the contraption game plan (possibly to the assembling plant default) to recoup access. Switches regularly have no understood procedure to show VLAN port parts to some person working in a wiring storeroom. It is central for an expert to either have administrative access to the device to view its outline, or for VLAN port assignment outlines or diagrams to be kept by the switches in every one wiring storeroom. These frameworks must be physically overhauled by the particular staff at whatever point port enlistment movements are made to the VLANS. Remote setup of VLANS presents a couple of open entryways for a master to cut off correspondences by the way and lose reconciliation to the contraptions they are trying to orchestrate. Exercises, for instance, subdividing the default VLAN by differentiating from the switch uplink ports into an alternate new VLAN can unexpectedly end all remote systems, obliging the contraption to be physically gotten to at the distant range to move ahead with the game plan process. Statics VLANS are moreover suggested as ports-based VLANS. Static VLAN's assignment is made by designating ports to the VLAN. As a contraption enters the framework, the device characteristically acknowledges the VLANs of a port. If the customer movements ports and needs get to the same VLAN, the framework executive ought to physically make a ports-to-VLAN errand for the new affiliation.


Dynamic VLANS are made using programming. With a VLAN Management Policy Server (VMPS), an official can consign switch ports to VLANS alterably centered around information, for instance, the source MAC area of the contraption joined with the port or the username used to log onto that device. As a contraption enters the framework, the switch request a database for the VLAN cooperation of the port that device is related to. A switch that backs tradition based VLANS; development is dealt with on the reason of its tradition. Essentially, this separates or advances development from a port depending upon the particular tradition of that movement; development of whatever other tradition is not sent on the port.



Inter VLANS:

Between VLAN Routing is the ability to course movement between VLANs. This usefulness could be on the Switch itself (for Layer 3 Switches), on an alternate module or card on the switch (for secluded switches) or even an outer switch.



Configuring the VLAN Routing:

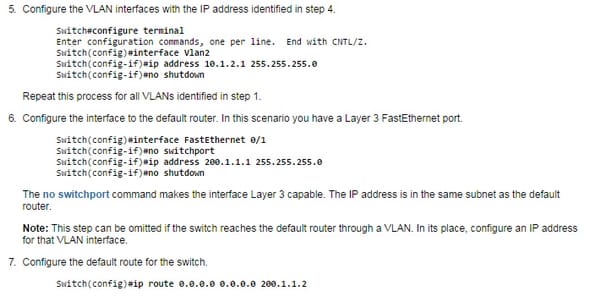

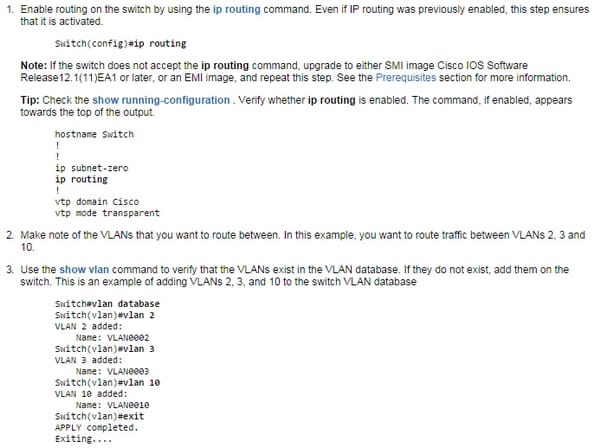

Refer to the following picture for the routing step by step process;



4. Focus the IP addresses you need to appoint to the VLAN interface on the switch. For the switch to have the capacity to course between the VLANS, the VLAN interfaces must be designed with an IP address. At the point when the switch gets a bundle bound for an alternate subnet/VLAN, the switch takes a gander at the directing table to figure out where to forward the parcel. The bundle is then gone to the VLAN interface of the objective. It is thus sent to the port where the end gadget is joined.

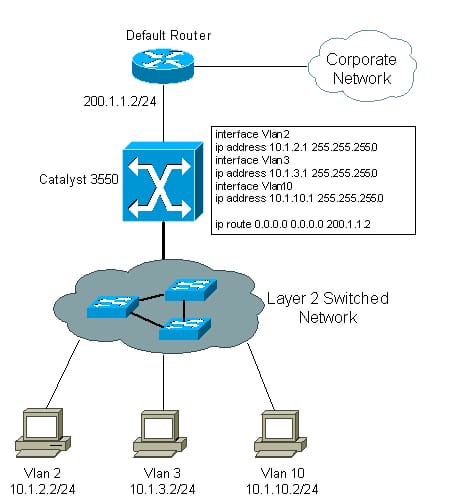

From the chart in the Task area, note that the IP location of the default switch is 200.1.1.2. In the event that the switch gets a parcel for a system not in the steering table, it advances it to the default entryway for further preparing. From the switch, confirm that you can ping the default router. The IP default-portal charge is utilized to tag the default door when steering is not empowered. In any case, for this situation, directing is empowered (from step 1). Hence, the IP default-door order is unnecessary. Design your end gadgets to utilize the particular Catalyst 3550 VLAN interface as their default passage. Case in point, gadgets in VLAN 2 ought to utilize the interface VLAN 2 IP address as its default portal. Allude to the suitable customer design guide for more data on the best way to assign the default door.



Troubleshooting Inter VLAN Routing:

In the event that you think that there is an issue with a switch design, utilize the show (interface-id) switch port charge for confirmation. The show running-config and the show (interface-id) switch port summons are helpful Cisco IOS troubleshooting devices for distinguishing VLAN task and port design issues. At the point when utilizing the customary directing model for between VLAN steering, guarantee that the switch ports that associate with the switch interfaces are arranged on the right VLANS. On the off chance that the switch ports are not designed or allotted effectively to VLANS, system gadgets arranged on the VLANS won't get or unite with the switch interface, which in turns impede movement to different VLANS on the system.

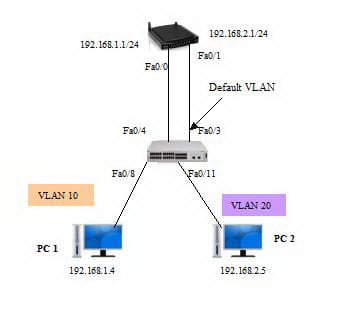

Utilizing the Topology above, Pc2 and switch R1 interface F0/1 are designed to have the same subnet. Be that as it may, the switch port F0/3 that join with switch R1 interface F0/1 has not been arranged and stays in the default VLAN. Since switch R1 is on an alternate VLAN than Pc2, they are not able to impart.



WLAN:

The course reading meaning of a WAN is a machine system traversing locales, nations, or even the world. Notwithstanding, regarding the application of machine systems administration conventions and ideas, it might be best to view WANs as machine systems administration innovations used to transmit information over long separations, and between distinctive LANS, Mans and other confined machine organizing architectures. This qualification originates from the way that basic LAN advances working at Layer 1/2, (for example, the types of Ethernet or Wi-Fi) are regularly adapted towards physically confined systems, and subsequently can't transmit information over tens, hundreds or even a huge number of miles or kilometers. WANs don't simply fundamentally interface physically dissimilar LANS. A CAN, for instance, may have a limited spine of a WAN innovation, which interfaces distinctive LANS inside grounds. This could be to encourage higher transmission capacity applications, or give better usefulness to clients in the CAN.


WANs are utilized to interface LANS and different sorts of systems together, so that clients and machines in one area can speak with clients and machines in different areas. Numerous WANs are manufactured for one specific association and are private. Others, manufactured by Internet administration suppliers, give associations from an association's LAN to the Internet. WANs are frequently manufactured utilizing rented lines. At each one end of a rented line, a switch interfaces the LAN at one side along with a second switch inside the LAN on the other. Rented lines might be exceptionally lavish. As opposed to utilizing rented lines, WANs can likewise be manufactured utilizing less unreasonable circuit exchanging or bundle exchanging strategies. System conventions including TCP/IP convey transport and tending to capacities. Conventions including the Packet over, MPLS, SONET/SDH , ATM and the Frame Relays are regularly utilized by administration suppliers to convey the connections that are utilized as a part of WANs. The X.25 was a vital early WAN convention, and is regularly thought to be the "granddad" of Frame Relay as a large number of the underlying conventions and capacities of X.25 are still being used today (with overhauls) by Frame Relay. Transmission rates have expanded about whether and will keep on increasing. Around 1960 a 110 bit/s (bits for every second) line was ordinary on the edge of the WAN, while center connections of 56 Kbit/s to 64 Kbit/s were viewed as "quick". At this minute (2014) families are joined with the Internet with ADSL or link at velocities extending from 1 Mbit/s to 100 Mbit/s and the associations in the center of a WAN can run from 1 Gbit/s to 100 Gbit/s.


As of late with the multiplication of minimal effort of Internet network numerous organizations and associations have turned to VPN to interconnect their systems, making a WAN in that way. Organizations, for example, Citrix, Cisco, New Edge Networks and Check Point offer answers for make VPN systems. WAN is a system that blankets an expansive territory (i.e., any information transfers organize that connections crosswise over metropolitan, provincial, national or universal limits) utilizing rented telecom lines. Business and government substances use WANs to hand-off information among representatives, customers, purchasers, and suppliers from different land areas. Fundamentally, this mode of telecom permits a business to successfully complete its every day work paying little mind to area. The Internet could be viewed as a WAN too, and is utilized by organizations, governments, associations, and people for very nearly any reason imaginable.


For troubleshooting the problems with WLAN, you must first diagnose the problem through the troubleshooter which is embedded in the windows. Then have to chance the TCP/IP protocol.

WAN and VLAN are very important parts of network. So one must know about them all so that he can make sure that he knows what their function is and how they are troubleshooter.
