Using the Appropriate Networking Tools

Selecting a good network type and the good network device isn't it. One has to know about the networking tools too which are of very vital importance. Here are the networking tools which are commonly used these days;

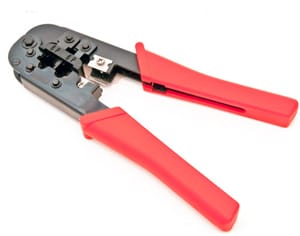

Crimper:

Crimpers are really important for the networking since they are one of the most commonly used and the useful tools. For any of the network professional, the pair of crimpers is the best thing since they are the best all-rounder tool. These are specially designed for connection the one end of the cable and the end of the wires, and then crimp them together or even to push them together. This thing works as if they do for the coaxial cables. One can use them on the twisted pair as well. There are the various kinds of the crew members for the various kinds of the network connections. The last thing that normally one would do is that once one runs the wire and has got the wires on both of the sides; they both are going to need some connectors over there. One can easily get some crimpers and can add some connects there. When the end of this cable is created, this process is pretty permanent. One can take those metal prongs which are located in the connectors and then can push them in the insulation and then, all the way to copper what is located in it. Also, one can tighten up the cables located in the connector so they would not fall accidently out at the end of the connection. If someone gets some closer look on the connector, then it would be found that there are some metal prongs which are inside them. These are pretty sharp as well. They are designed in the way that once one crimps them, the get pushed upwards and they get pushed into the cables. That then, happens inside the connector.



Multimeter:

Another thing which is very important tool for the networking is the Multimeter. This is the very important tool and it is a must have one. The Multimeter is specially designed to tell one about the voltage that is in the cable. Also, it gives the information about the resistance and the current that passes through the wire. So, one can also start to troubleshoot and can determine that which is actually happening inside the computer system. This thing is sometimes also referred as the VOM. This VOM stands for the Volt Ohm Meter. There are several kinds of the Multimeter which are out there in the market. Each of them has some specific characteristics which can be used easily and can benefit the user in some way. There are two of the Multimeter types which are used worldwide. One of them is the Analog Multimeter and the other one is the digital Multimeter. In some countries, these Multimeters have various price ranges and that range depends entirely on the sensitivity. Like, the Multimeter can be very cheap and it can cost like $10 but sometimes if the sensitivity Is the benchmark for the good Multimeter, then there can be 100 of dollars which would be spend on a single Multimeter. These tools are really easy to be used. There are two probes which are present there and then one has to make some settings on the Multimeter. Then the both probes can be put together inside a connection. So, one here can make the decision whether there is the continuity or not. One can also measure the voltage. One can also check out the resistance and many other things. But, one would have to be extremely careful while using the Multimeter and the probes. Normally, when someone uses the Multimeter, then one is that time, getting around the power sources. So, one should be extremely cautious and should know what is happening. The reason is that when the power is involved, one should not dare to mess around. If someone needs to check whether the voltage is correct which is in the wall connection, then one can make use of that Multimeter and hence he can determine the accurate amount of the voltage that is coming out of that outlet of wall. Also, it is clear that there is the power which is in big amount and is of direct current. So, when someone sets the Multimeter to the DC and then looks at the voltage that is coming out of the power supply. Or, one can also look at what the voltages are there on the battery and whether it is enough to maintain the power given to the CMOS. This Multimeter can also be used when that is outside the computer so that the continuity can be checked. Also, one can see if the cable there is working in some proper manner among the two ends and can also check the fuse to confirm that both of them are working fine and none of them has been blown yet.



Toner Probe:

One should be thinking about investing money in a toner probe if one has got so much of the network connections in the environment. This tool can help one by guiding him about where the wires are going. This is especially useful when the wire is actually going through the walls into some other room. There timer probes are very easy to use. One would be having the toner generator what would help one for the connecting to the wire. Also, sometimes, they contain the RJ45 and the RJ11 as well. Also, one can be having some alligator clips at both of the ends, so one can simple clip them up on some existing wire. Hence, then the tone would be sent through he wire. There is the part of the toner probe as well. It is known as the inductive probe. This probe has got some speaker on it. So, one can use it to listen and then tell if one is actually getting close towards the wire and maybe that wire contain some tone that is being generated by the tone generation device that is being used by one. It is an inductive; so, one would not have to touch the cooper wire physically. One would just have to get close enough. So, if one can go wire to wire with the inductive problem, then one would find that the tone would be getting louder and louder. And then, eventually, one would be finding the wires where the tone is actually going through.

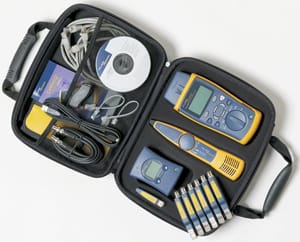

Cable Tester:

There is something else here as well. It is the cable tester. If someone has to deal with some advanced trouble shooting of the wires, then they might need something which is called the advanced cable tester. This would give someone too much different stats. The example of it is that they can provide someone a crosstalk which is near end. It also can help someone determine that how much interference is going to occur between the wires which are close to the transmission end or, the nearest end. There are some cross talks which are far end as well. They have the same type of information. But, they are measured as far as it is possible from the transmitter. One can also find some AXT, which is the alien crosstalk. This is the place where on gets the interference that are not emerging inside the cables that are being used by one. They actually have some other source hence they come from somewhere else. That's why they are called as the alien cables and if this thing happens, one can know it's the working of those alien cables. Also, there is some attenuation to the crosstalk ratio. It is also known as the ACR, it is actually the difference between the near end of the crosstalk and the insertion loss. Sometimes, this thing is also known s the signals to the nice ration. So, one can determine easily that how effectively this wire has been working.



Loopback Plug:

This instrument is especially useful when one is testing the network connection or some piece of equipment. These plugs can become useful if there are some applications which would need to think that it is present on the network. But, one at that time, might not be connected to the internet. Most of the time, people sue the loopback plug connection for the network connections. One should be having the Ethernet cable then. One also has the T1 wide area and it might be the fiber connection. Also, one might need to actually loopback that piece of information so it can leave some piece of equipment and it can comeback right into that equipment again. One should keep one thing in mind, that those cables are never the cross over ones. These cross over cables are especially designed for the Ethernet so that it can connect the two of the devices all together. A loopback plug doesnt do anywhere. It just sends the information outside the device and then turns it around here. Before the other device can be hit by it, and hence comes back in the right same way. This is the way through which someone there is able to send some information on the port, and can receive information on the very same port. One does really get a loopback unless and until one actually runs into omen busty big problem. That problem can't be trouble-shooed in anyway. Some of the people don't even have any of the loopback plugs. So, whenever it comes to the heavy troubleshooting, then they become scrabbled around and try to find some new one. One would, normally need it for all the things that one have. Like, if someone has the procession of fiber, if someone has for some Ethernet connections, if T1 connections are present there and then one would need to have some really right and good kind of the loopback plug for the correct kind of the connection. Also, one doesn't just have to go out and buy the Ethernet cable that is available in the market. One can make some customer Ethernet cable as well. There are many websites available out there who have such abilities to make the customized Ethernet cables. One can make the customizations like a cross over modem, a modem or maybe a cisco console and that can be sued in only one set of the adaptors. They also look very efficient and they work really well. This way, one would also be having some Ethernet cross cover cable and an Ethernet cable with the loopback with one all of the time.



Punch down Tool:

If one is working with the wires within one's own infrastructure, one would like using the punch down. It can fasten all those wires in only one, single block. At this pointy, one can use that block to connect the wires in cross connection and that might also lead to somewhere else. This can be, sometime, very quickly ending process. The reason behind this is that one would be going through some all of the single wire. Sometimes, one would also find himself a punch down tools which would do many of the wires at one single time. That is done to make the process become shorter. But still, one can find many of the wires in one's organization. This tool is very efficient one. When the wires are punched down, they do not just get connected itself into the punh down block. Also, it gets itself trimmed off. So, one cane easily gets rid of the excess wires here and can use only one force. Hence, one can have the access to the very short connectors which become broken in the outsides of the cables. Hence, they can touch that copper inside. This process is pretty similar to placing the standard modular connectors in the cable that can be plugged into the computer. But, one would be placing those connections on the punch down block instead of making them go into the modem connector.



So now one can learn that how many types of the networking tools are out there which can actually help someone out with the wiring, specially. Many of the tools are available in various versions and some of them can actually help someone in some great regard since they contain some really amazing abilities to twist the multiple wires at single time.
